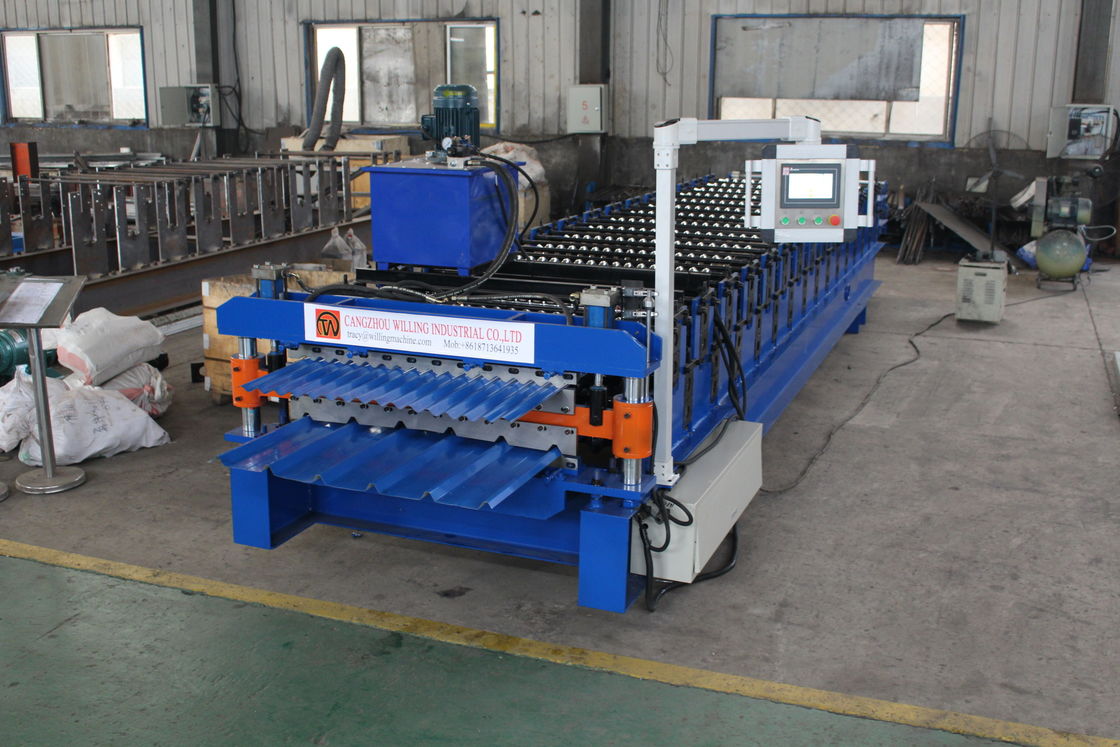

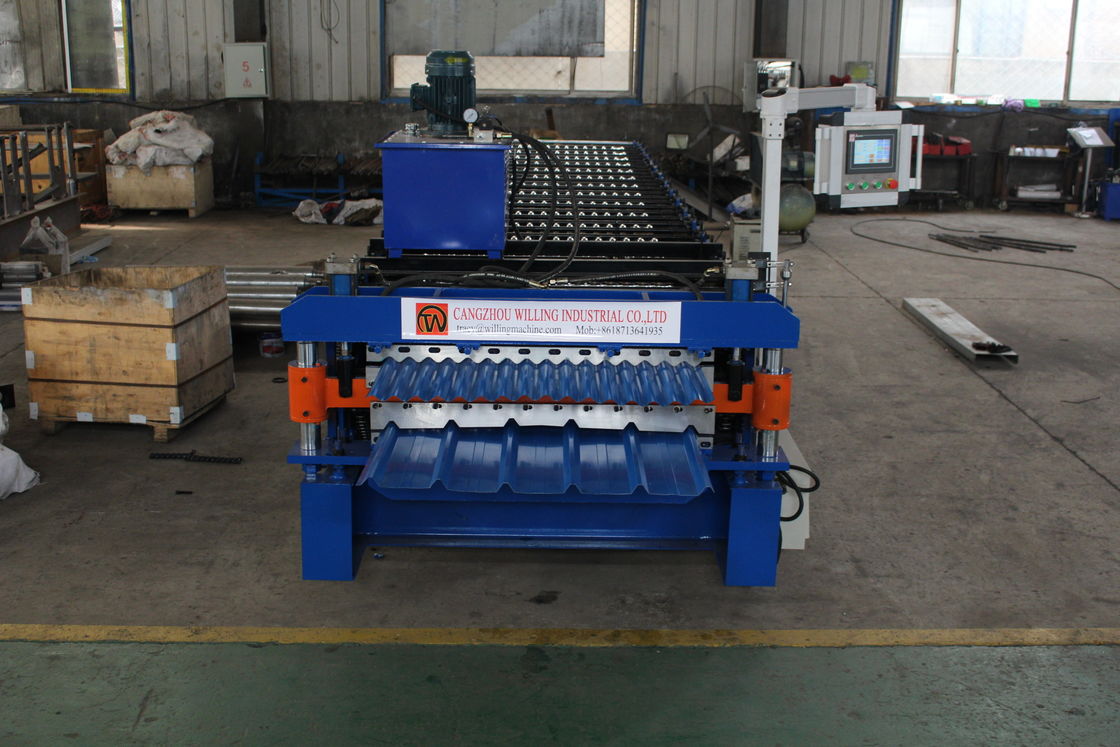

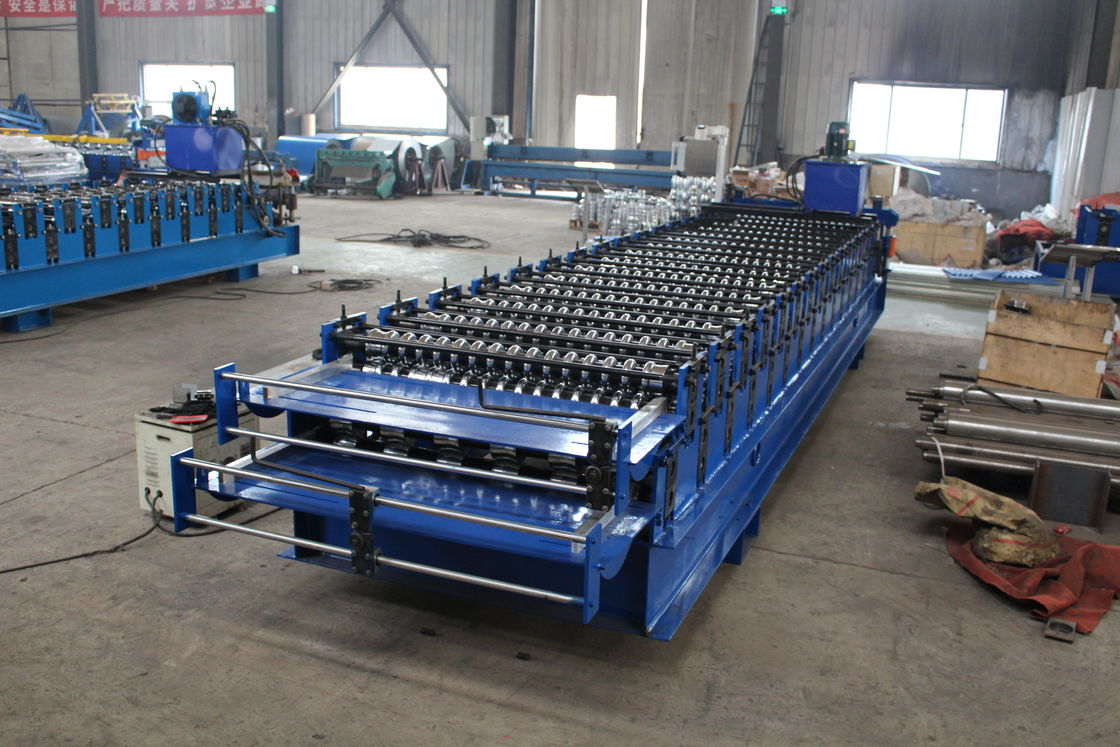

Hydraulic Cutting Galvanized Double Layer Forming Machine IBR And Wave
The Hydraulic shearing double-layer rolling forming machine can make two types of plates. The utility model has the advantages of small floor area, space saving, and automatic control by PLC. However, only one type of sheet can be produced during operation, which is equivalent to two single sheet computers
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.25-0.8mm |
| 3 | Working Speed | 15-20/min |
| 4 | Roller Station | 18/16 Raws |
| 5 |
Dimension (L*W*H) |
8500 mm*1200 mm*1200 mm |
| 6 | Machine Weight | 4800 KG |
| 7 |
Electrical Control System |
Panasonic PLC |
| 8 |
Drive Motor Power |
3 KW |
| 9 |
Electric Shearing Power |
3 KW |
| 10 |
Power Supply |
380V/60HZ/3 PH |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
70 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
It can produce various of steel roof and wall panel, it is a new building materials ,the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period , beauty, light weight but high strength.
Advantage
Our machines can uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate.Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable,maintenance-free.We can make and design will kinds of roll forming machine according to customer's request.
