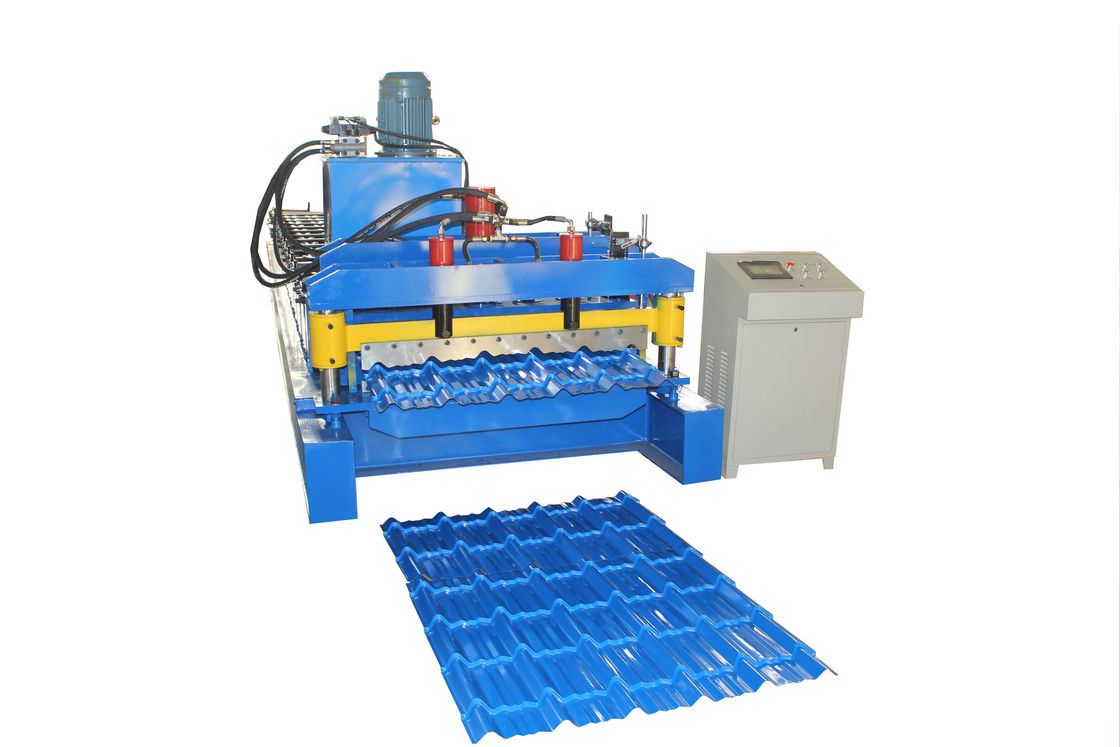

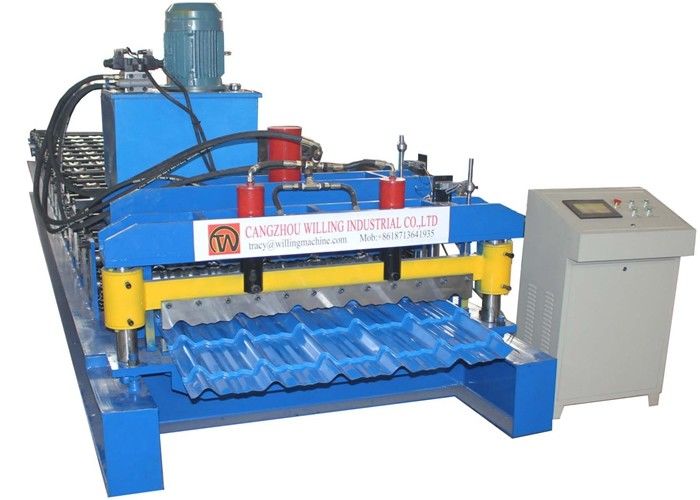

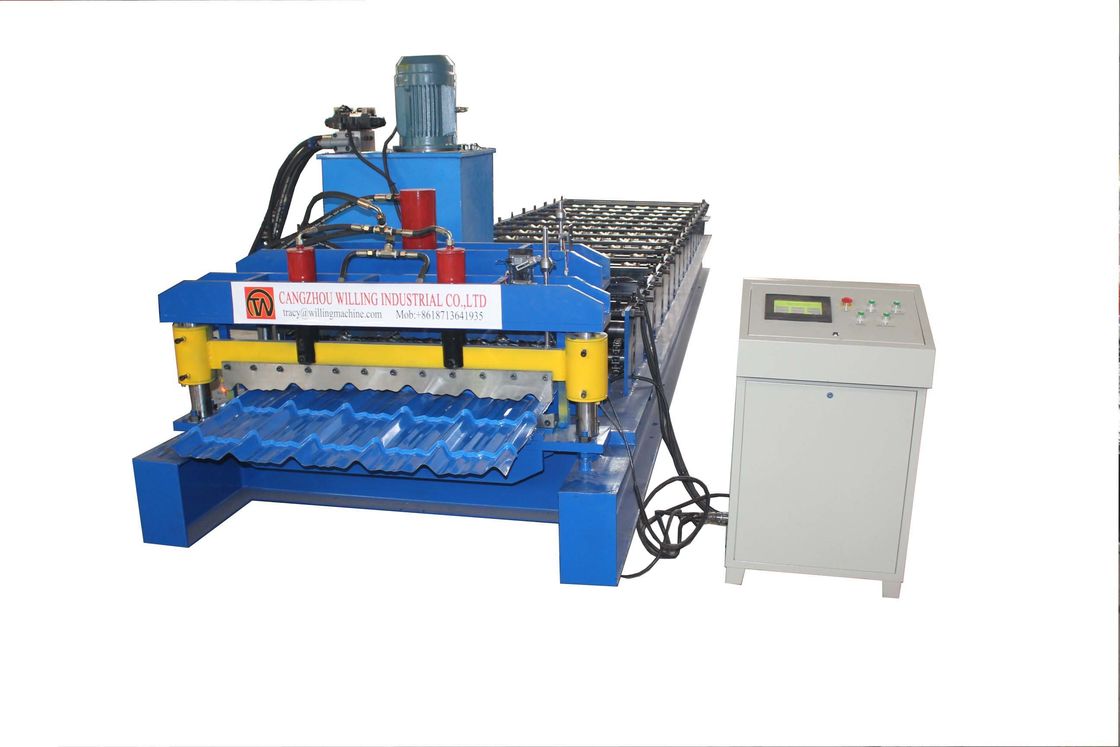

Full Automatic Roof Sheet Glazed Tiles Roll Forming Machine Steptile Type
The whole line working speed is about 2-5m/min.,max working speed could be 5 meters per minute.Feeding material width should be confirmed before machine design .the width are changeable,Material thickness normal range are 0.3-0.8mm.if you have any special request on material thickness,we should discuss in advance .
|
Suitable material
|
Strip steel
|
|
Working speed
|
0- 3 m/min
|
|
Main motor power
|
7.5 kw
|
|
Hydraulic station power
|
4 kw
|
|
Thickness of material
|
0.3-0.8 mm
|
|
Roller station
|
16 stations
|
|
Driving mode
|
Chain
|
|
Electric tension
|
380 V /3 phase/ 50 HZ
|
|
Material of roller
|
45# forged steel
|
|
Material of cutting
|
Cr12
|
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
