उत्पत्ति के प्लेस:
चीन
ब्रांड नाम:
FMS
प्रमाणन:
CE,ISO
मॉडल संख्या:
840-850
वीडियो
वीडियो
वीडियो
वीडियो

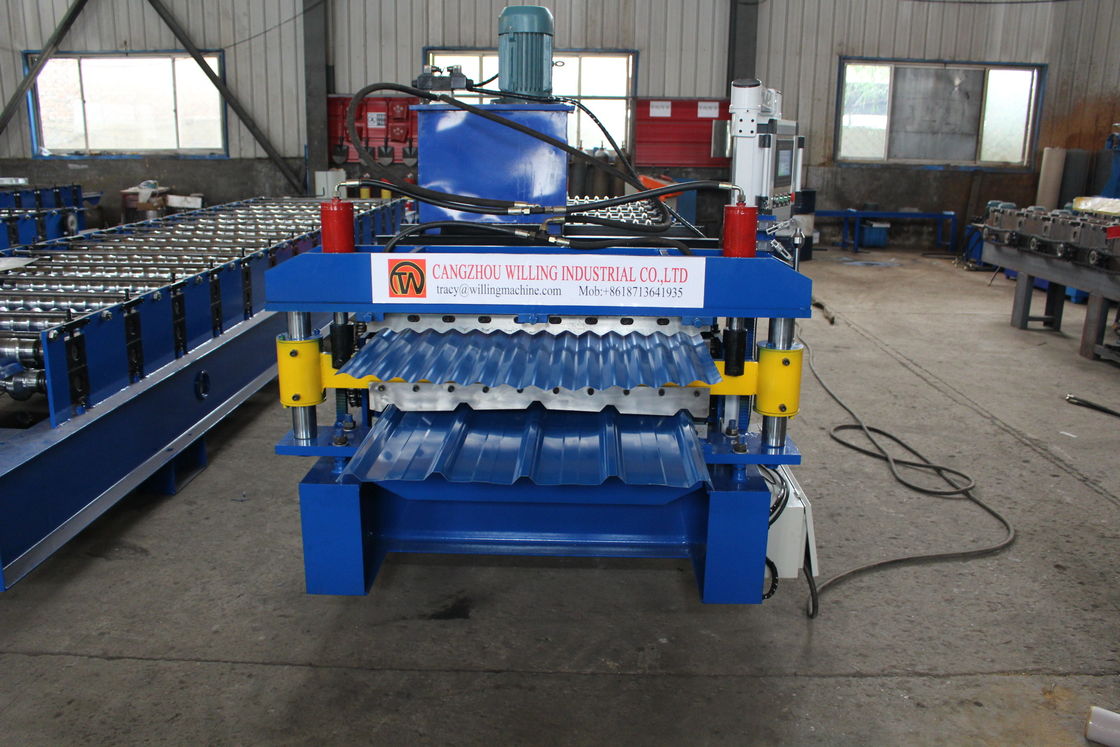

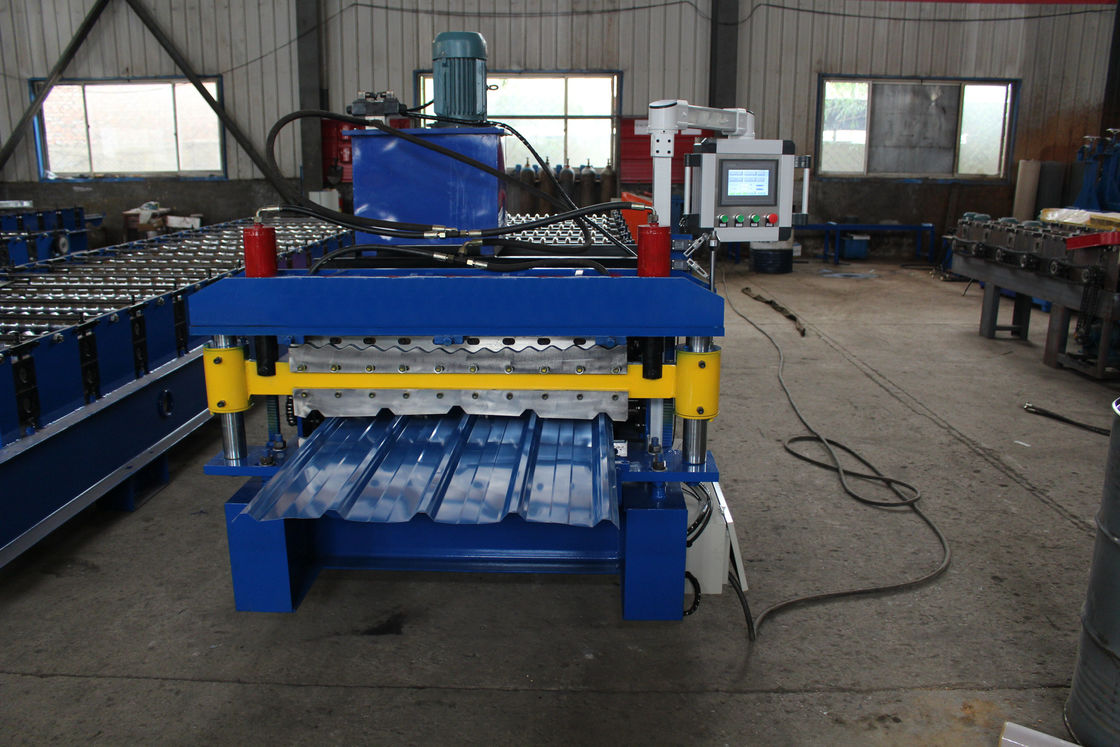

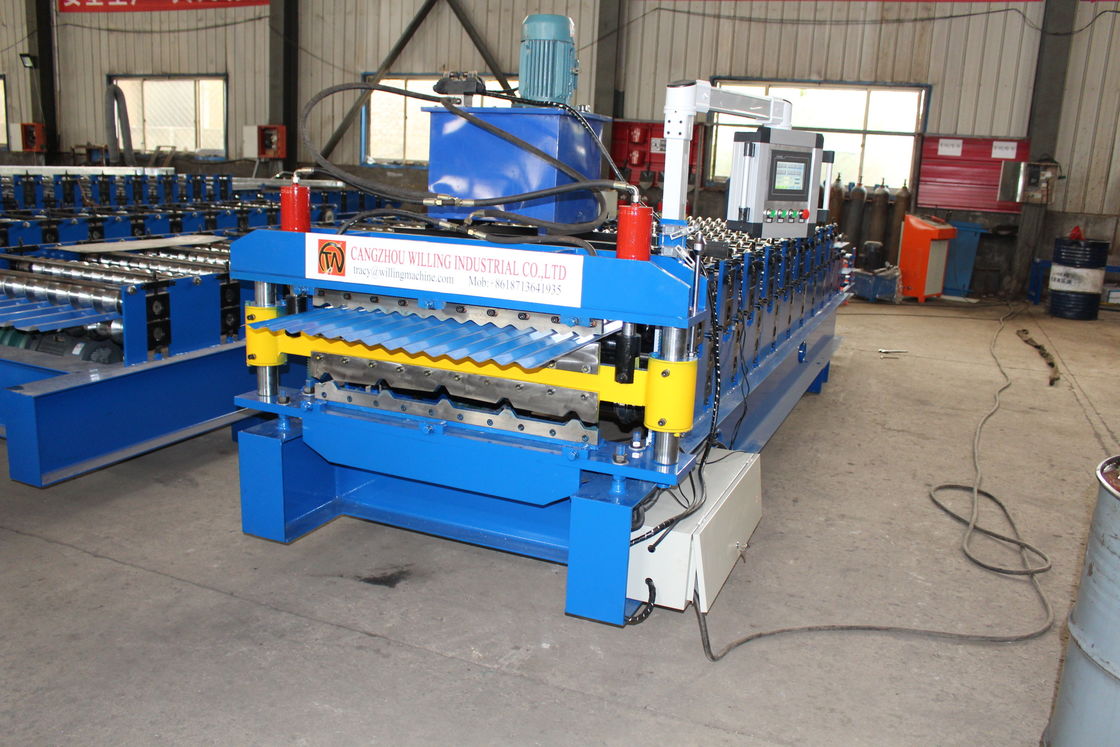

840/850 double layer roll forming machine for roof sheet, floor deck sheet
The double layer tile machine equipment uses PLC and uses the electrical control system displayed by a text screen. It is easy to operate, easy to use the double layer tile machine equipment to use high -level automatic control software. To achieve production information management, the entire unit automation control system adopts high integration networks. Make the automation system's performance better. The color steel tile equipment also has the advantages of operation, maintenance, maintenance, and mechanical debugging, and easy mold replacement.
Equipment Detailed Parameters:
|
1 |
Suitable Material | PPGI (235Mpa) |
|
2 |
Width of the raw material | 1000mm |
| 3 | Rows of rollers | 9 rows & 11 rows |
| 4 | Dimension | 6500*1550*1200mm |
| 5 |
Main servo |
7.5kw |
| 6 | Hydraulic station power | 11kw |
| 7 | Thickness of raw material | 0.25-0.8mm |
|
8 |
Productivity |
8-15m/min |
| 9 | Diameter of shaft | ￠75mm |
|
10 |
Voltage | 380V 50Hz 3phases |
| 11 | Frame | 350H steel |
| 112 | Middle plate | 16mm |
Application
Color steel tile all -steel structure factories, wooden driving beam factories, villa -style color steel plates connected to colorful steel plate ceiling, top floors, large span plants, and light steel structure sheds.
Advantage
