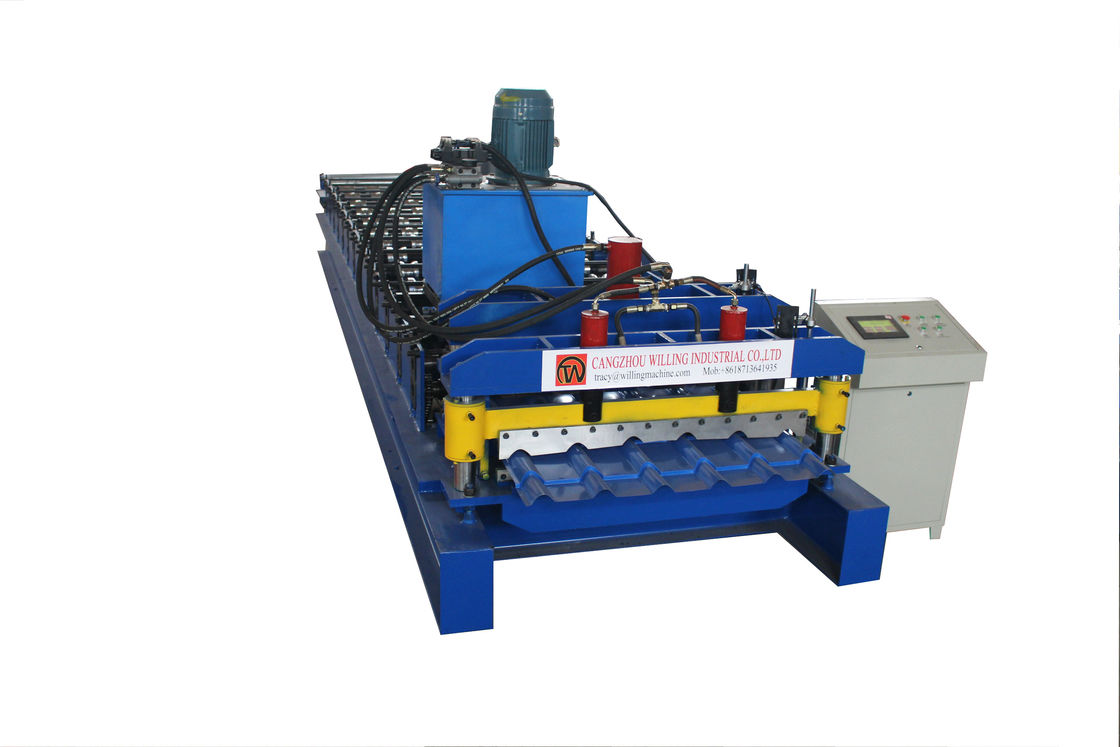

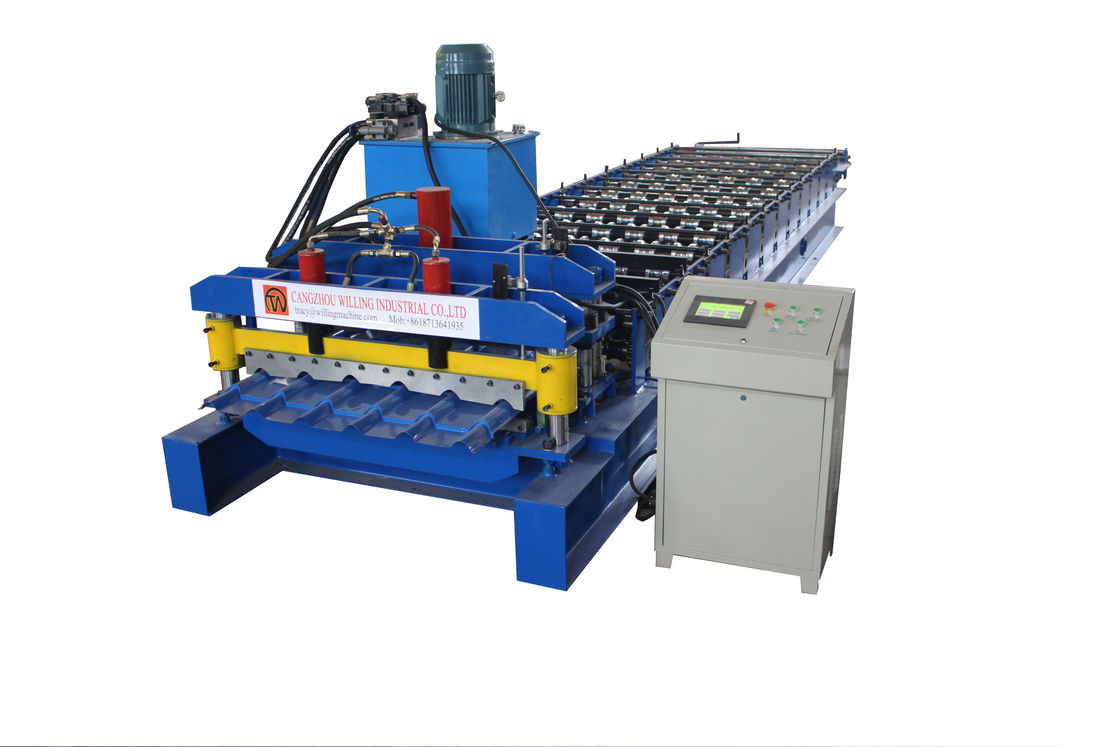

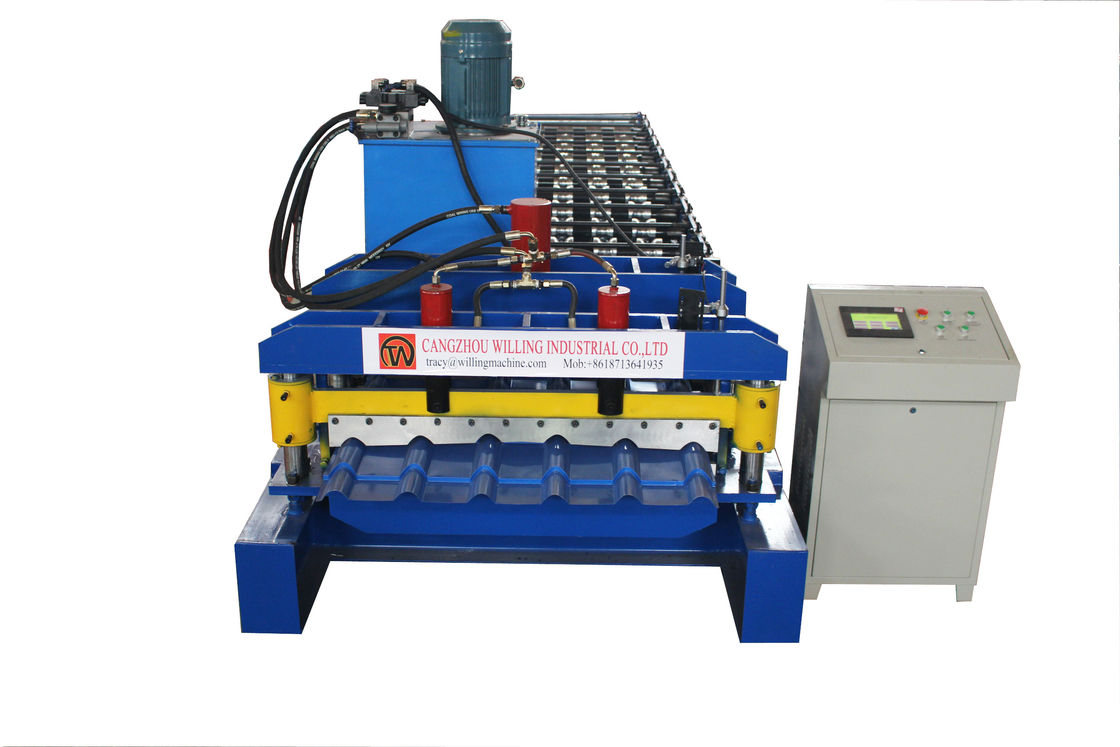

PLC Control Color Steel Glazed Tile Roll Forming Machine Step Tile Type
Color steel glazed tiles are new types of building materials. They use color steel plates as substrates for special processing and special paint. They are rich in color and classic and elegant. Its self -heavy, high intensity, good waterproof, easy to install and fast, can be widely used in villa roofs, urban flat -slopes, tourist scenic areas, etc.
| Coil required | Material | PPGI GI AL |
| Width | as per requested | |
| Thickness | 0.3-0.7mm , as custom order | |
Power required |
Power | 380V 50Hz 3 Phase , as custom order |
| Main Motor | 5.5KW Siemens Brand | |
| Cutting Motor | 4KW Siemens | |
Machine |
Support Frame | 350H |
| Forming Station | 14 rows as profile | |
| Structure | 8-15 mm | |
| Shaft | 75mm | |
| Roller | 45# Steel with heat treatment | |
| Chains | 1.2 inch | |
| Bearings | Standard as custom order | |
| Speed | 15-30m/min | |
| Electric Components | Delta and Siemens | |
| Size | 7.5*1.3*1.6M | |
| Weight | 4T |
Application
The sound absorption and noise reduction function, its heating resistance is very good, the subtle independent air bubble structure can effectively reduce the energy exchange caused by air to flow to the flow of air, which is both defensive and exposed. The environment of the environment is also very good. It is a semi -hard foam, and it does not lose its original performance after being strongly impacted. In addition, it also has the performance of tasteless, non -toxic, drug resistance, oil resistance, acid resistance, halogen resistance and other chemicals, and is very easy to process; strong heat resistance, good extension performance, color steel glass tiles also have tasteless non -toxic toxicity , Drug resistance, oil -resistant, acid resistance, halogen resistance and other chemicals, and are very easy to process. It is widely used in the field of buildings and civil engineering. Leakage and anti -corrosion materials; simple construction, the fastest paving speed, and the lowest construction cost.
