उत्पत्ति के प्लेस:
चीन
ब्रांड नाम:
FMS
प्रमाणन:
CE,ISO
मॉडल संख्या:
सी शहतीर
वीडियो
वीडियो
वीडियो
वीडियो

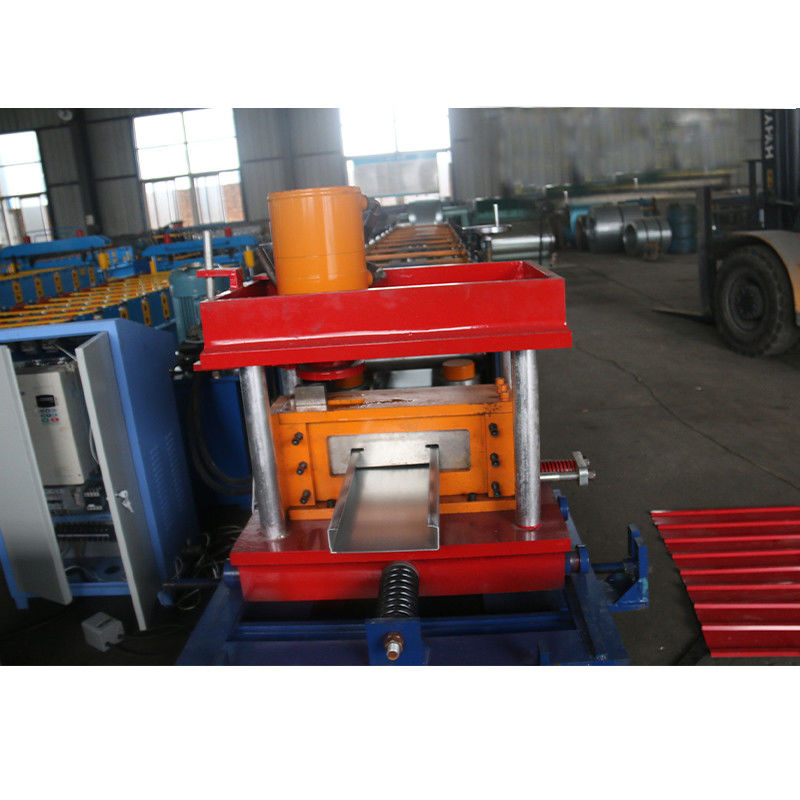

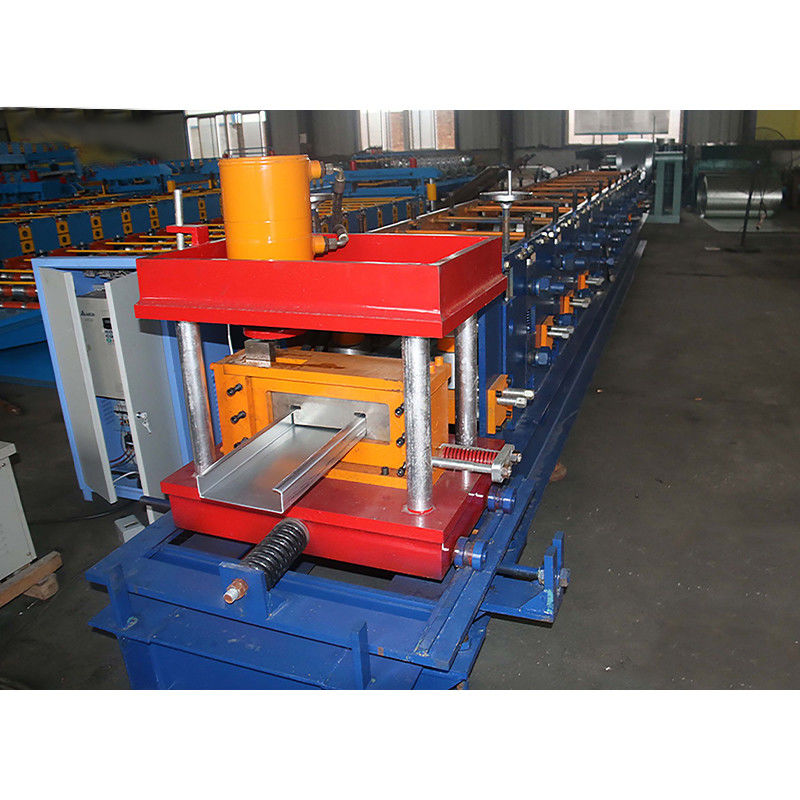

Hydrulic Driving C Purlin Roll Forming Machine with Cr12Mov cutter

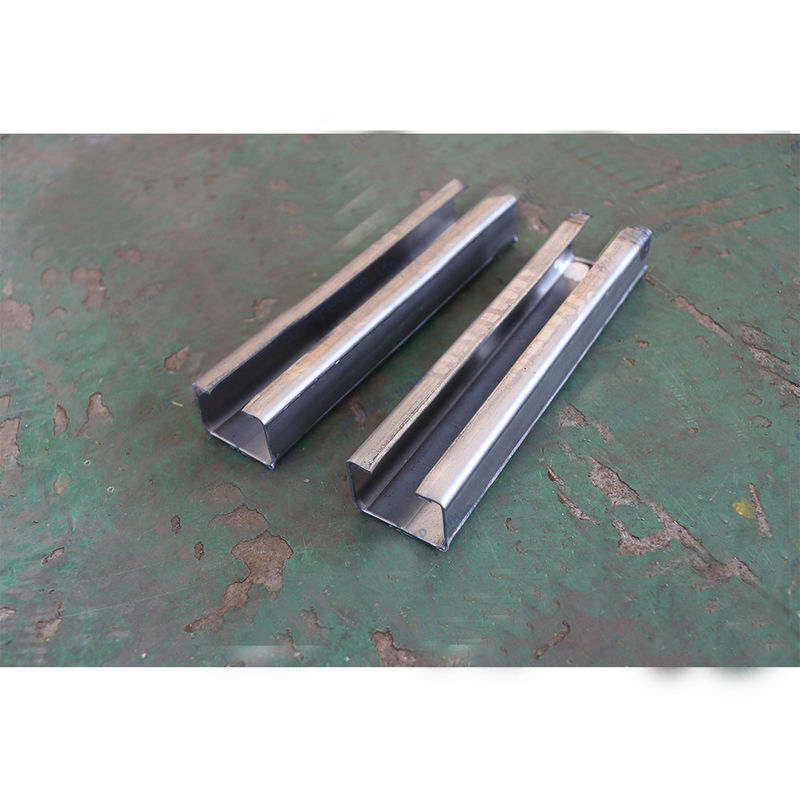

Type C galvanized bars use galvanized steel plates. The roller is cooled bending. You can automatically complete the molding process according to the given sizes. It is suitable for industrial and civilian buildings, warehouses, special buildings, large -span steel structured roofs, wall surfaces, and internal and external wall decorations. It has light quality, high -strength, rich color, convenient construction, earthquake resistance, fire prevention, rainproof, life span The characteristics of long, exempt maintenance, have been widely promoted and applied to the color steel encirclement building system
specifications
|
Raw material
|
Steel Coil gi ppgi
|
|
Control system
|
PLC(imported Brand)
|
|
Punching
|
Roller Station
|
|
main motor
|
15kw
|
|
Weight
|
8 t
|
|
main shaft diameter
|
80mm
|
|
material thickness
|
1.2-2.5mm
|
|
Warranty of core components
|
1.5 years
|
Advantage
1 It produces different purlin machines that automatically change rollers or spacers.
2. No need to change cutters for different sizes
3. Low maintenance costs, easy to operate.
Infinite sizing (any size within the machine range), helps save materials
A punch hole can be made at any position on the web side and flange side of the purlin.
