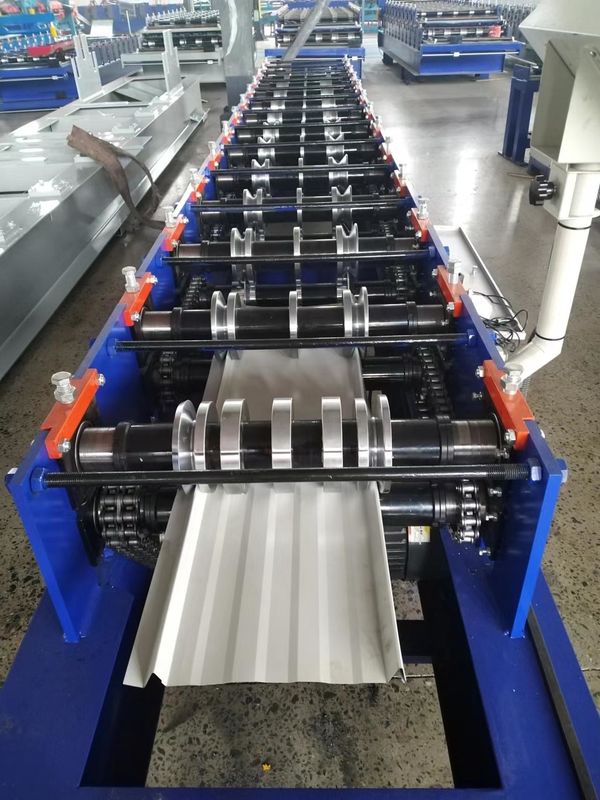

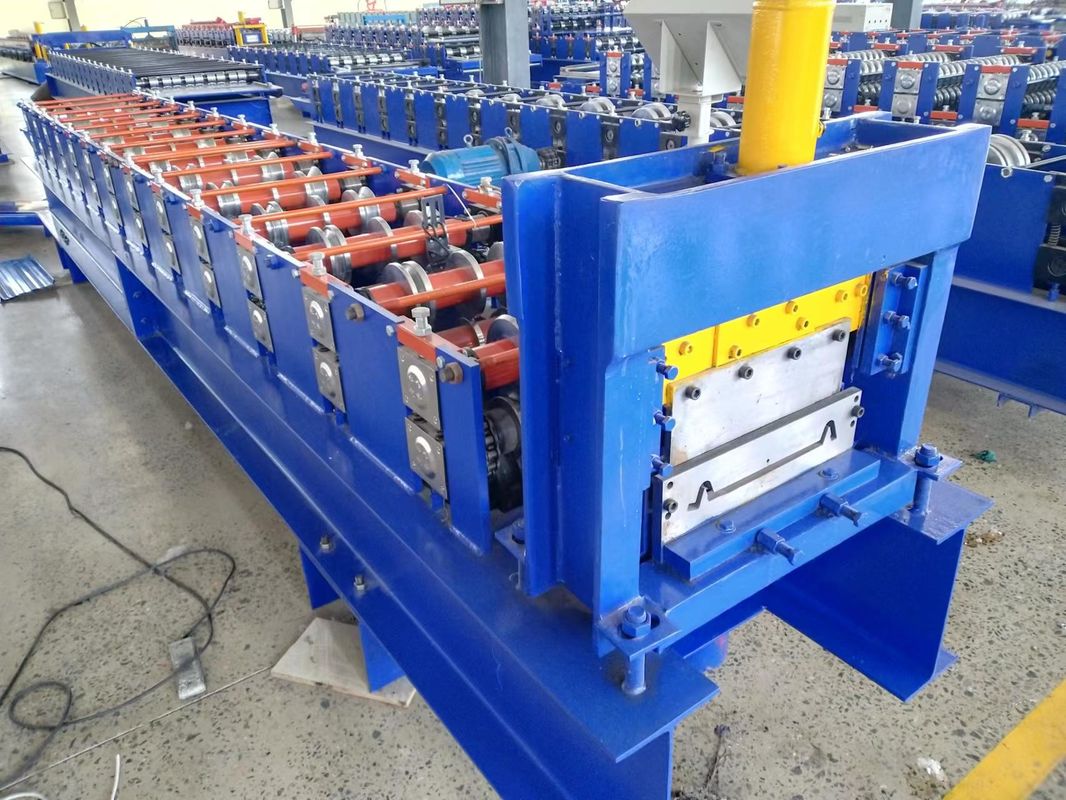

Selflock Roof Panel Roll Forming Machine PLC Control Hydraulic cutting
selflocking machine that produces concealed fastener roofs, which are aesthetically pleasing and popular in both residential and commercial settings. Roofing Roll Forming Machines are specially designed with rollers and shearing dies. Our company has produced a wide variety of Standing Seam Panel Roll Forming Machines, two of the most common types are Mechanical Seam Panels (including crimping tools) and Locking Seam Panels (Snap Lock - the seams are locked by a simple snap). The following crimping tools are available: Electric Seamer (can run forward and backward)
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.3-0.8mm |
| 3 | Working Speed | 15-20/min |
| 4 | Roller Station | 12 Raws |
| 5 | Dimension (L*W*H) | 5500 mm*800 mm*1200 mm |
| 6 | Machine Weight | 2500 KG |
| 7 | Electrical Control System | PLC |
| 8 | Drive Motor Power | 3 KW |
| 9 | Hydraulic Station Power | 3 KW |
| 10 | Power Supply | 380V/60HZ/3 PH |
| 11 | Cutting Accuracy | ±2 mm |
| 12 | Driving Mode | Single Chain 1 inch |
| 13 | Material of Shaft | 70 mm 45#steel forged |
| 14 | Material of Roller | 45# Steel Finish Machining, Plated Hard |
Application
selflock color steel has been specially processed, with strong anti -external power capacity, beautiful and solid external nature, and it is more appropriate to make wall panels and layers. By adjusting the freedom side, it can also be completely separated by rain.
Payment terms
40% in advance as advance payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port or CNF
The Delivery Time: 30 days after the down payment is received.
