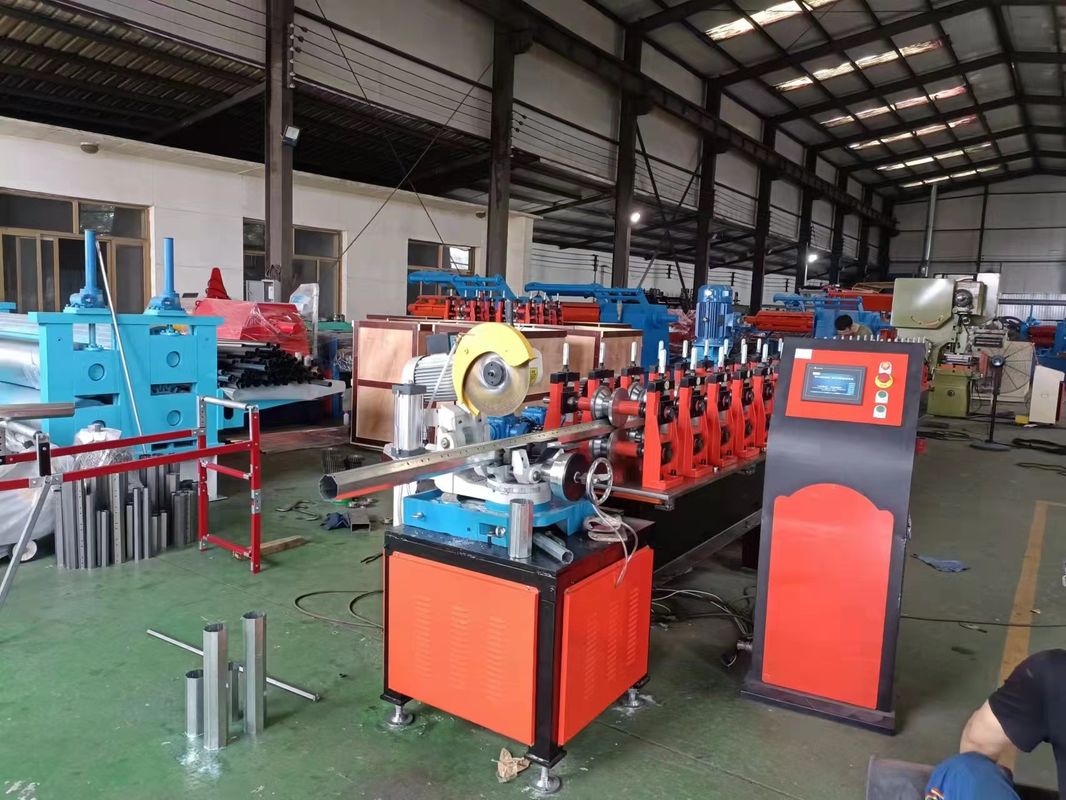

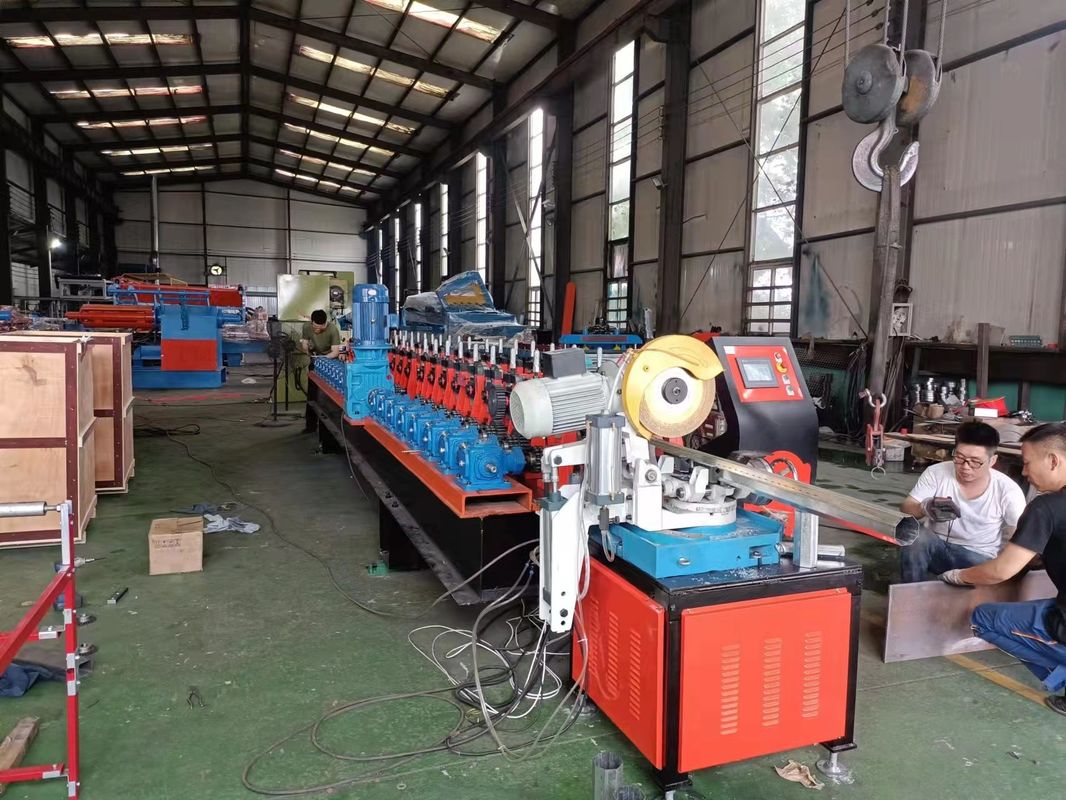

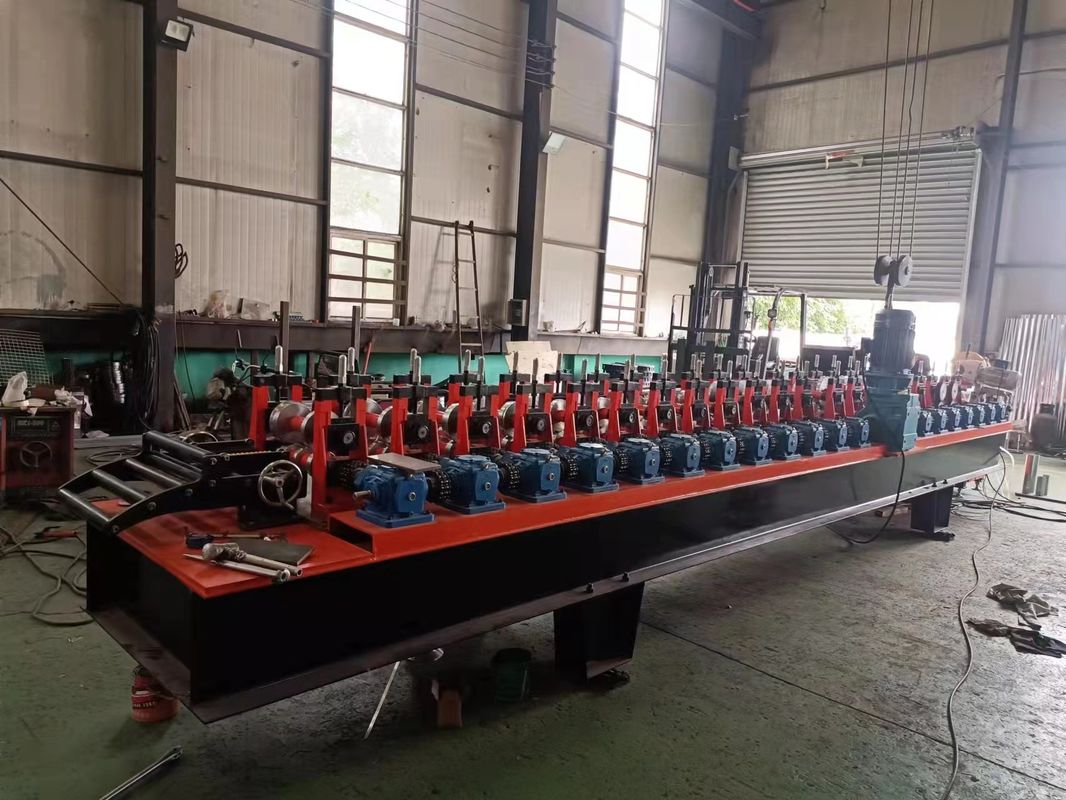

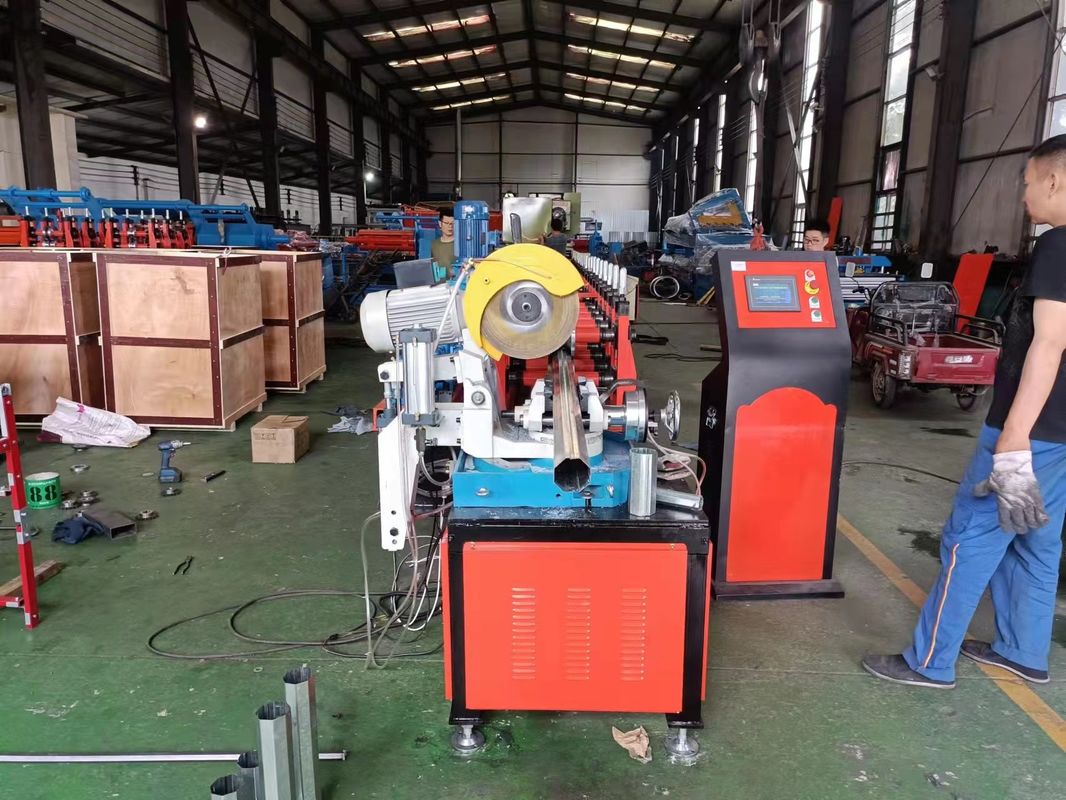

Galvanized Steel Octagonal Tube Stud And Track Roll Forming Machine
The octagonal pipe production line is one of the components of rolling door equipment. It is used to collect the "octagonal tube" scroll of rolling door leaves and rolling door panels. It should be used in supermarkets, shops, private residential garages, warehouses, factory buildings and other rolling door.
Specification
|
Galvanized Steel Octagonal Tube Stud And Track Roll Forming Machine
|
|
|
Metal material thickness
|
0.3 - 0.6mm
|
|
Metal material width
|
235mm or as client require
|
|
Roller Stage
|
22 forming rows
|
|
Roller Material
|
Gcr15 steel with chromium plate
|
|
Diameter of shaft
|
Φ70mm
|
|
Material of cutting blade
|
Cr12Mov, Quenched treatment 58℃-60℃
|
|
Main Structure of the Machine
|
350H Steel
|
|
Side Panel of Machine
|
25mm
|
|
Cutting Type
|
No Stop Sawing Cutting
|
|
Motor power
|
5.5 kw
|
|
Hydraulic power
|
4 kw
|
|
Productivity
|
15-20 meters per minute
|
|
Plc control system
|
Delta or as customer require
|
Guarantee
In correct operation and maintenance, the machines are 12 months quality guarantee from time of loading, life guarantee repair; within quality guarantee period, except for failures caused by human error, spare parts will be provided freely; after the quality guarantee period, only charge the cost of the spare parts. Free technical supporting and maintenance consulting in lifetime.
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB or CNF
The Delivery Time: 30-40 days after the down payment is received.
