उत्पत्ति के प्लेस:
चीन
ब्रांड नाम:
FMS
प्रमाणन:
CE,ISO
मॉडल संख्या:
900
वीडियो
वीडियो
वीडियो

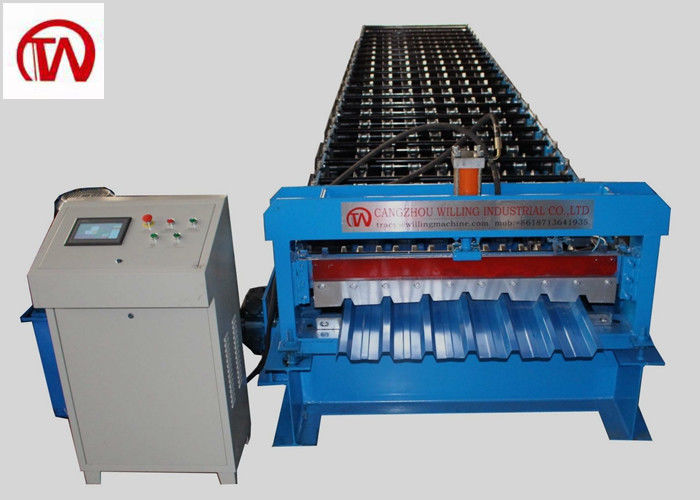

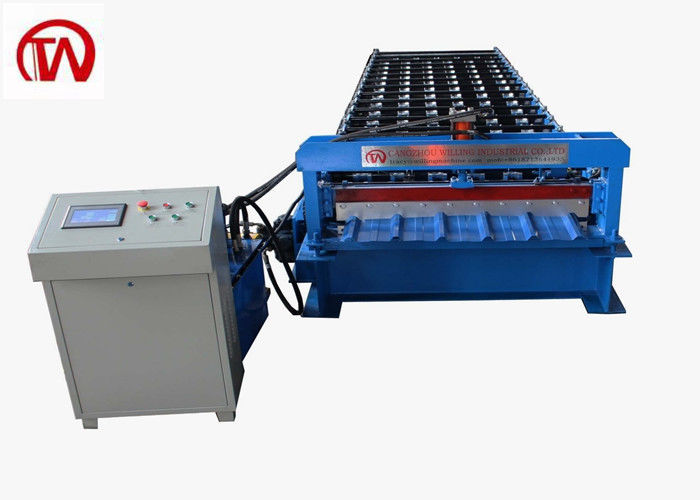

Full Automatic 7 Ribs High Capacityroll Formg Machine 900 Long Span

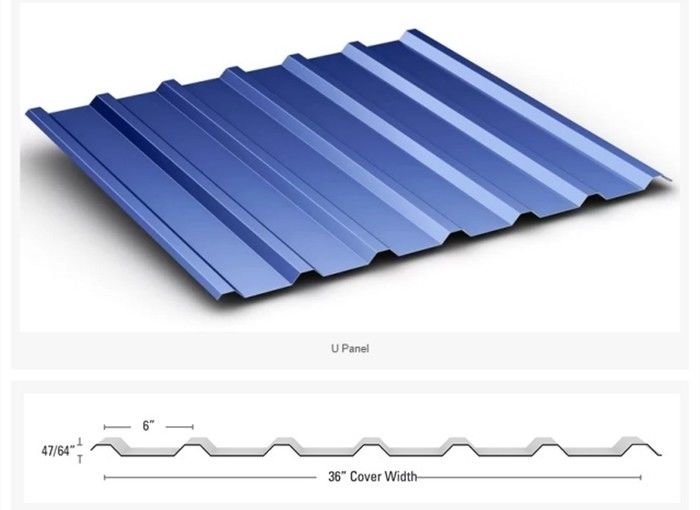

7 ribs Trapezoidal sheet machine roof sheet roll forming machine,market is mainly producing steel roof/ wall sheet .The final products have two types,corrugated sheet and trapezoidal sheet.As we know, steel roof/ wall sheet is widely used in large span factory building, warehouse, office buildings, villas, roof, cold storage, air purification room, stores, kiosks, and temporary housing.
| No. | Full Automatic 7 Ribs High Capacityroll Formg Machine 900 Long Span | |
| 1 | Suitable to process | Al,Colored Steel plate |
| 2 | Width of the plate |
1220mm/1450mm |
| 3 |
Rollers
|
22 station |
| 4 |
Dimension(l*w*h)
|
8200mm(L)*1550mm(W)*1150mm(H) |
| 5 | Power | 7.5kw |
| 6 | Thickness of the plate | 0.2-0.8mm |
| 7 | Productivity | 8~15m/min |
| 8 | Diameter of the roller | ￠70mm |
| 9 | Voltage | 380V 50Hz 3phases |
