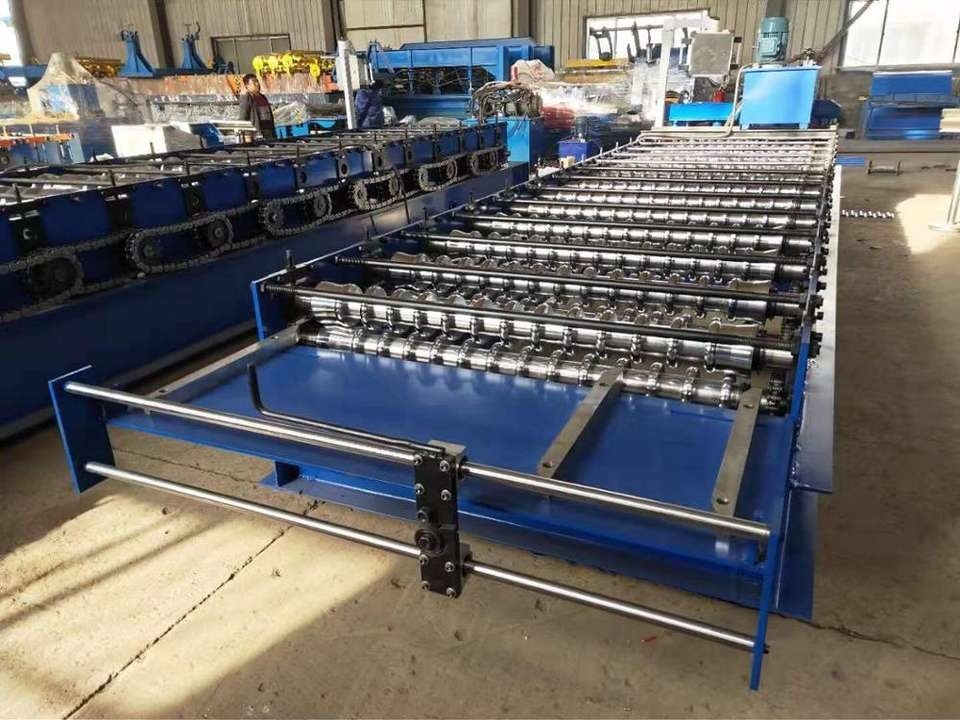

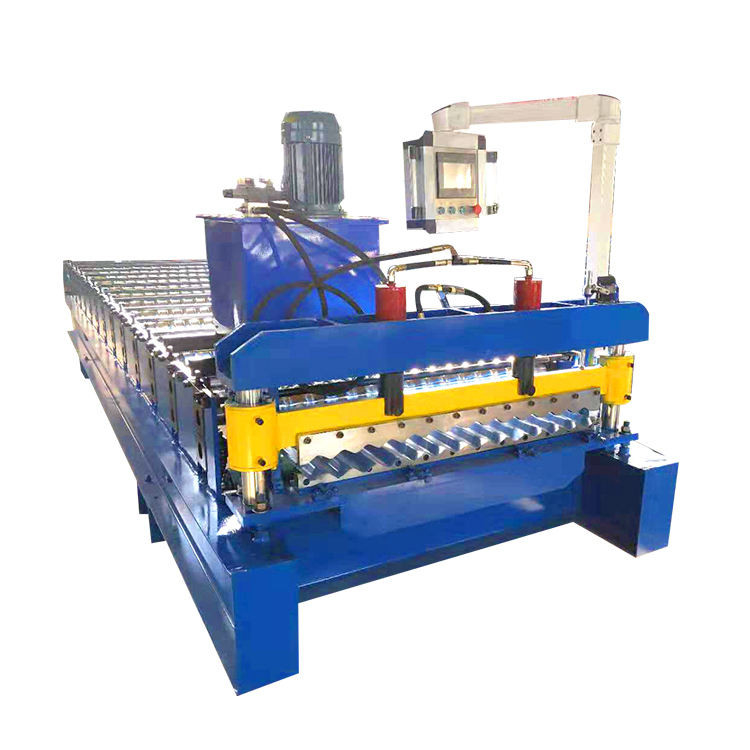

High Quality Corrugated Roof Roll Forming Machine Cold Roll Forming Machine
As a production base of cold roll forming machines with a long history, we have cooperated with a number of production plants and related enterprises to focus on the design, development, and production of cold-formed machines. All products meet international quality standards and are highly evaluated in different markets around the world, including Asia, Africa, Europe, South America, Oceania and more.
Packing and shipping
Specification
| 1 | Suitable to process | color steel |
| 2 | Effective width | 850mm |
| 3 | Feeding width | 1000mm |
| 4 | Rollers | 11rows |
| 5 | Diameter of roller | 70mm |
| 6 | Thickness of steel | 0.3-0.8mm |
| 7 | Motor power | 4kw |
| 8 | Pump power | 4kw |
| 9 | Working speed | 8-12m/min |
| 10 | Material of cutting knives | Cr12 quenching |
| 11 | Material of roller | 45# steel quenching |
| 12 | Main frame | 300H steel |
| 13 | Voltage | as customer's requirement |
| 14 | Weight | about 3.5T |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
