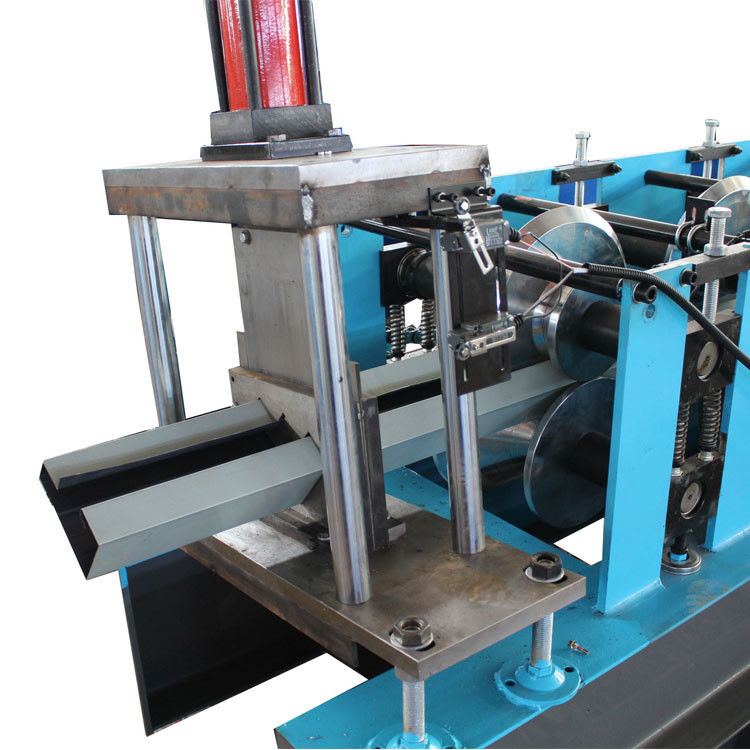

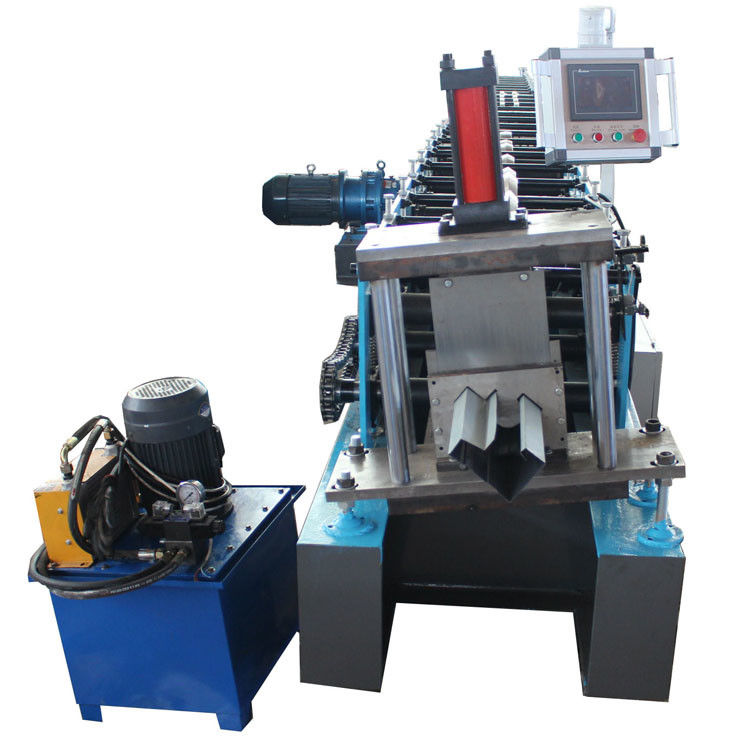

Customized Exquisite Metal Door Frame Making Machine Steel Door Frame Making Machine
Customized Exquisite Metal Door Frame Making Machine Steel Door Frame Making Machine.It can produce a structural doorframe, fire door and clean panel, doorframe roll forming line of KINDUS can automatically control according to the width of product.
Moreover, the positioning of punching is easy, regardless of a various size of fire door, inner or exterior plate.
Especially, it sequentially process inner and exterior plate, and can lead to following process.
So, fire door manufacturing process can be done continuously and then, it is not only improving productivity significantly but also the cost reduction enables to minimize of subsidiary equipment and space.
Specification
| Doorframe And Fire Door Roll Forming Machine Doorframe Roll Forming Line | |
| raw material | PPGI PPGL GI GL |
| Rolling thinckness | 0.8-1.2mm |
| Shaft material | 45# steel,bearing steel outer diameter 85mm |
| Main motor power | 5.5kw |
| Forming speed | 25m/min |
| Voltage | 380v,50hz |
| Cutting | hydraulic cutting after roll forming |
| Weight | 5400 kg |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
