Full Automatic Downspout Pipe Roll Forming Machine Down Pipe Making Machine

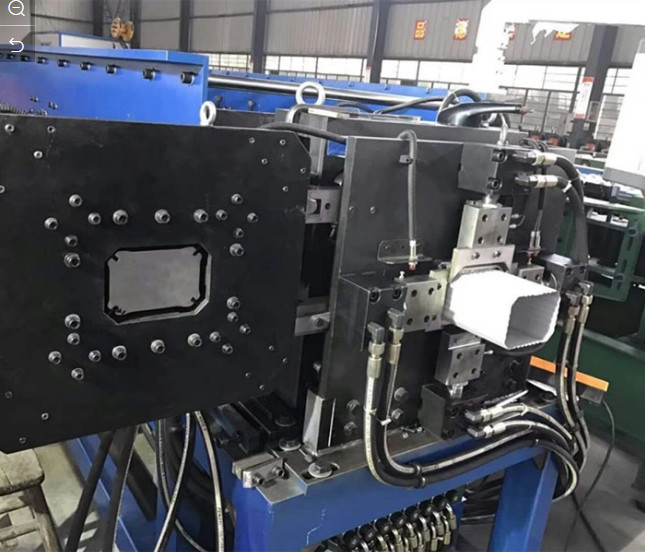

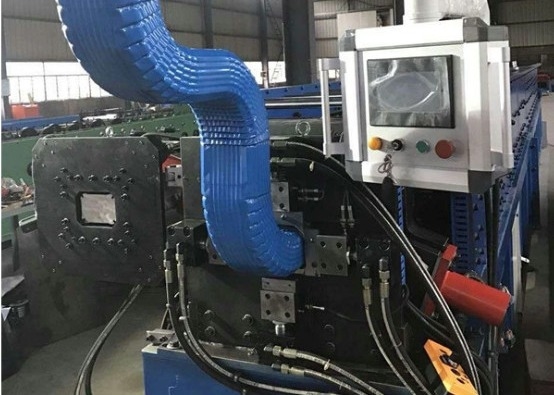

Cangzhou FMS Roll Forming Machinery Co., Ltd. is a professional manufacturer engaged in research, development, production, sale and service of roll forming machine. Down Pipe Roll Forming Machine For High Qualitynew Design Square Pipe Making Machine downspout roll forming machine/ Water down pipe,whole line consist manual decoiler,main forming machine,control box,hydraulic pump and run out table.
Specification
| Full Automatic Downspout Pipe Roll Forming Machine Down Pipe Making Machine | ||
| 3 | Thickness of the plate | 0.5-0.8mm |
| 4 | De-coiler | Manual one, can load 3 tons raw material |
| 5 | Rollers for forming | 19 rows |
| 6 | Diameter of the roller | Φ60mm |
| 7 | Rolling material | Carbon Steel no. 45 |
| 8 | Main motor power | 5.5kw |
| 9 | Productivity | 8-10m/min |
| 10 | Cutting method | mold cutting |
| 11 | Material of the cutting blade | Cr12 |
| 12 | Hydraulic cutting power | 3kw |
| 13 | Processing precision | Within 2.00mm |
| 14 | Control system |
Panasonic PLC control |
| 15 | Main structure of the machine | 300 H steel |
| 16 | Weight | About 7.5T |
| 17 | Dimensions | 17*1.2*1.4m |
| 18 | Voltage | 380V 50Hz 3phases(changeable as needs) |
Installation
During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.
Guarantee
The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).
Payment terms
40% in advance
60% is paid before shipping
