उत्पत्ति के प्लेस:
चीन
ब्रांड नाम:
cangzhou fms
प्रमाणन:
CE,ISO
वीडियो
वीडियो

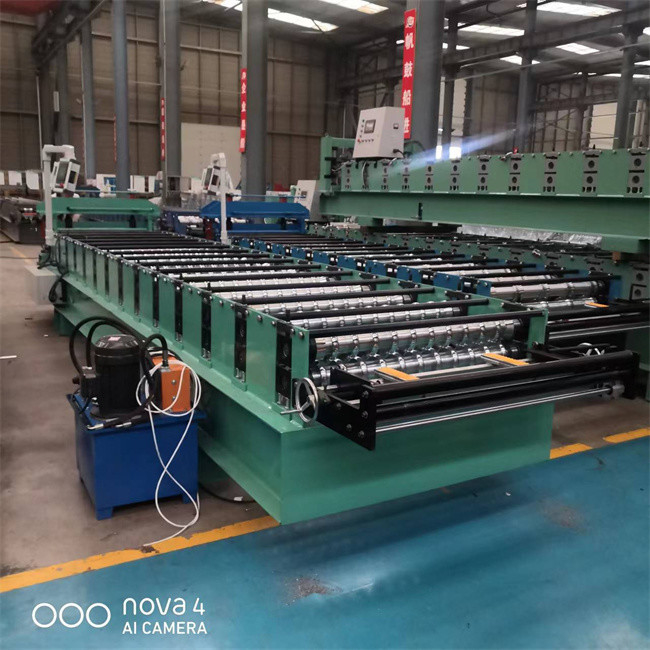

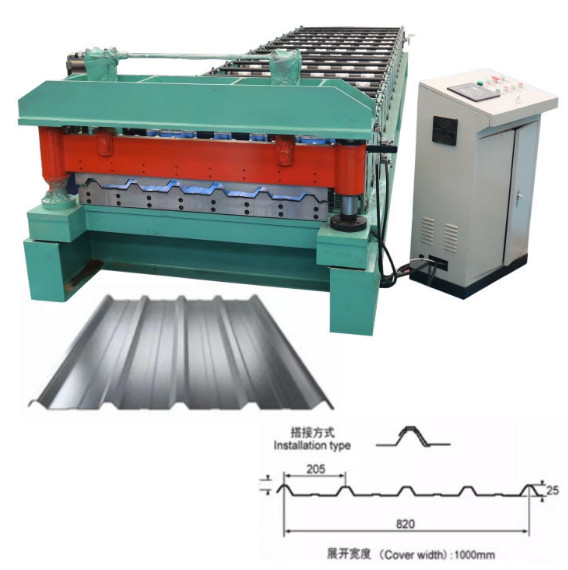

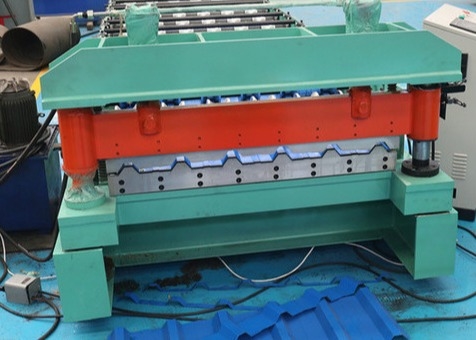

Trapezoidal Metal Roofing Sheet Roll Forming Machine For Zinc Color Steel Ibr Tile
The components of the roof panel roll forming machine include: manual decoiler/ electric decoiler/ hydraulic decoiler, feeding table, main roll forming machine, electric/ hydraulic cutting system, plc control system, main motor, pump station, simple receving table/ Automatic stacker.
Different roof panel roll forming machines can produce different shapes of steel roof wall sheets according to the client’s profile drawings and other requirements. The steel roof wall sheets are new building materials with various thickness and colors. The finished products are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition centers etc.
| Machine Specifications | |
| Weight | About 2.5tons |
| Size | About 6.1M*1.3M*1.2M(length x width x height) |
| Color | Main color: bule or as your need |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | GI PPGI GL PPGL |
| Thickness | 0.3-0.8mm |
| Yield Strength | 235Mpa or as your need |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 15 |
| Diameter of forming rollers shafts | 70mm |
| Roll Forming Speed | 15m/min |
| Forming rollers material | 45# steel, coated with chromed treatment |
| Cutter material | Cr12MOV, with quenched treatment |
| Controlling system | PLC |
| Electric Power requirement | Main motor power: 5.5kw |
| Hydraulic unit motor power: 4kw | |
| Electric voltage | According to customer’s requirement |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
