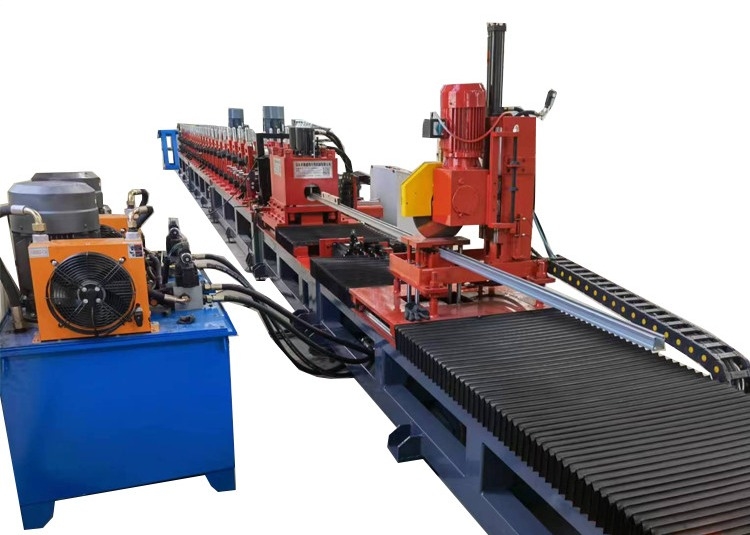

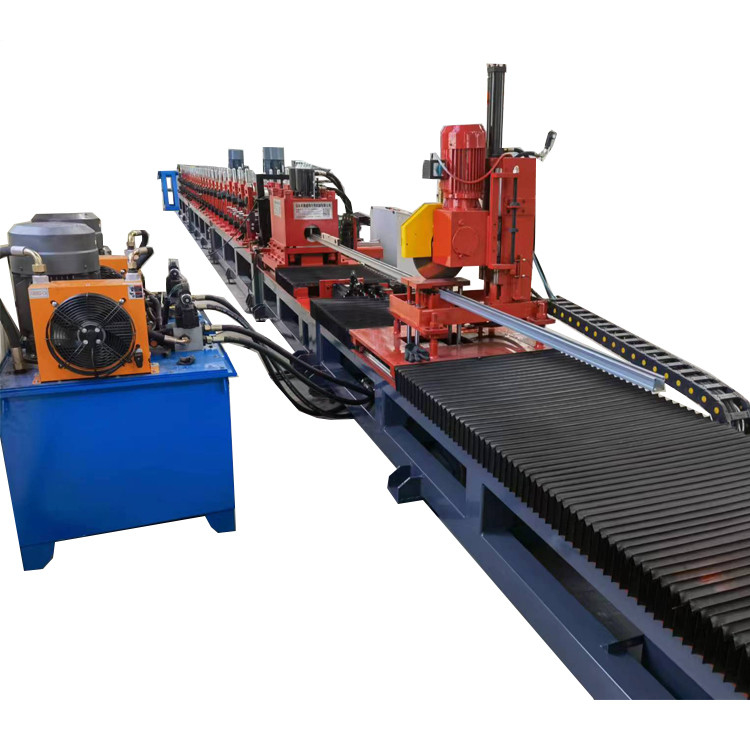

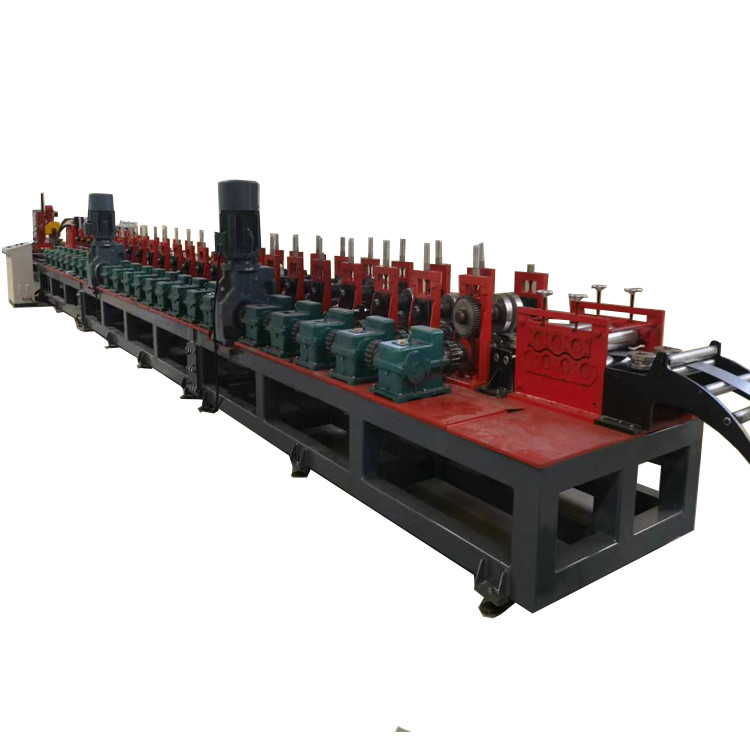

Solar Structure Panel Roll Forming Machine 1.2mm-2.5mm Material Thickness
Solar Structure Panel Roll Forming Machine 1.2mm-2.5mm Material Thickness
Uncoiler Straightening→servo feeder→Hydraulic press breach device → Guide device → roll forming machine → hydraulic punch →shear device (including knife)→ finished product rack
This machine is widely used in solar structure,kinds of shelves,ceiling frames, drywall partition, steel structure building, ect.
Our machines are exported to many countries: Rwanda, Thailand, Philippines, Dubai, USA, South Africa, Peru, Russia, Saudi Arabia, Malaysia, Indonesia, etc.
specifications
| Machine Specifications | |
| Weight | About 4tons |
| Size | About 10.2m*1.2m*1.3m(length x width x height) |
| Color | Main color: Red or as your requirements |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Cold-rolled strip steel, galvanized sheet |
| Thickness | 1.2mm-2.5mm |
| Yield Strength | Q235-300 |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 21 stations |
| Diameter of forming rollers shafts | 70mm |
| Roll Forming Speed | 20m-25m/min |
| Forming rollers material | Gcr15 |
| Cutter material | Cr12MOV |
| Controlling system | PLC |
| Electric Power requirement | Main motor power: 15kw+7.5KW |
| Electric voltage | According to customer’s requirement |
2. Repairs will not be performed even during the guarantee period in the follow circumstances
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.Guarantee
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
