उत्पत्ति के प्लेस:
चीन (महाद्वीप
ब्रांड नाम:
FMS
प्रमाणन:
ISO CE
मॉडल संख्या:
फर्श डेक
वीडियो
वीडियो
वीडियो

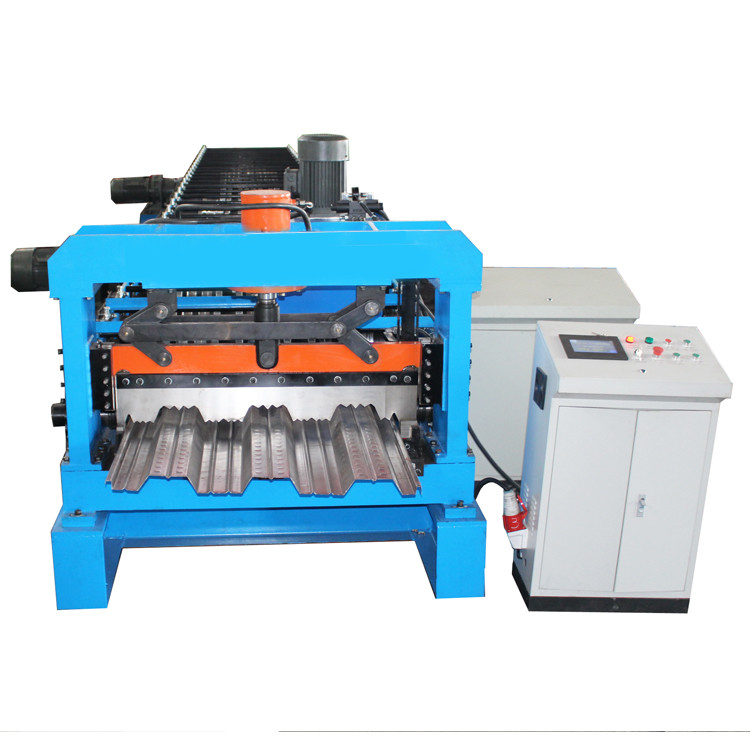

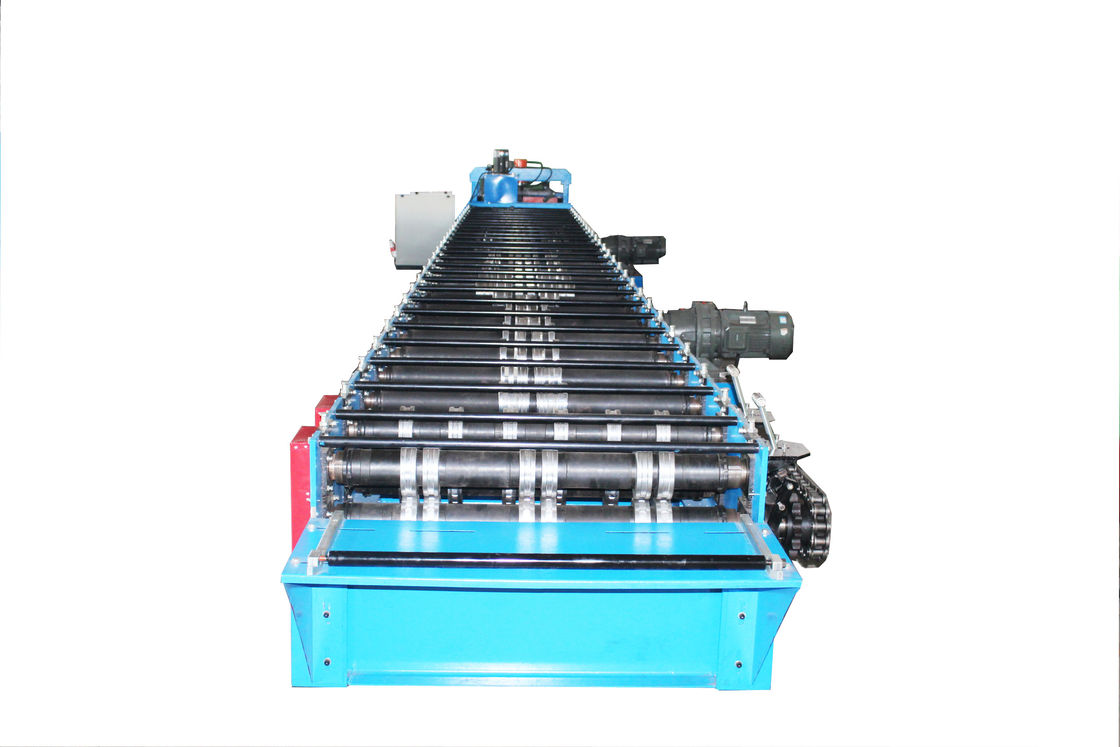

Metal Steel Deck Roll Forming Machine For Construction And Building Structure
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
Metal Steel Deck Roll Forming Machine For Construction And Building Structure is a modern, pre-eminent solution for concrete floor work. It roll-forms panels that replace traditional form-work, shortens 3 times working duration, saving 30% on concrete.
Field of application: Construction and building structure.
Application: Roll forming panels that are used as a floor replacement
Specification
| Machine Specifications | |
|---|---|
| Weight | About 6000kgs |
| Size | About 16m x 1.8m x 1.5m (length x width x height) |
| Suitable Raw Material | |
| Material | Galvanized or Galvalume Coils |
| Thickness | 0.8-1.2mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Diameter of forming rollers shafts | 95mm |
| Roll Forming Speed | 10-15/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 3x11kw |
| Hydraulic unit motor power: 5.5kw | |
| Electric voltage | According to customer’s requirement |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
