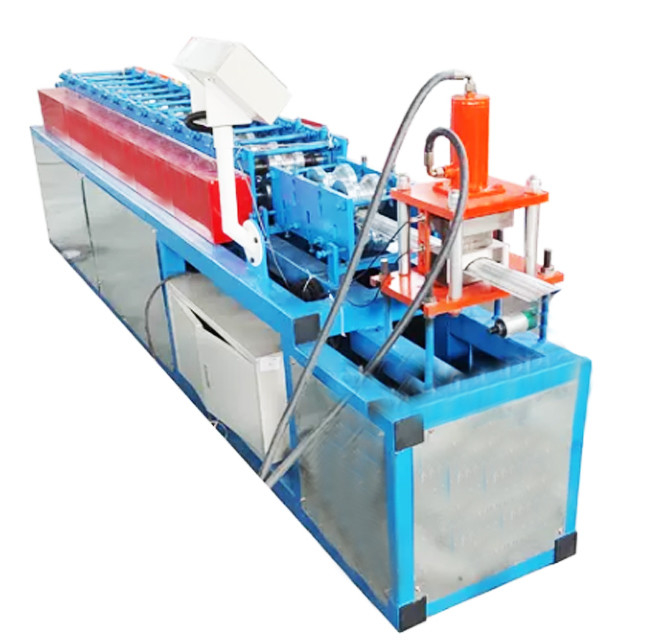

Metal Picket Fence Roll Forming Machine Fence Lines America Style Fence

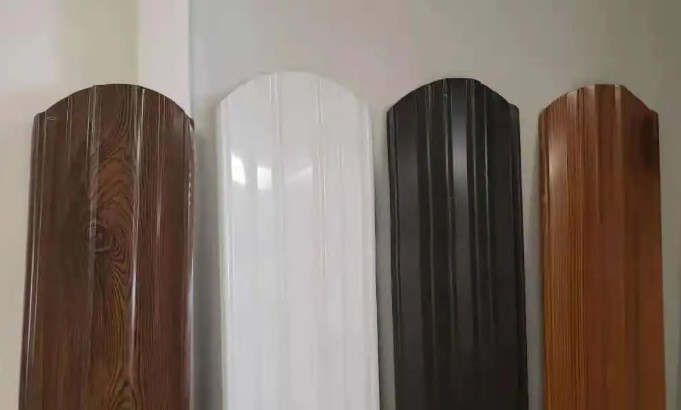

Metal Picket fence is a new solution to the classical approach to the construction of fences.
It is roll formed from light-gauge sheet metal with polymer coating.
Being an original solution of landscape design, a fence made of Metal Picket fence imitates a natural fence made of wood and, thanks to its structure, allows creating an attractive appearance around the enclosed territory.
The advantages of a metal fence are aesthetics, strong design, lightweighting and affordable cost.companies manufactures roll forming machines for production profile "Metal Picket fence " of any type.If it is necessary to increase the productivity or product range, we are also ready to offer you a line for production of a metal picket fence in single stream or in double stream options.
Specification
|
No
|
TYPE
|
SPECIFICATION
|
||
|
1
|
Raw material
|
material
|
PPGI GI
|
|
|
Feeding width
|
as drawing
|
|||
|
thickness
|
0.3-0.8mm
|
|||
|
2
|
Decoiler
|
operate
|
manual
|
|
|
weight capacity
|
5ton
|
|||
|
3
|
Roll forming machine
|
roller station
|
14
|
|
|
Diameter of shaft
|
55mm
|
|||
|
Roller material
|
45# with 0.05mm chrome
|
|||
|
Frame
|
steel sheet welding
|
|||
|
Frame thickness
|
18mm
|
|||
|
Cutting Material
|
Cr 12
|
|||
|
Operation
|
automatic cutting
|
|||
|
Working speed
|
15-20m/minute
|
|||
|
|
Power
|
Driving way
|
chain
|
|
|
Main motor
|
4kw
|
|||
|
Voltage
|
380v 50hz
|
|||
Application
selflock color steel has been specially processed, with strong anti -external power capacity, beautiful and solid external nature, and it is more appropriate to make wall panels and layers. By adjusting the freedom side, it can also be completely separated by rain.
Payment terms
40% in advance as advance payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port or CNF
The Delivery Time: 30 days after the down payment is received.
