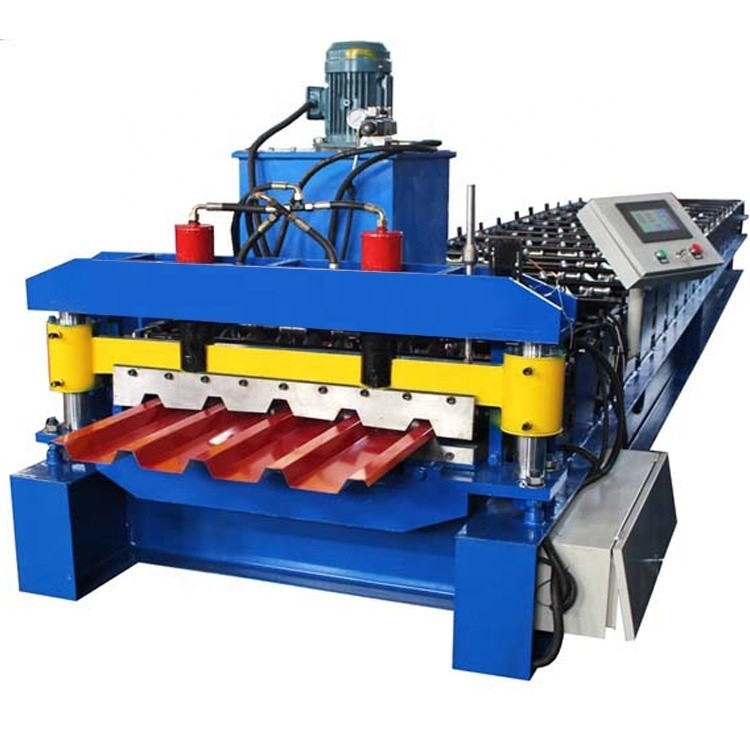

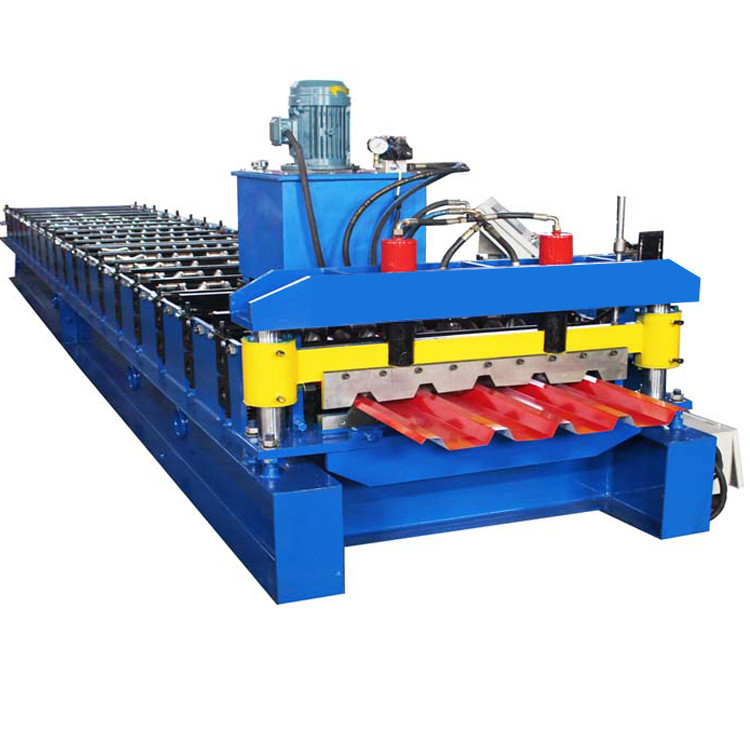

Automatic Cotrol Touch Screen IBR Roof Roll Forming Machine Effective Width 840mm
1) Linear structure, easy to install and maintain.
2) High -quality materials of the drum and axis.
3) Two -way column -type cutting system with two straight lines
4) Adopt advanced world -renowned brand components for pneumatic, electrical and operating components.
5) Run in a highly automated and intelligent environment
Equipment Detailed Parameters:
|
No |
||
|
1 |
Suitable Material | PPGI |
|
2 |
Width of the raw material | 1000 mm |
| 3 | Rows of rollers | 11 rows |
| 4 | Appearance size | 5500*1200*1200mm |
| 5 |
Total power |
Main motor 3kw+3Kw |
| 6 | Thickness of raw material | 0.3-0.6mm |
| 7 | Speed | 8-15m/min |
| 8 | Diameter of shaft | ￠75mm |
|
9 |
Voltage | 380V 50Hz 3phases |
| 10 | Big frame | 350H steel |
| 11 | Middle plate | 16mm |
Application
It is suitable for industrial and civilian buildings, warehouses, special buildings, large-span steel structured roofs, wall surfaces, and interior and exterior wall decorations.
Advantage
As a result of its light quality, high strength, rich color, convenient construction, earthquake resistance, fire prevention, rainproof, and life span, the attributes of long, exempt maintenance have been widely promoted and applied.
