उत्पत्ति के प्लेस:
चीन (महाद्वीप
ब्रांड नाम:
FMS
प्रमाणन:
ISO CE
मॉडल संख्या:
फर्श डेक
वीडियो
वीडियो
वीडियो

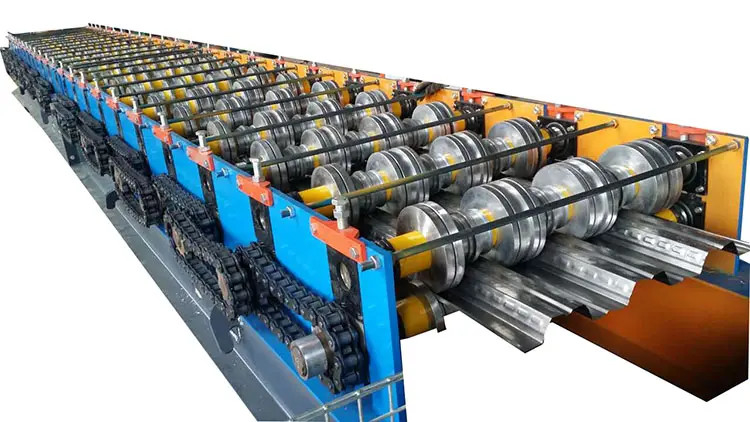

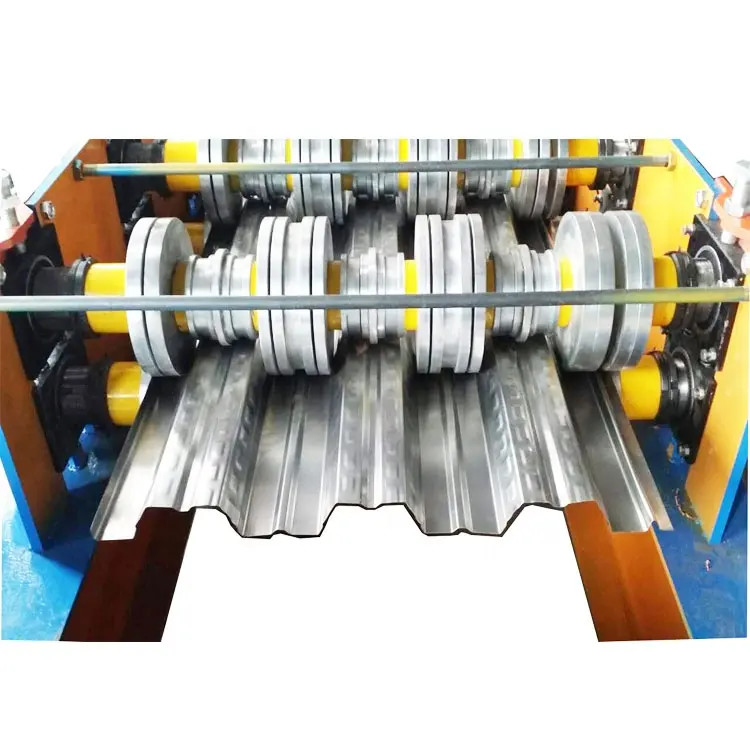

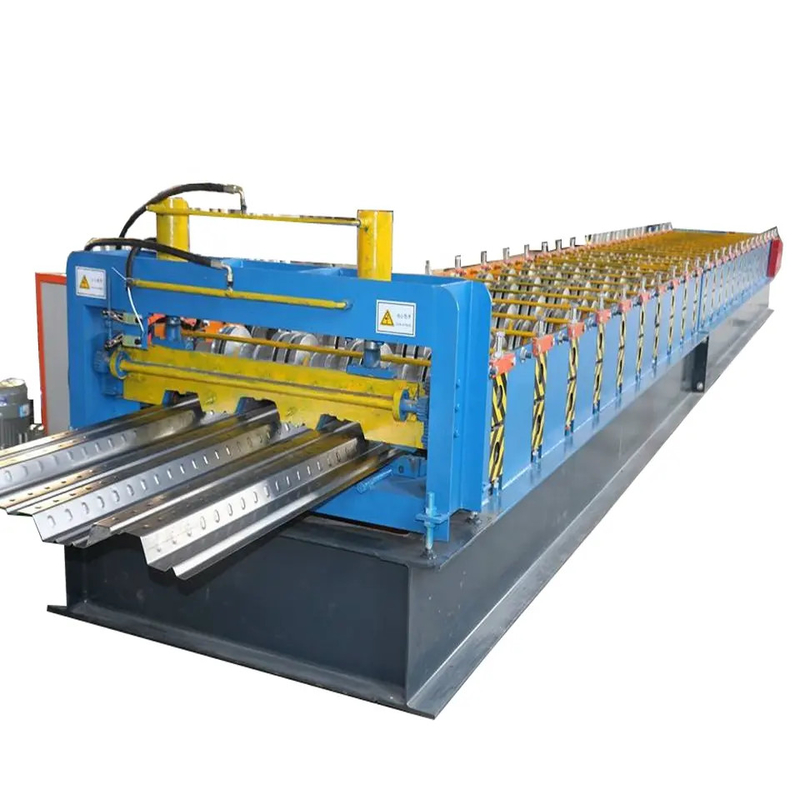

22KW Motor Power Metal Floor Deck Roll Forming Machine 10-12m/Min Forming Speed
Working flow
Decoiler----feeding----roll forming----pressing----cut to length----output table
Features of Deck Floor Roll Forming Machine:
The metal deck produced by floor decking roll forming line has high strength with big wave length. It adheres well to concrete. Used on high building, it not only saves steel mold plate, but also reduces the weight of storey. With the same bearing capacity, it economized steel and cuts down investment accordingly. We can also supply the customized machines.
Applications of Deck Floor Roll Forming Machine:
The finished products are widely used in floor flat, after make embossing of the sheet, it will increase the strength between the steel and concrete, thereby increasing the floor of the fastness.
Specification
| Cutting & Hydraulic type | Cut slide/Double guide pillar |
| Feeding Thickness | 0.8mm -1.5mm |
| Hydraulic motor power | 7.5kw |
| Effective width | Better as your drawing or from our designer |
| Cutting drive | Decelerating motor Chain drive gear all by high frequency |
| Productivity | 10-12m/min |
| Length measurement | Encoder |
| Roll material | 45#steel |
| Control System | Panasonic/Siemens/Schneider/Delta PLC Colored Touch Screen |
| Cutter material | Cr12 mould steel heat-treated hardness of HRC=60-62 degrees |
| Chain Size | 1 inch/2 inch |
| Overall Size | Size of our designer |
| Backboard Thickness | 17mm-200mm |
| Total Weight | 5t-12t |
| Feeding Material | Better as your drawing or from our designer |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
