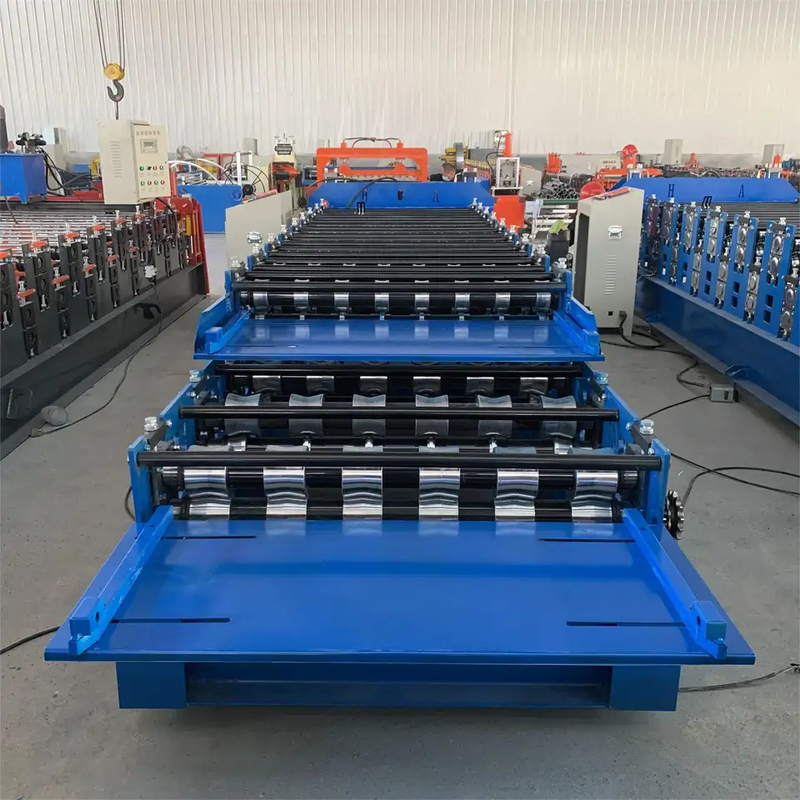

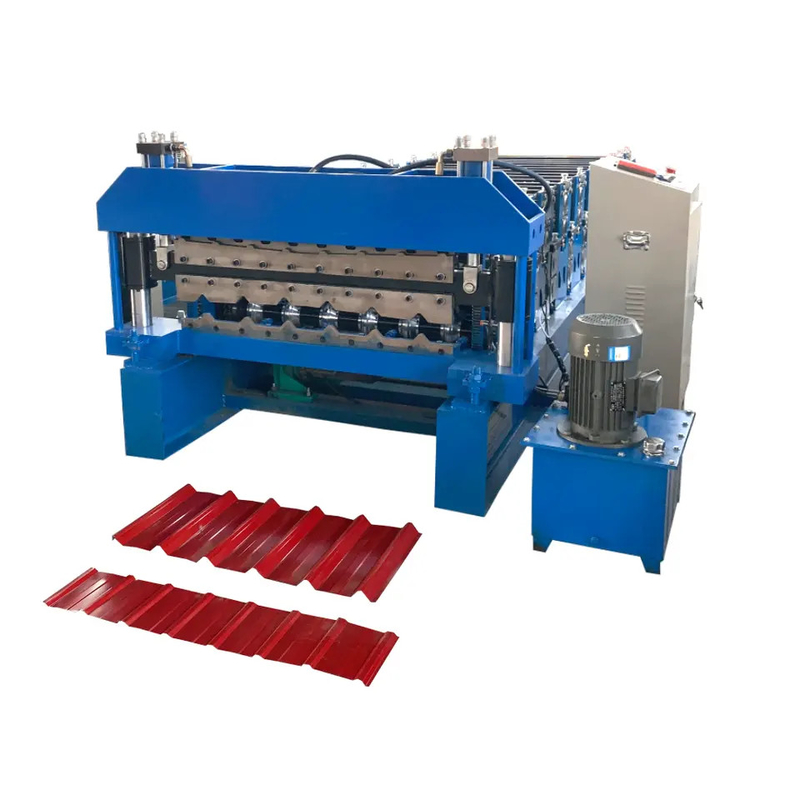

High Quality Double Layer Roll Forming Machine For Long Span Roof Sheet
High Quality Double Layer Roll Forming Machine For Long Span Roof Sheet
Uncoiler → Feed Guide Device → Roll Forming System → Hydraulic Press Stair Device→ Hydraulic Post Cutting Device (Two Pieces Cutting Blades) → Exit Rack*3 → PLC Control System → Hydraulic Station
Double layer roll forming machine is one of our main products,it is more and more popular in recent years . It is beautiful in appearance &unique in design.We are very professional manufacturer of double layer roll forming machine, with mature technique and professional experience ,our machines have been sent to many countries all around the world and gained a good reputation for us .
Specification
item | value |
Forming Speed | 8-15m/min |
Voltage | 380V 220v |
Thickness of feeding material | 0.3-0.8mm |
The Length Of Tolerance | ±0.5mm |
Warranty | 1 Year |
Key Selling Points | Automatic |
Roller station | 12-14 rows. |
Material of the roller | High grade No.45 forged steel. |
Warranty of core components | 1 Year |
Core Components | Bearing, Gear, Pump, PLC |
Raw material | PPGI |
Roller material | 45#steel Chrome Plated |
Coil width before rolling | 1000mm |
Cutting blade material | Cr 12 High Grade Steel |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
.
Payment terms
30% in advance as down payment
70% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
