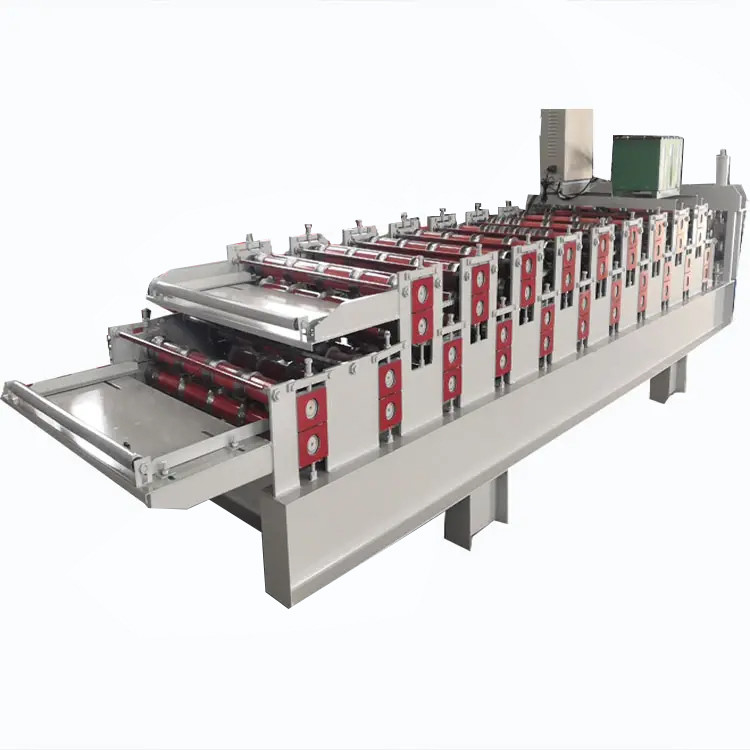

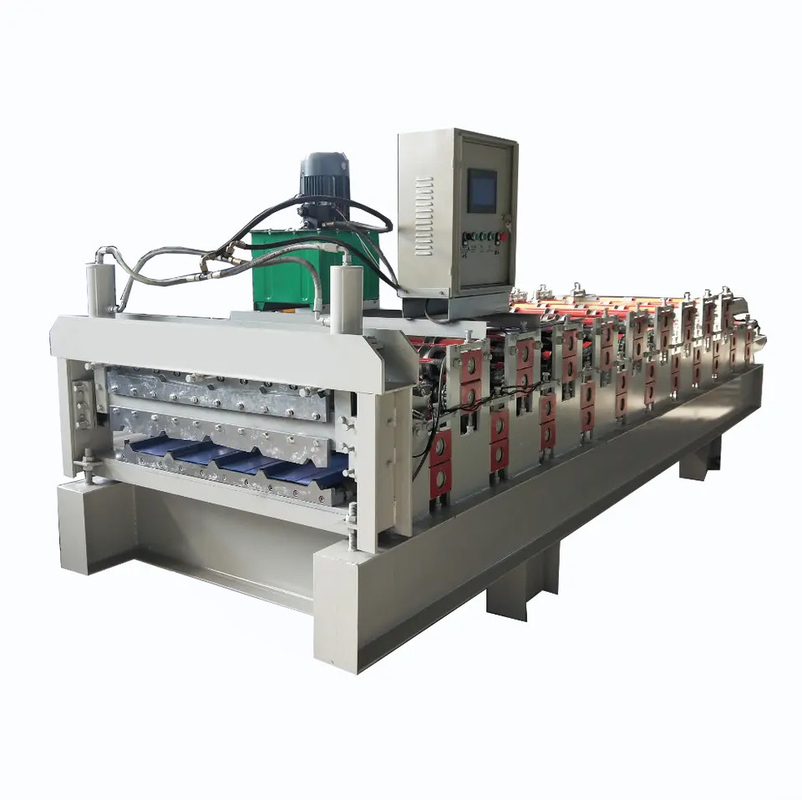

Hydraulic Shear Double Layer Roll Forming Machine 8-15m/Min Automatic
Hydraulic Shear Double Layer Roll Forming Machine 8-15m/Min Automatic is a machine composed of feeding, forming and post-forming cutting. Its color plate appearance is smooth and beautiful, uniform paint pattern, high strength and durable. It is widely used in industrial and civil buildings, such as factory buildings, warehouses, stadiums, exhibition halls, theaters and other rooms and walls.
Specification
|
No
|
Item
|
Data
|
|
1
|
Raw material width
|
1000-1200 mm
|
|
2
|
Sheet effective width
|
750-1000 mm
|
|
3
|
Raw material
|
Color steel sheet or galvanized steel sheet
|
|
4
|
Material thickness
|
0.3-0.8 mm or customized
|
|
5
|
Forming roller material
|
45# steel plated with chrome
|
|
6
|
Shaft diameter
|
70 mm
|
|
7
|
Forming roll station
|
8-16 steps
|
|
8
|
Main motor power
|
3 KW 4 KW 5.5 KW(according to type)
|
|
9
|
Hydraulic power
|
4 KW (according to type)
|
|
10
|
Control system
|
PLC control
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
.
Payment terms
30% in advance as down payment
70% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
