उत्पत्ति के प्लेस:
चीन (महाद्वीप
ब्रांड नाम:
FMS
प्रमाणन:
ISO CE
मॉडल संख्या:
दोहरी परत
वीडियो
वीडियो
वीडियो

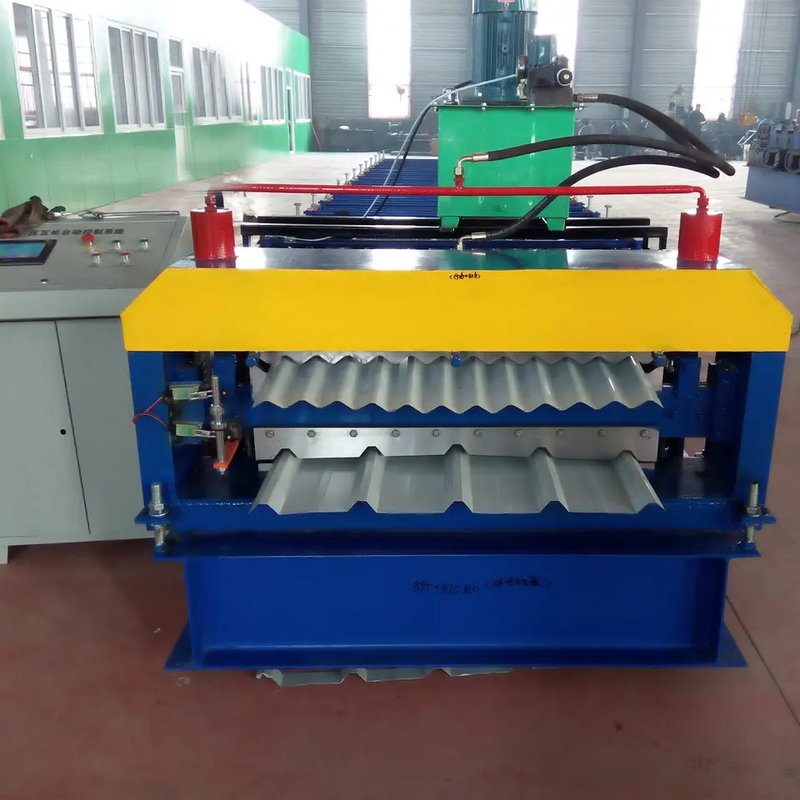

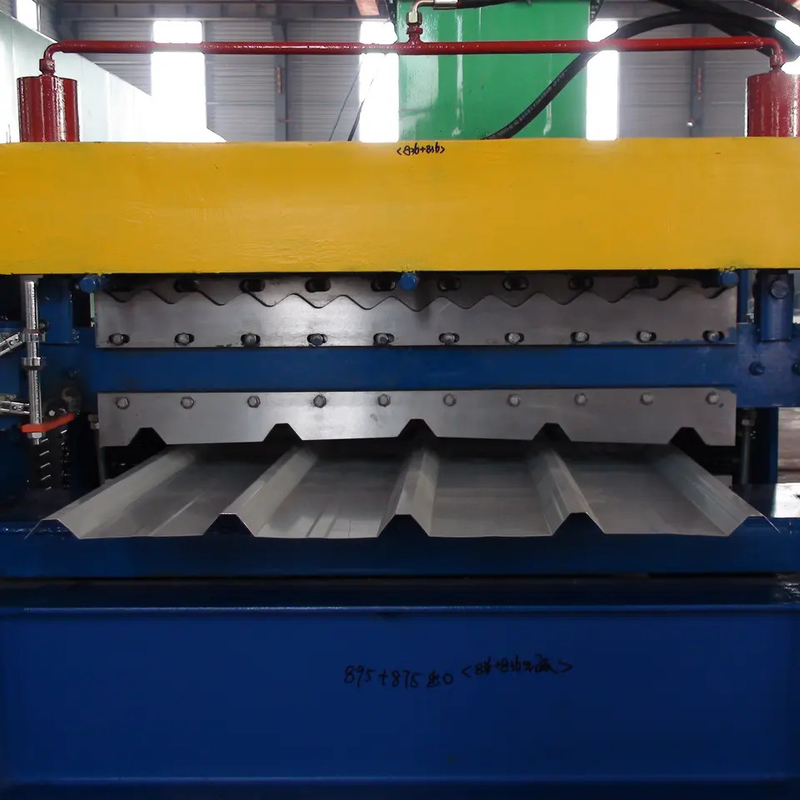

Double Layer Roll Forming Machine Corrugated Roofing & 5 Rib Roofing
Specification
|
1
|
Suitable to process
|
Color steel plate
|
|
2
|
Width of the plate
|
914mm/1000mm/1200mm/1220mm/1250mm
|
|
3
|
Thickness of the plate
|
0.3-0.8mm
|
|
4
|
De-coiler
|
Manual one, can load 5 tons raw material
|
|
5
|
Rollers for forming
|
16 rows
|
|
6
|
Diameter of the roller
|
80mm
|
|
7
|
Rolling material
|
Carbon Steel 45#
|
|
8
|
Main motor power
|
5.5kw
|
|
9
|
Material of the cutting blade
|
Cr12 mov
|
|
10
|
Hydraulic cutting power
|
4kw
|
|
11
|
Processing precision
|
Within 1.00mm
|
|
12
|
Control system
|
Delta PLC control
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Main structure of the machine
|
350 H steel
|
|
15
|
Weight
|
About 3T
|
|
16
|
Dimensions
|
5.6*1.2*1.5m
|
|
17
|
Voltage
|
380V 50Hz 3phases(changeable as needs)
|
|
18
|
Certificate
|
CE/ISO
|
|
19
|
Custom
|
According to customer's requirements
|
Advantage
The metal system is accurate and solid, and will not move over time or with changes in temperature.
There is a wide range of stud widths from 50mm to 146mm to meet varying requirements.
It is a fast and clean system to erect that allows services to pass through easily.
All sections fit together easily and door frames are formed very simply.
Payment terms
30% in advance as down payment
70% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
