उत्पत्ति के प्लेस:
चीन (महाद्वीप
ब्रांड नाम:
FMS
प्रमाणन:
ISO CE
मॉडल संख्या:
दोहरी परत
वीडियो
वीडियो

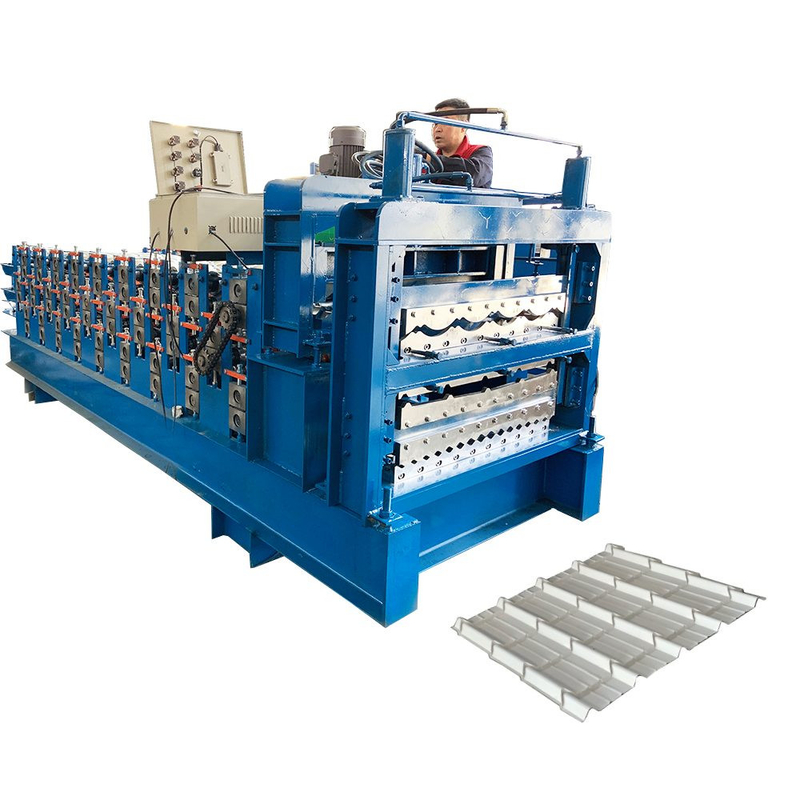

High Quality Three Layer Roof Tile Roll Forming Machine Ibr Corrugated Tile making machine
|
High Quality Three Layer Roof Tile Roll Forming Machine Ibr Corrugated Tile making machine
|
||
|
General details
|
Suitable Material
|
PPGI/PPGL/GI/GL
|
|
coil width
|
1000/1200/1250MM(according to your need)
|
|
|
Materials thickness
|
0.3mm-0.8mm
|
|
|
Dimension
|
About 8*1.2*1.3m(L*W*H) , as per the drawing
|
|
|
Length of the Sheet
|
can set the length according to your infact need.
It is controlled by PLC which can ensure the accuracy of ±1mm. |
|
|
Cutting
|
Automatically stop and cutting when it comes to the set length.
|
|
|
Components Details
|
Roller Material
|
High grade 45# steel. Hard chrome plating, 0.05mm.
|
|
Main Frame
|
350# steel. More stable and no shaking.
|
|
|
Middle Plate
|
16mm. We use thicker plates to ensure stability
of our products. |
|
|
Forming Steps
|
9-20 steps, according to the drawing.
|
|
|
Shaft Material
|
Φ70 mm, high grade 45# steel.
Treating process: tempering- finish turning, high rigidity, hard to deform. |
|
|
Cutting
Blade Material |
Cr12, hardness HRC60-62.
Treating process: heat treatment- plane abrasion- wire electrode cutting. |
|
|
|
Suitable Power
|
380V, 50 Hz, 3 phase(according to your need)
|
|
Screen
|
7 inch touch screen
|
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for 12 months after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% TT in advance
60% TT before the shipment and after inspection
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 20 days after the down payment is received
