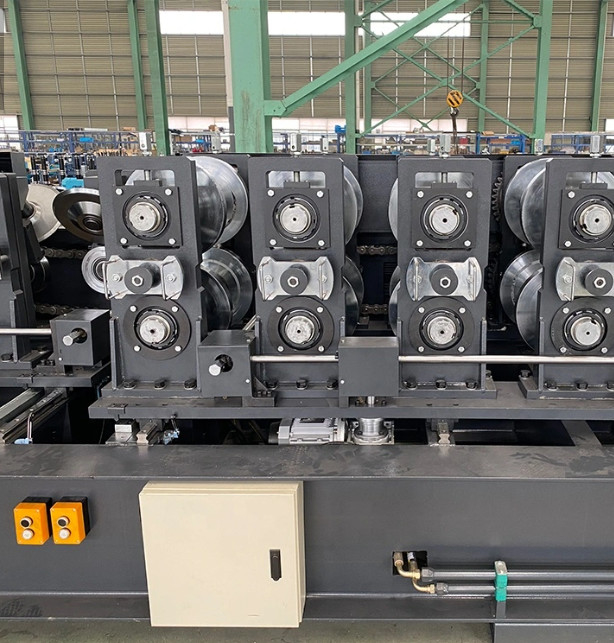

Automated CZ Purlin Roll Forming Machine Stud And Track Cold Roll Former 5.5kw

Automated CZ Purlin Roll Forming Machine Stud And Track Cold Roll Former 5.5kw

CZ Purlin Roll Forming Machine 5.5kw

Cold Roll Former 5.5kw

Automated CZ Purlin Roll Forming Machine

उत्पत्ति के प्लेस:

चीन

ब्रांड नाम:

FMS

प्रमाणन:

CE,ISO

हमसे संपर्क करें
उद्धरण मांगें
उत्पाद विवरण
प्रोडक्ट का नाम:
ऑटोमेटिक सीजेड पर्लिन रोल बनाने वाली मशीन स्टड और ट्रैक कोल्ड रोलर पूर्व अच्छी कीमत पीईबी
HigzhControl प्रकार:
पीएलसी नियंत्रण प्रणाली-सटीकता
उत्पादन क्षमता:
8-12 मी / मिनट
द्रव्य का गाढ़ापन:
1-3 मिमी
ब्लेड:
खरीदार की आवश्यकता पर
नियंत्रण प्रणाली:
इन्वर्टर के साथ पीएलसी कंप्यूटर नियंत्रण
पंप -शक्ति:
5.5 kw
चौखटा:
400H स्टी
विनिर्देश:
10*1.35*1.75मी
मुख्य शाफ्ट सामग्री:
40 करोड़
प्रमुखता देना:

CZ Purlin Roll Forming Machine 5.5kw

,

Cold Roll Former 5.5kw

,

Automated CZ Purlin Roll Forming Machine

भुगतान और शिपिंग शर्तें
न्यूनतम आदेश मात्रा
1 सेट
मूल्य
negotiable
पैकेजिंग विवरण
मुख्य मशीन नग्न है, कंप्यूटर नियंत्रण बॉक्स प्लास्टिक से पैक किया गया है।
प्रसव के समय
30 दिन
भुगतान शर्तें
टी/टी, वेस्टर्न यूनियन, एल/सी
आपूर्ति की क्षमता
प्रति माह 20 सेट
संबंधित उत्पाद
अच्छा दाम High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction ऑनलाइन वीडियो

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings ऑनलाइन वीडियो

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency ऑनलाइन वीडियो

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम CZ Purlin Roll Forming Machine with 7000*1400*1500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel ऑनलाइन वीडियो

CZ Purlin Roll Forming Machine with 7000*1400*1500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

सबसे अच्छी कीमत प्राप्त करें
हमसे संपर्क करें
86-317-2016816
अब संपर्क करें
उत्पाद वर्णन

Aotomatic CZ Purlin Roll Forming Machine Stud And Track Cold Roller Former Good Price Peb



   Product name: Aotomatic CZ Purlin Roll Forming Machine Stud And Track Cold Roller Former Good Price Peb

Production Process: Decoiling - Feeding - Flattening - Lip forming - Flange forming - Angle forming - Straightening - Punching - Cutting - Stacking

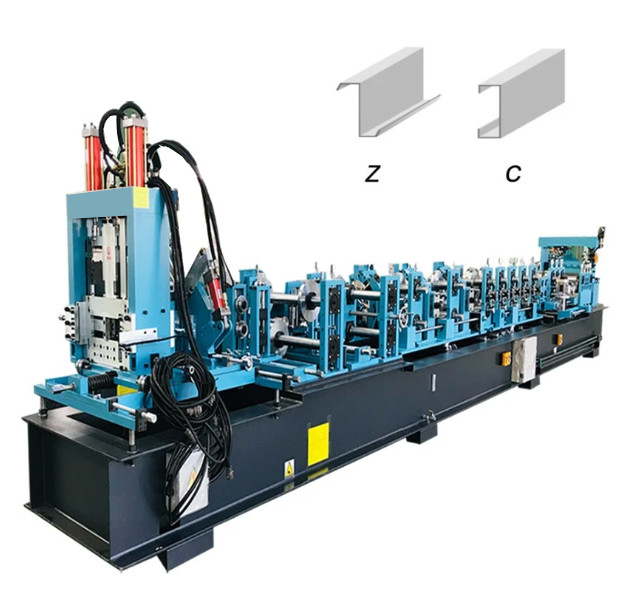

This automatic CZ purlin roll forming machine can produce both C and Z shape purlin, C Z shape change by computer automatically in 1 minute, which highly improve the efficiency and save space&time&cost.


   It can be used in the main body stress structure of the large and medium-size enterprises civil construction, like the plant, warehouse, locomotive shed, hangar, exhibition building, theatre, stadiums, roofing load-bearing load and wall surface support of the arbour.



specifications



1 Processing material: Aluminum plating zinc/galvanized steel
2 Material thickness: 1.5 mm-3.0 mm
3 Capacity: 8-12m/Min
4 The weight: 13-15 ton
5 Roll Forming Machine Shaft Material Cr12, Heat Treatment
6 Hydraulic Station 5.5kw
7 Specification 10*1.35*1.75m
8 Cutting Blade
Cr12MOV After Heat Treatment
9 Forming Stations 18
11 Main frame: 400H steel
12 Control system: PLC computer control with inverter
13 Power supply: 380V, 3 Phase, 60Hz(as requirement)



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 20 days after the down payment is received.



Automated CZ Purlin Roll Forming Machine Stud And Track Cold Roll Former  5.5kw 0
