Warehouse Shelf V-Frame Racking Beam Pallet Rack Roll Forming Machine

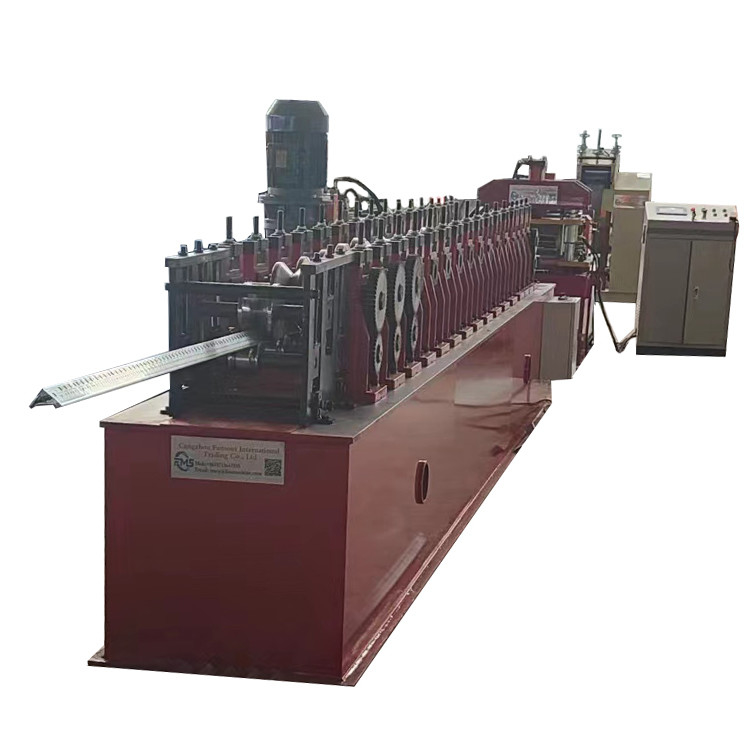

The picture shows the whole process of cold roll forming machine :
The machine is fully automatic and it is easy to operate with a friendly HMI panel. It consists of one decoiler, sheet guiding
equipment, roll forming section, PLC control system, Hydraulic cutting, collection table.
specifications
|
Type
|
Steel Frame & Purlin Machine
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
|
|
Production Capacity
|
15-30 m/min
|
|
Place of Origin
|
China
|
|
Voltage
|
380 v/customized
|
|
Power
|
25KW
|
|
Dimension(L*W*H)
|
4.8m*0.8m*1.2m
|
|
Weight
|
3500kg
|
|
Warranty
|
1 Year
|
|
Key Selling Points
|
Low Noise Level
|
|
Dimension(L*W*H)
|
4.8m*0.8m*1.2m
|
|
Rolling thincknes
|
0.6 mm ~ 1.5 mm
|
|
Roller material
|
Cr12mov
|
|
Shaft material
|
High grade 45 # steel
|
|
Weight
|
3500 kg
|
|
Profile cutting
|
Hydraulic cylinder
|
|
Control system
|
PLC HMI automatic programmable
|
|
Material width
|
135/ 170/ 180/ 215 mm
|
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 20 days after the down payment is received.
