उत्पत्ति के प्लेस:
चीन (महाद्वीप
ब्रांड नाम:
FMS
प्रमाणन:
ISO CE
मॉडल संख्या:
स्टड और ट्रैक
वीडियो

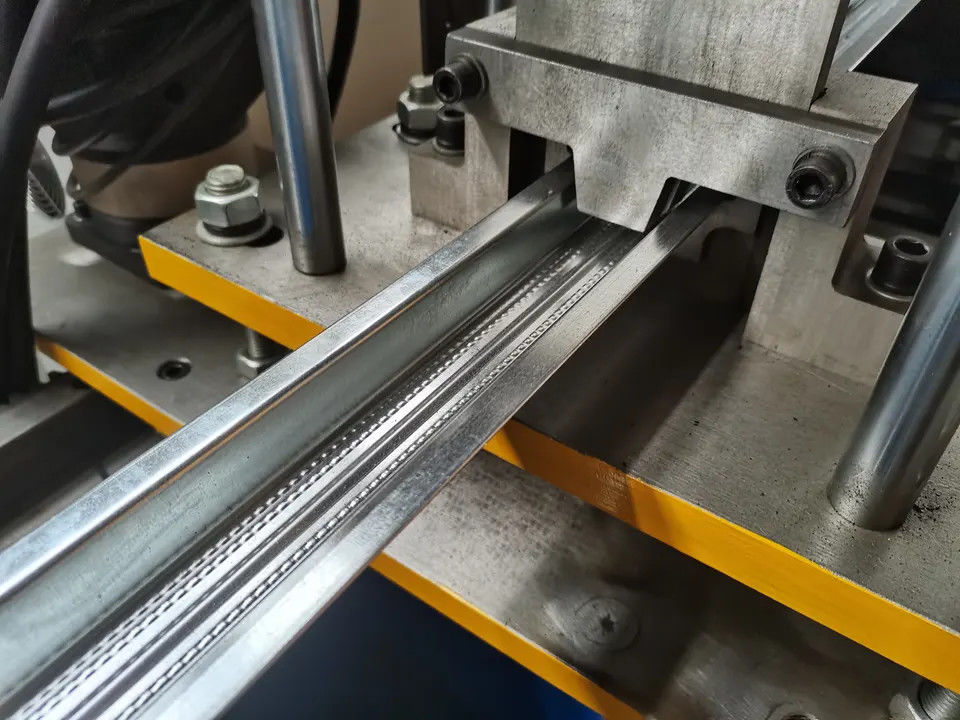

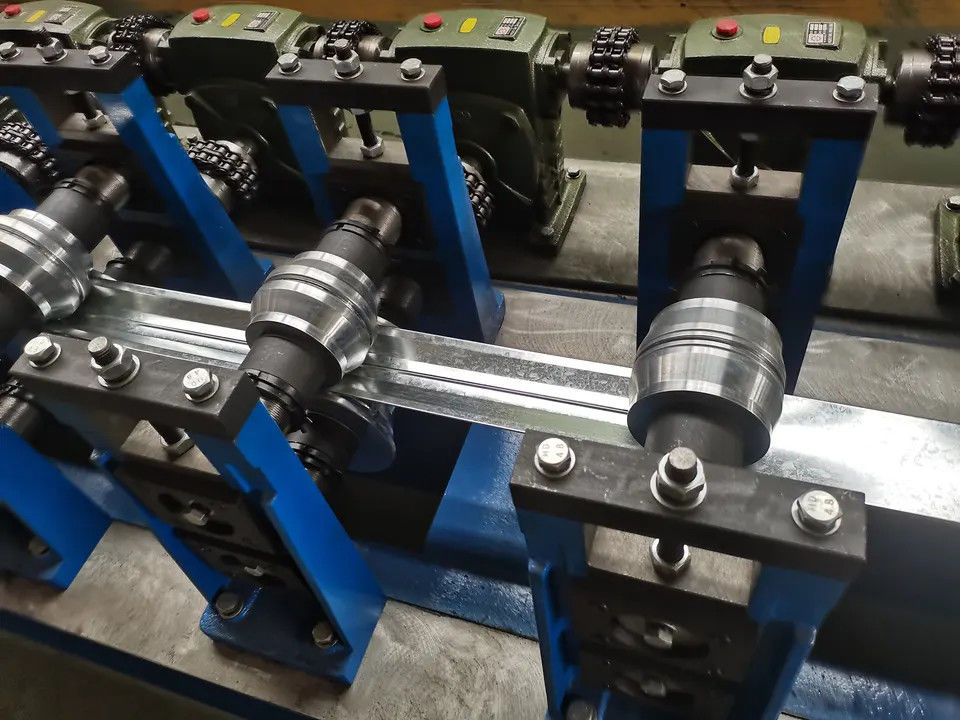

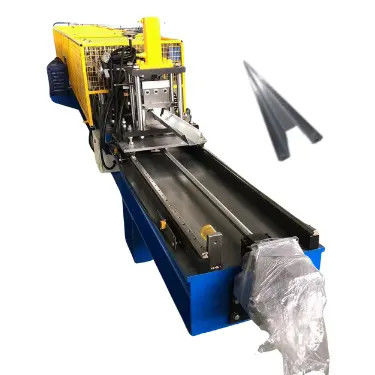

Omega Sheet Metal Roll Forming Line Machine Fully Automated
Omega Sheet Metal Roll Forming Line Machine Fully AutomatedMetal framings used in concealed grid gypsum ceiling of light weight structure include furring channel, carrying channel, studs,tracks, wall angle, and main frame channel.
Specification
|
Description
|
Explaination |
|
Working speed
|
10-20 m/min(Shear time is not included)
|
|
Pressed plate thickness
|
0.3-1mm
|
|
Control mode
|
Panasonic PLC
|
|
Number of molding passes
|
18 lanes [Electric width adjustment]
|
|
Roll material
|
Gcr15 quenching of steel after finishing HRC58-62℃,surface chrome plating
|
|
Shaft material and diameter
|
45# Steel finishing,Shaft diameter is￠76mm
|
|
Main engine power
|
5.5kw
|
|
Power of hydraulic station
|
3kw
|
|
Hydraulic pressure
|
12Mpa
|
|
Scissors material
|
Cr12Mov, quench HRC 58-62℃
|
|
Length tolerance
|
3m±1.5mm
|
|
Voltage
|
380V, 50HZ,3 phase(According to customer requirements can be adjusted)
|
|
Transmission mode
|
1.0 inch double row chain
|
|
Equipment form
|
Card structure
|
|
Equipment color
|
Company color
|
|
Equipment size
|
L*W*H--11.5m*1.6m*1. 2m
|
|
Date of delivery
|
80 days
|
|
Payment method
|
30% advance charge,70% pay off on delivery
|
Payment terms
30% in advance as down payment
70% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
