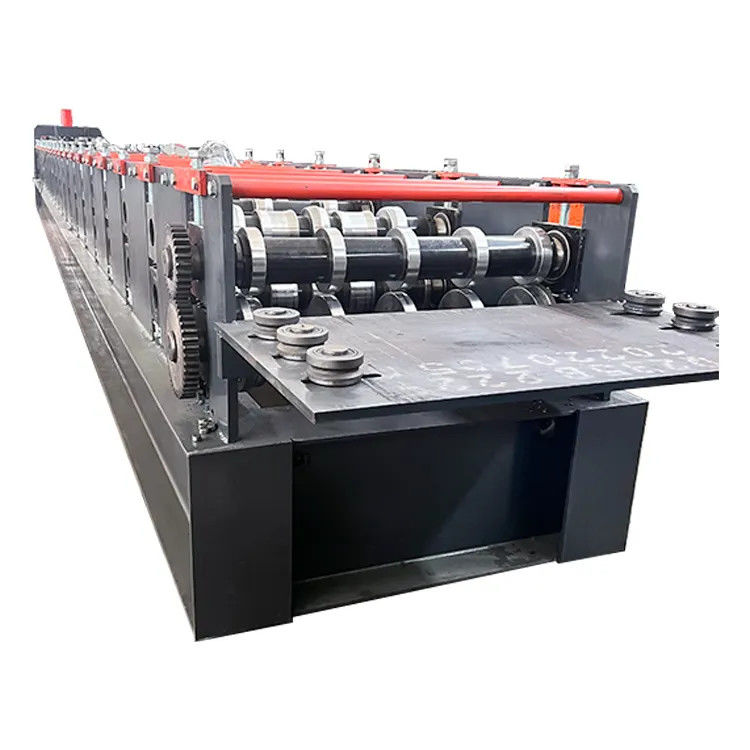

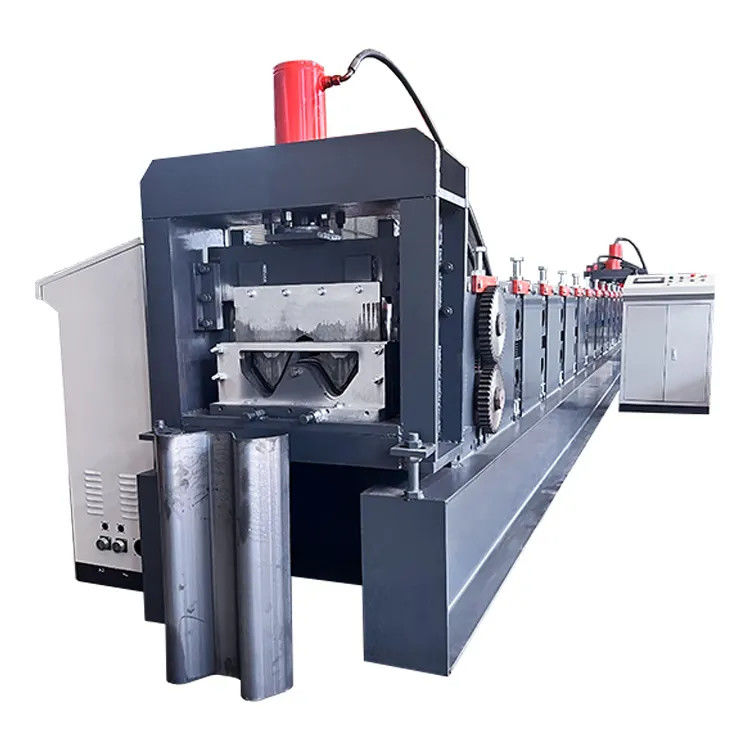

Full Auto Highway Railing B Profile Roll Forming Machine Highway Guard Roll Forming Machine
Full Auto Highway Railing B Profile Roll Forming Machine Highway Guard Roll Forming Machine Highway collision avoidance facilities, isolation and other facilities. Mainly used for traffic security projects such as
highways, primary and secondary roads, provincial roads, county roads and rural road scenic spots, large parking lots, etc.
Specification
|
Item
|
Parameter
|
|
Product name
|
Highway guardrail roll forming machine
|
|
Main motor power
|
22KW with Cycloidal reducer
|
|
Hydraulic station power
|
5.5KW
|
|
Hydraulic oil
|
36#40# abrade oil
|
|
Thickness of material
|
3mm~4mm
|
|
Electric tension
|
380V 3phase 50HZ
|
|
Material of roller
|
GCR15 Bearing Steel quenched HRC58-62, hard chrome coated 0.05mm
|
|
Processing speed
|
12-16m/min
|
|
Processing precision
|
within 1.00mm
|
|
Material of cutting blade
|
Cr12 Mov
|
|
Transmission
|
Sprocket&Chain(1.5 inch)
|
|
Roller station
|
13 Rollers
|
Payment terms
30% in advance as down payment
70% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
