उत्पत्ति के प्लेस:
चीन
ब्रांड नाम:
FMS
प्रमाणन:
CE,ISO
मॉडल संख्या:
दोहरी परत
वीडियो
वीडियो
वीडियो

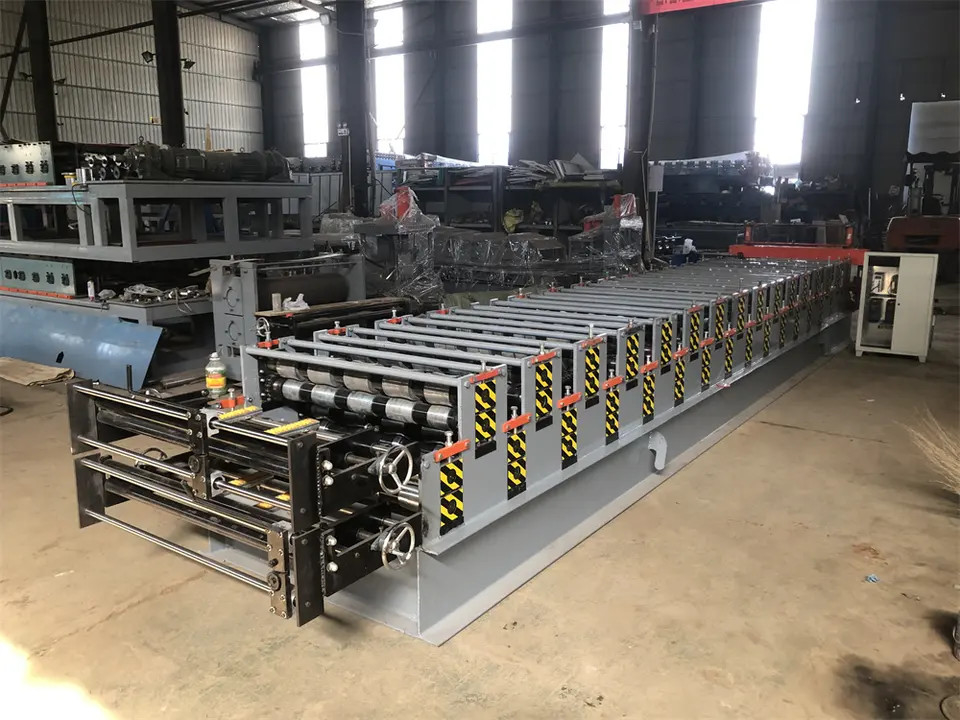

Color Steel Double Layer Roof Roll Forming Machine Metal Sheet Making Machine
Color Steel Double Layer Roof Roll Forming Machine Metal Sheet Making Machine.Compared to a single layer roof panel roll forming machine, a double layer roll forming machine is desgined to produce two different kinds of metal sheets which can be one trapezoidal roofing and one roof/wall cladding sheet.
We provide an extensive line of products, including roof and wall panel machine, tile roof machine, purlin forming machine, shutter door machine, floor decking machine and other associated equipment.
Our products have been sold worldwide over 90 countries including America, the UK, Australia, India, Sri Lanka South Africa, Tanzania, Nigeria etc.
Detailed Parameters:
| No. | ||
| 1 | Suitable material | color steel sheet, galvanized steel sheet, aluminium sheet |
| 2 | Material width | 1000mm or as your required |
| 3 | Material thickness | 0.3-0.8 or as your required |
| 4 | Working speed | 8-12m/min, can be 20-25m/min |
| 5 | Main motor power | 5.5kw with cycloidal with reducer |
| 6 | Hydraulic pump power | 4kw |
| 7 | Electrical control system | PLC control system with inverter |
| 8 | Shaft diameter | 75mm |
| 9 | Roller station | 15 rows, depend on your panel profile drawing |
| 10 | Roller | high grade 45# steel, hard chrome plating |
| 11 | Working time | 24 hours |
| 13 | Cutting head material | Cr 12 mould steel with quenched treatment |
| 14 | Voltage | 380V 3Phase 50Hz or as your required |
| 15 | Weight | 3.5T |
| 16 | The machine size | 6500*1500*1300mm |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
