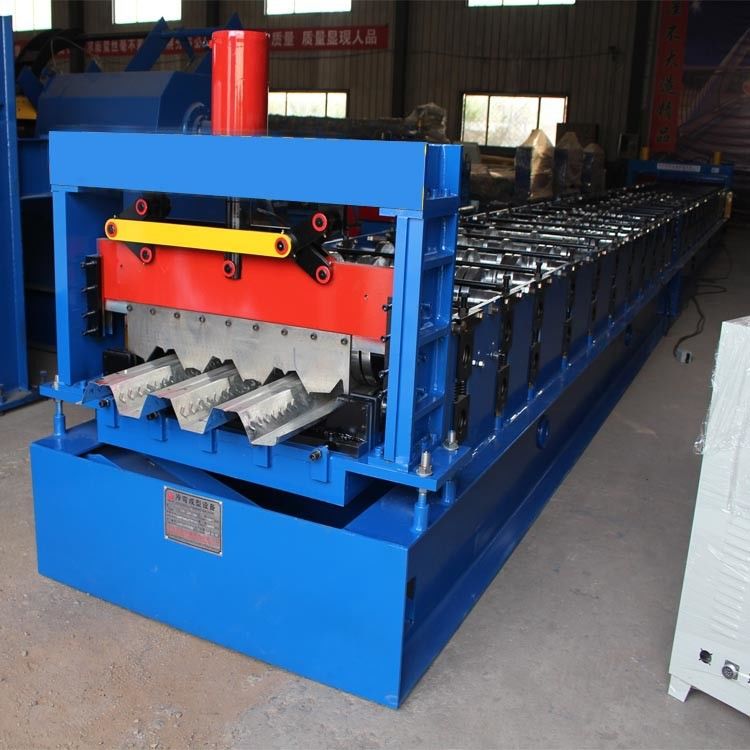

High Quality Automatic Floor Deck Roll Forming Machine Price
High Quality Automatic Floor Deck Roll Forming Machine Price.We can provide floor deck roll forming machine for building a big construction, we provide accuracy rollers to satisfy reinforced rib of floor deck, satisfy the customer’s requirement of hardness of floor deck, solve the problem of loading capacity of each floor.We equip 400 I Beam as the main structure of machine base, large loading capacity and stable structure, solve the problem of producing if workshop place isn’t flat.
Specification
| Item | Name | Description |
| 1 | Decoiler | Capacity:5 tons |
| 2 | Material | Steel Coil |
| 3 | Thickness | 0.5-1.2mm |
| 4 | Transmission | Chain/Gear/Gearbox |
| 5 | Speed | 10-15m/min |
| 6 | Roller | Steel with quenched treatment,chromed on the surface |
| 7 | Shaft | steel with tempering treatment |
| 8 | Cutting type | Hydraulic cutting |
| 9 | Cutting material | Cr12 with quenched treatment Hardness58°-62° |
| 10 | Welding | Automatic spot welding |
| 11 | Control system | PLC |
| 12 | Electric brand | Delta,Siemens,Schneider |
| 13 | Voltage | 380V,50HZ,3PH(or as customers' request) |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
