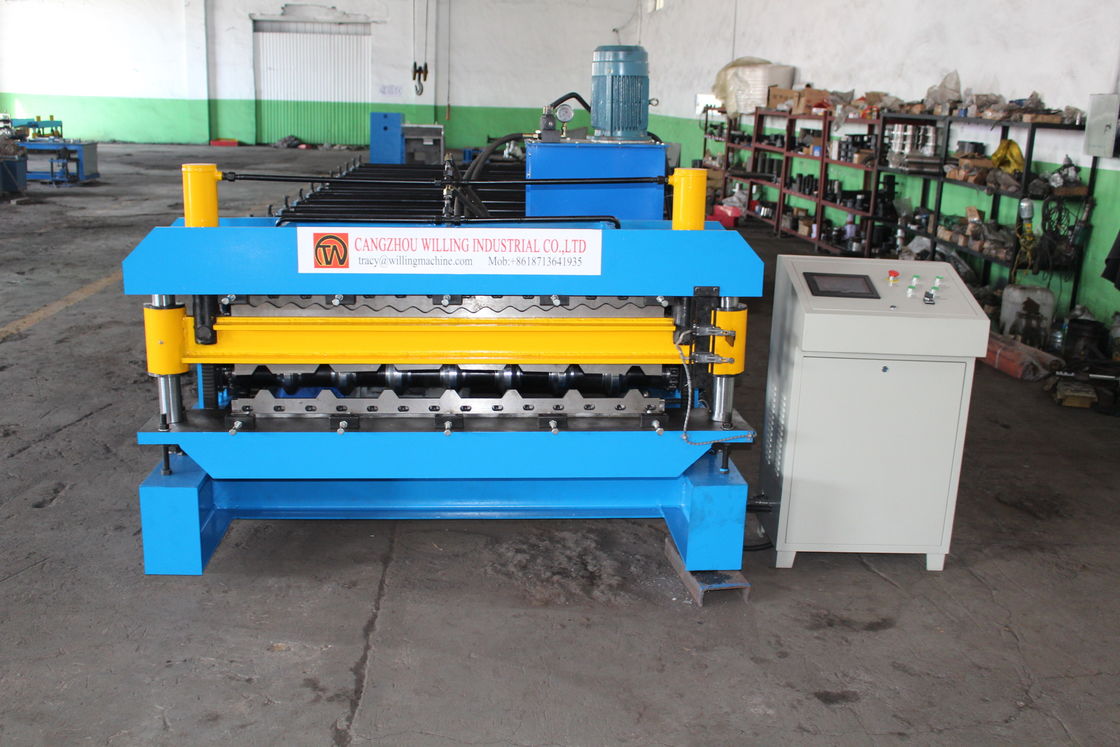

Glazed Sheet For Roof And Trapezoid Sheet For Roof Double Layer Roll Forming Machine
Color Sheet Double Layer Roll Forming Machine Double Deck Roll Forming Equipment
This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer with limit area or site.
1) This double layer oof sheet roll forming machine adopts coil production material to form 2 different roofing profiles through 5 Ton manual decoiler, pinch feeding, main roll forming part, Hydraulic cutting, hydraulic station, PLC control system, and Non-power type support table.
2) The whole machine adopt PLC control, AC speed control by frequency inverter technology, to realize continuous auto production, which is the best desired machinery in steel structure and metal cold roll forming machinery industry.
Specification
| Roll forming machine name |
Color Sheet Double Layer Roll Forming Machine Double Deck Roll Forming Equipment |
| Brand of plc | Delta |
| Material of rollers | High grade 45# steel with 0.05mm chormed |
| Material of shafts | Soild high grade 45# steel |
| Diameter of shaft | 75mm |
| Material of blade | Cr12 ateel |
| Transmission | Chain |
| Motor voltage | 380V 50Hz 3P or customized |
| Motor kw | 5.5kw |
| Cutter system | Automatic Hydraulic cutter system |
| Hydraulic pump kw | 7.5kw |
| Machine base frame | Steel channel welding with four supported legs |
| Raw material | ppgi |
| Thickness of raw material | 0.3-0.8mm |
Advantage
The metal system is accurate and solid, and will not move over time or with changes in temperature.
There is a wide range of stud widths from 50mm to 146mm to meet varying requirements.
It is a fast and clean system to erect that allows services to pass through easily.
All sections fit together easily and door frames are formed very simply.
Payment terms
30% in advance as down payment
70% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
