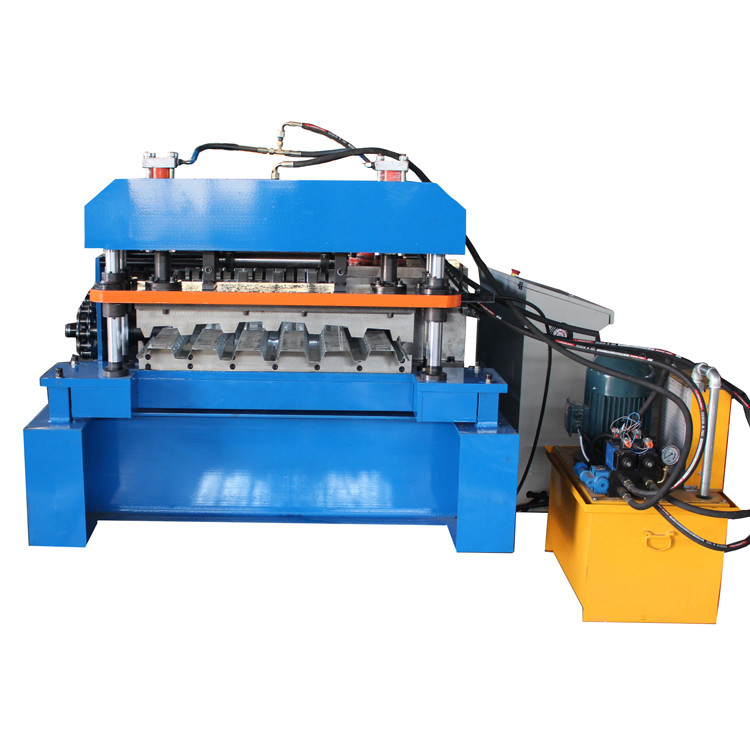

Metal Steel Sheet Decking Floor Production Roll Forming Line
Metal Steel Sheet Decking Floor Production Roll Forming Line
CANGZHOU FAMOUS INTERNATIONAL TRADING CO., LTD. was established in 1995.Our company is a comprehensive enterprise intergrating production,sales and service.We are mainly devoted to the development and manufacturing of metal plate cold bending roll forming equipment.
Our business ablity
Till now,we have export to more than 50 countries and areas.Tha main market is South America,Africa,middel east,eastern Europe,Southeast Asia.We also take part in different exhibitions all over the world.
Decoiler-------Feeding-------Roll forming-------Cutting------Finished product
Specification
| Raw material | |
| material spec | colored steel sheet, galvanized steel sheet, aluminum sheet |
| thickness of coil sheet | 0.8-1.2 mm |
| material expand width | 1000mm |
| Efficiency width | 720mm |
| Machine details | |
| roller material | High grade NO. 45 forged steel with 0.05mm hard chrome plating |
| shaft material | High grade NO. 45 carbon wrought steel |
| cutting blade | Cr12 mould steel with quenched treatment |
| diameter of shaft | 100mm |
| forming steps | 23 rows |
| productivity | 20-25m/min |
| hydraulic station power | 22 KW |
| hydraulic pressure | 10-12MPa |
| controlling system | famous PLC computer control |
| material of cutting table | Cr 12 mould steel with quenched treatment |
| appearance size | 11600mm*1500mm*1510mm |
| hydraulic oil | 40# hydraulic oil |
| Electric tension | 380V 50 Hz 3 Phase or as your requirements |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
