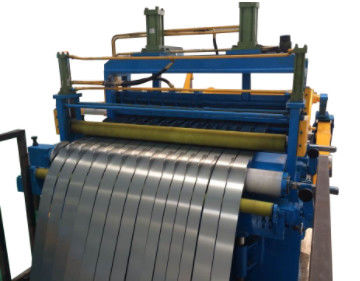

30m/Min Steel Coil Cut To Length And Slitting Line With Decoiler And Recoiler

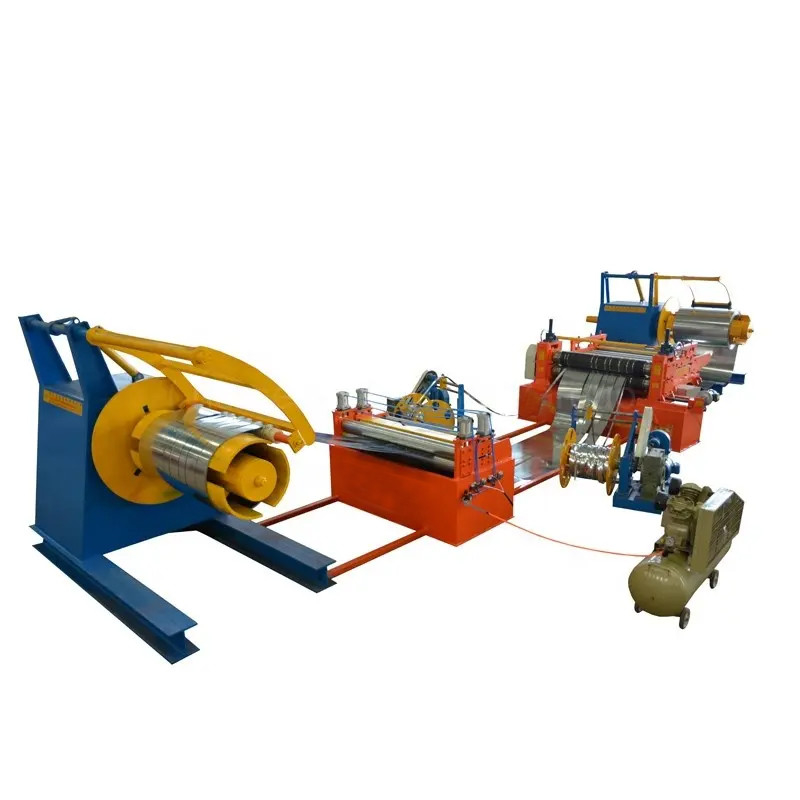

30m/Min Steel Coil Cut To Length And Slitting Line With Decoiler And Recoiler consists of three main parts: a decoiler, a slitter, and a rewinder. As the material is fed through the nip between the two circular cutting wheels (one at the top and the other below), it is re-wound in the slit covering on the recoiler. Equipment suppliers and end users must work together to determine the appropriate components, shank size, tool kit, horsepower, and tension for the material being cut.
Specifications
| Weight | about 10T |
| Suitable Material | GI PPHI |
| Width of Raw Material | Maximum 1250mm |
| Thickness of Raw Material | Maximum 2mm |
| Productivity | 30m/min |
| Total Power | 20KW |
| Voltage | 380V 50Hz 3Phases |
| Control System | PLC Control |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 60 working days after the down payment is received.
