उत्पत्ति के प्लेस:
चीन (महाद्वीप
ब्रांड नाम:
CANGZHOU WILLING
प्रमाणन:
ISO CE
मॉडल संख्या:
फ़्लोरडेक
वीडियो
वीडियो
वीडियो

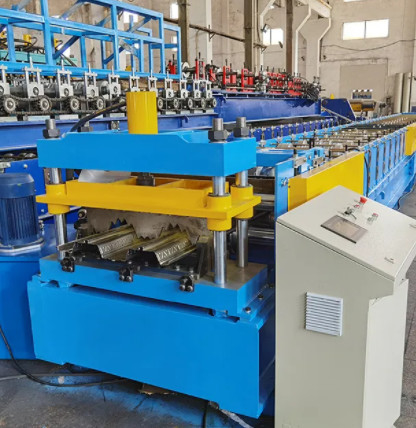

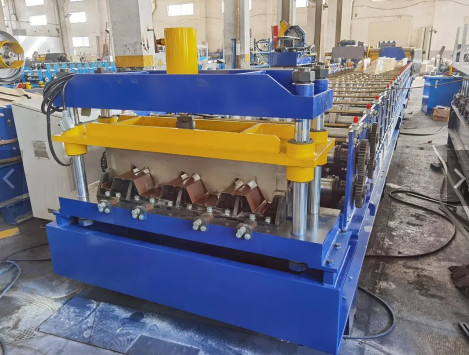

PLC Control Automatic Metal Floor Deck Roll Forming Machine

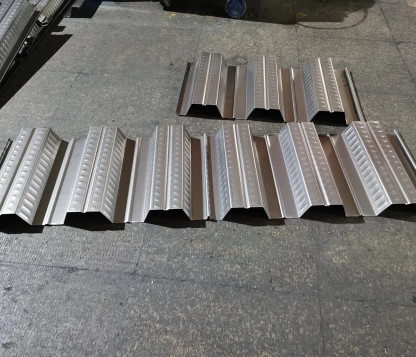

The roof deck is typically used as a structural component. The floor deck is made of cold formed steel plates. The floor deck in the roof and floor system is used to support the concrete or insulation film of the roof. Its design and construction amplify the characteristics of steel.
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.8-1.5mm |
| 3 | Working Speed | 3-5 m/min ( not including the cutting time) |
| 4 | Roller Station | 16-18 Raws |
| 5 |
Dimension (L*W*H) |
7500 mm*1500 mm*1500 mm |
| 6 | Machine Weight | 5800 KG |
| 7 |
Electrical Control System |
Panasonic PLC (can be customized) |
| 8 |
Drive Motor Power |
7 KW |
| 9 |
Hydraulic Station Power |
5 KW |
| 10 |
Power Supply |
240V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
70 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
The floor deck combination machine is suitable for various irregular floor structures and has a very prominent application field in different types of prefabricated panels, high-speed railway structures, and buildings. There are many advantages to using floor decks, which can help users save installation costs and reduce the difficulty of disassembly. At the same time, it can also save decoration time.
Advantage
The material selection of the floor forming machine is economical, and the comprehensive cost advantage is particularly obvious. That is to say, this product is very effective, and its product can improve the quality and efficiency of laying; This device is also suitable for laying on large boards and can be placed over a large range. Reduce construction costs and help users save on decoration costs; After using the equipment, it can also reduce the construction period and reduce the cost of on-site installation.
The floor deck is convenient for transportation, installation, and erection, which can help with the workload of on-site steel reinforcement work and reduce the workload of on-site disassembly. At the same time, the power distribution of the board of directors is more reasonable, making it easy to ensure construction quality.
