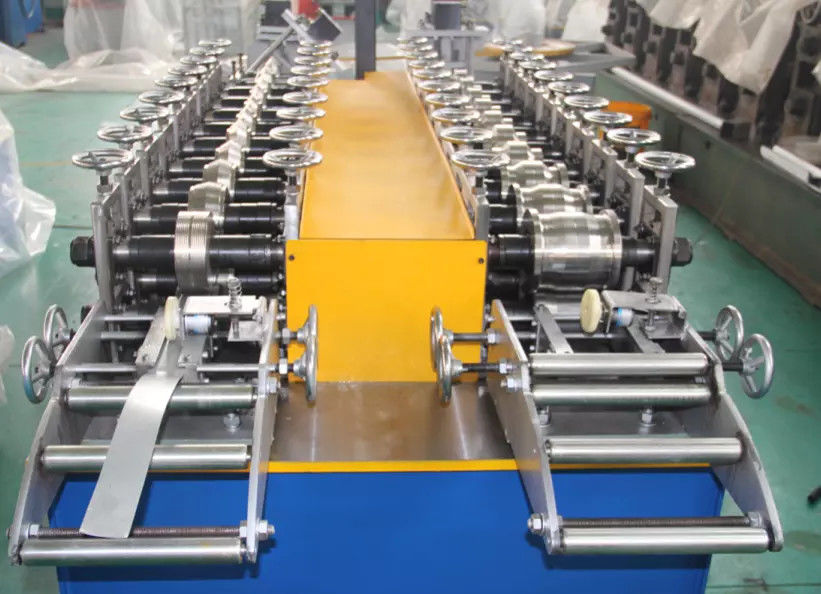

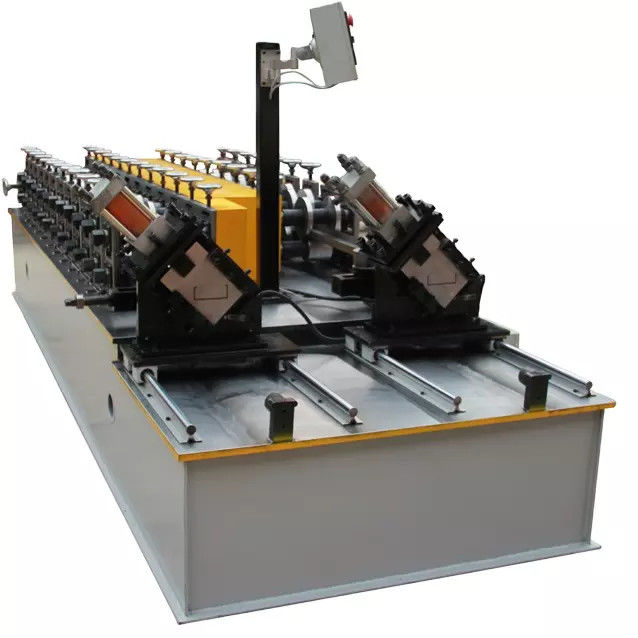

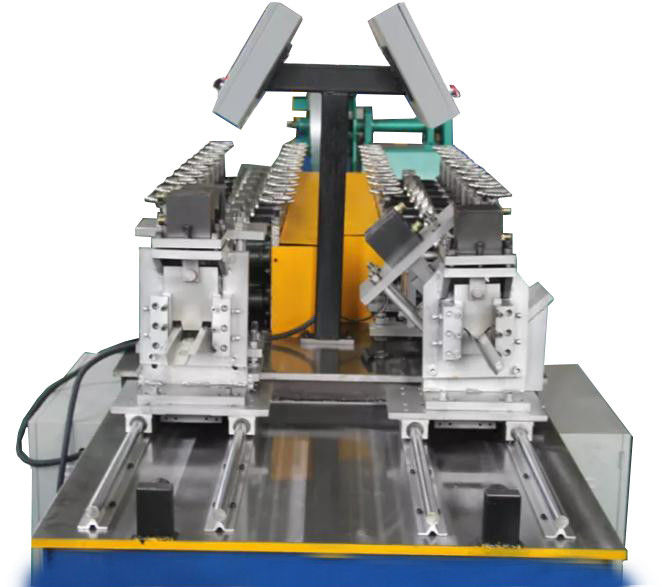

Double Head Light Gauge 0.3-0.8 Steel Roll Forming Machine Make Drywall Profiles
Double Head Light Gauge 0.3-0.8 Steel Roll Forming Machine Make Drywall Profiles is combined with the C profile roll molding machine and the Omega roll molding machine. Because it has an independent control system, it can work alone, so two lines of work at the same time.
Specification
| No. | Item | Description |
| 1 | Coil | PL,GL,PPGL,PPGI |
| 2 | Raw Material Thickness | 0.3-0.8mm |
| 3 | Working Speed | 14-20m/min |
| 4 | Roller Station | 13 /16Raws |
| 5 |
Dimension (L*W*H) |
6000 mm*1500 mm*1500 mm |
| 6 | Machine Weight | 5500 KG |
| 7 |
Electrical Control System |
PLC (can be customized) |
| 8 |
Drive Motor Power |
7.5 KW |
| 9 |
Hydraulic Station Power |
5 KW |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
60 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
Due to the characteristics of fast disassembly, time-saving and labor-saving, light weight, long service life, good stability, convenient transportation, multiple disassembly and assembly, beautiful appearance, and sturdy structure, light steel structures are widely used in daily life
Advantage
Cangzhou FMS has a long history in producing rolling machines. Decades ago, their technical experience was consolidated through a flexible hydraulic punch system called 'soft punching'. Since then, Cangzhou FMS has produced several systems to meet the constantly changing industry needs. We have a team of professionals with many years of experience and a good track record, which can bring you some advanced and innovative energy, and this is also the case.
