उत्पत्ति के प्लेस:
चीन (महाद्वीप
ब्रांड नाम:
FMS
प्रमाणन:
ISO CE
मॉडल संख्या:
ईपीएस साइड पैनल
वीडियो
वीडियो
वीडियो

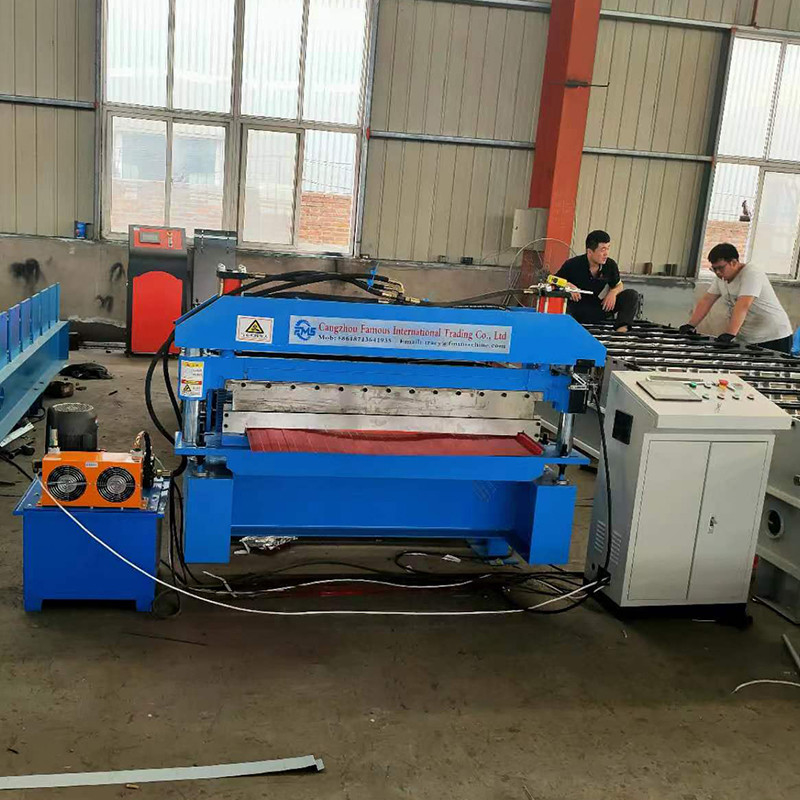

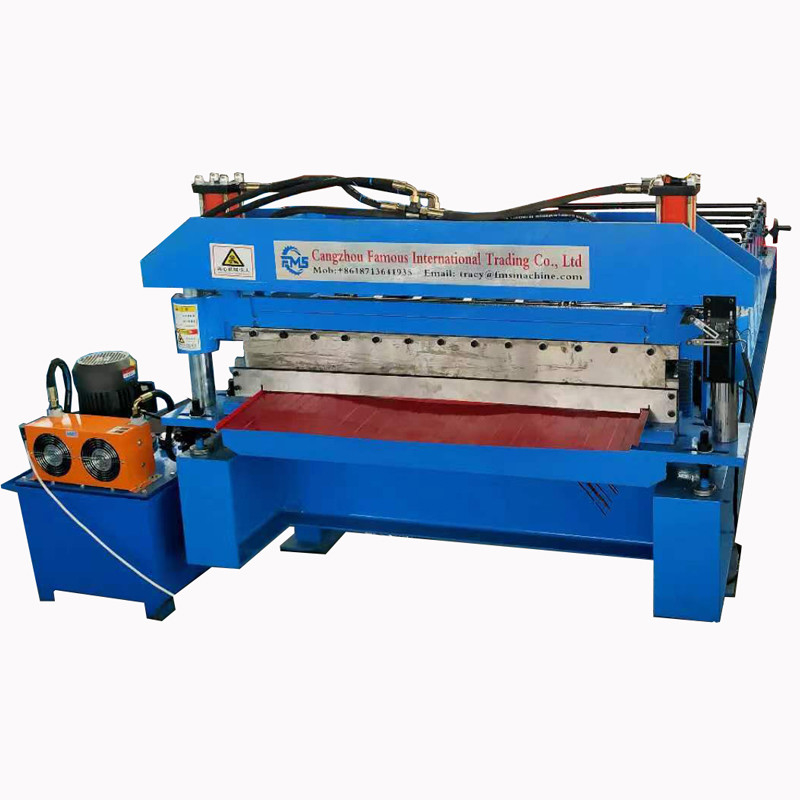

High Accuracy Hydraulic Post Cutting EPS Side Panel Roll Forming Machine
High Accuracy Hydraulic Post Cutting EPS Side Panel Roll Forming Machine is accompanied by the efficient integration of PLC control system,equip with hydraulic cutting system, and fully automatic post-shearing system. So as to efficiently meet the different needs of customers
the profile can be made according to customer requirement.
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.3-0.8mm |
| 3 | Working Speed | 20-30 m/min ( not including the cutting time) |

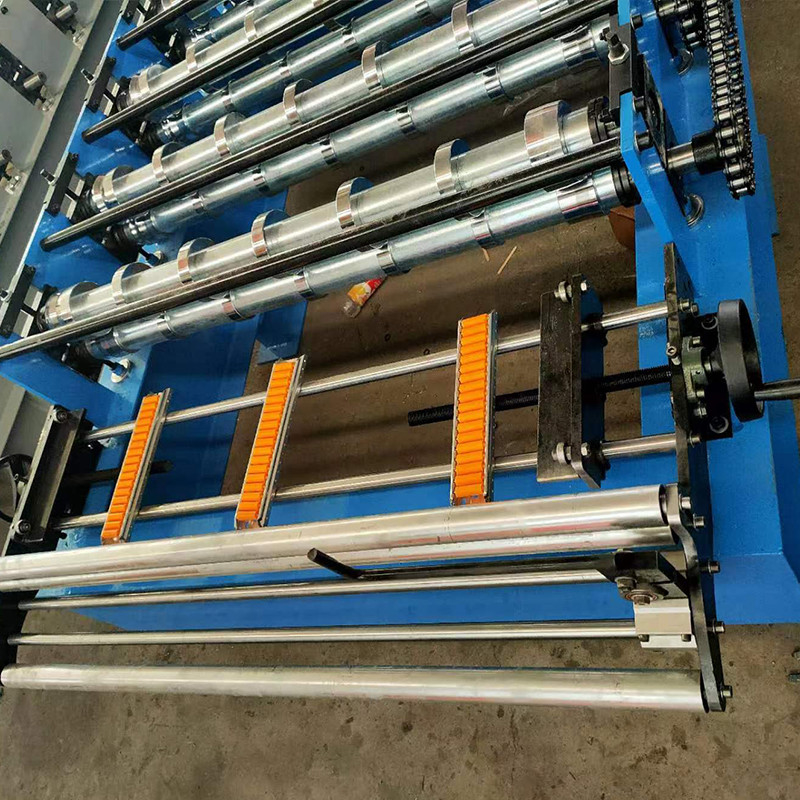

| 4 | Roller Station | 6 Row |
| 5 |
Dimension (L*W*H) |
3500 mm*1200 mm*1100 mm |
| 6 | Machine Weight | 2900 KG |
| 7 |

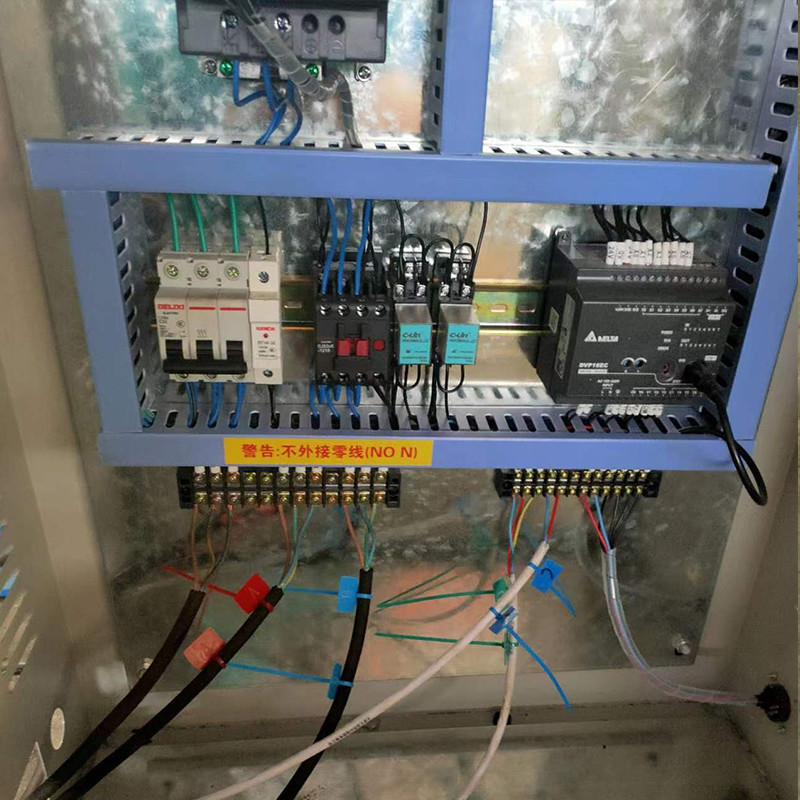

Electrical Control System |
Delta PLC (can be customized) |
| 8 |
Drive Motor Power |
3.5KW |
| 9 |

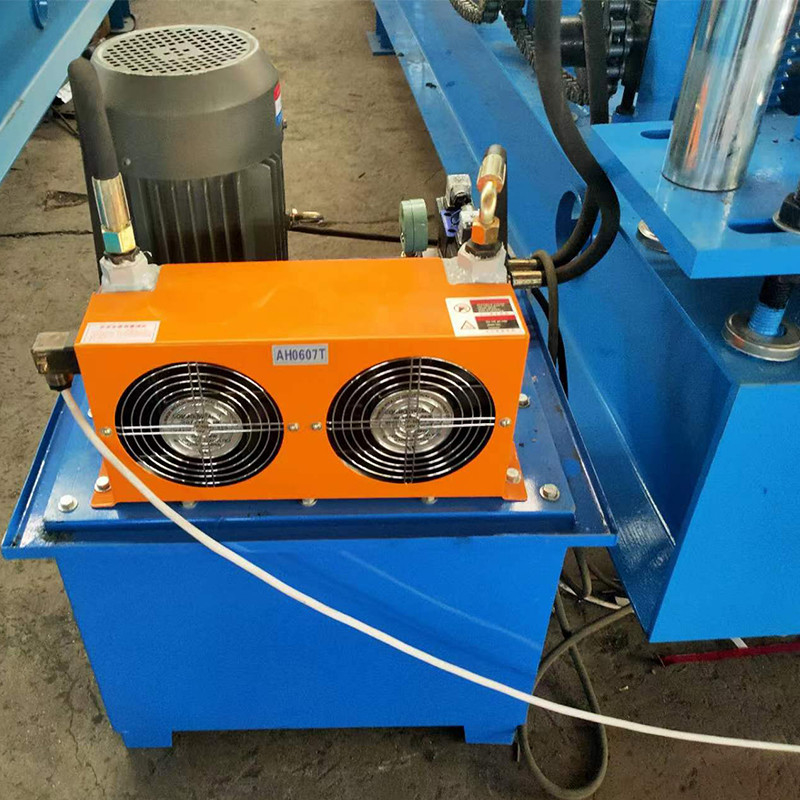

Hydraulic Station Power |
3.5KW |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
70 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
High Accuracy Hydraulic Post Cutting EPS Side Panel Roll Forming Machine is made side panel which is using for eps sandwich panel . due to it have good looking ,long service life ,high quality , it widely used in workshop wall and roofing , shopping mall wall and roofing , garage wall and roofing etc.
Advantage
The advantages of EPS side panel are good corrosion resistance, bright colors, beautiful appearance, convenient processing and forming, and have the advantages of the original strength of steel plates and low cost.
