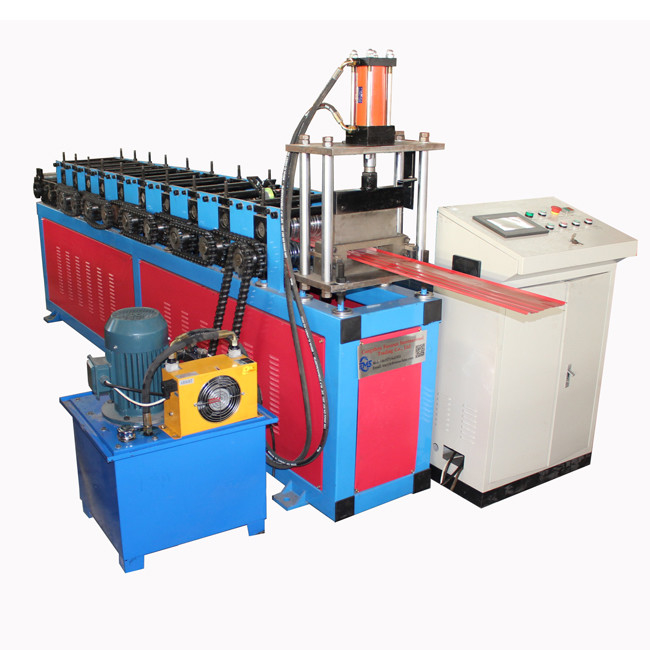

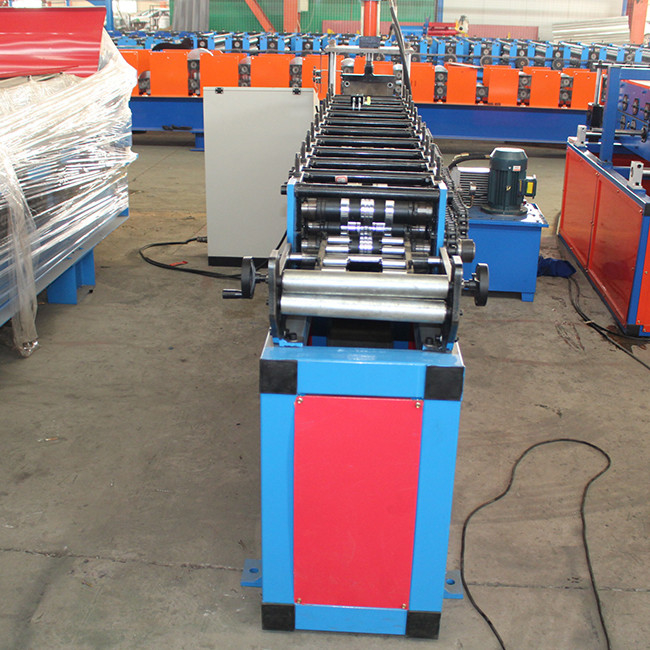

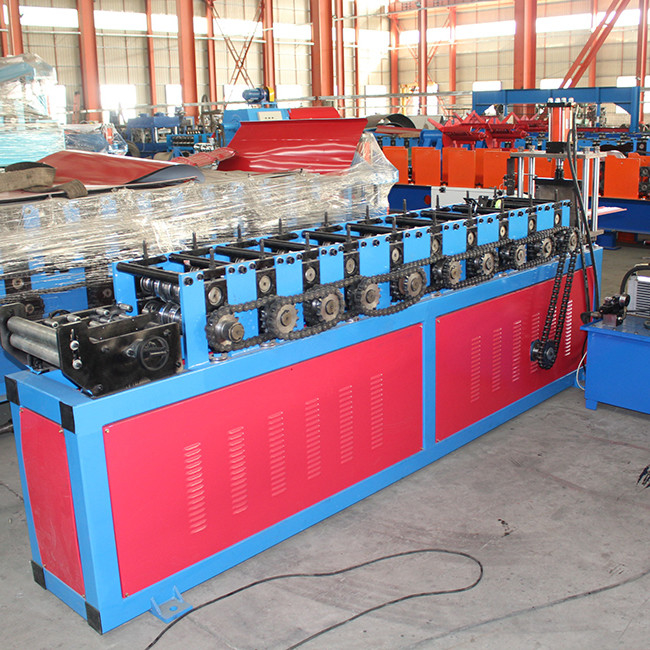

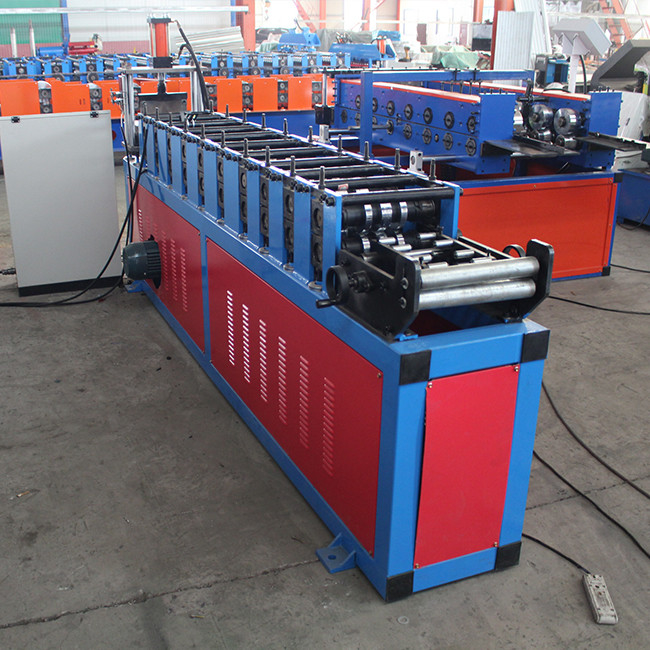

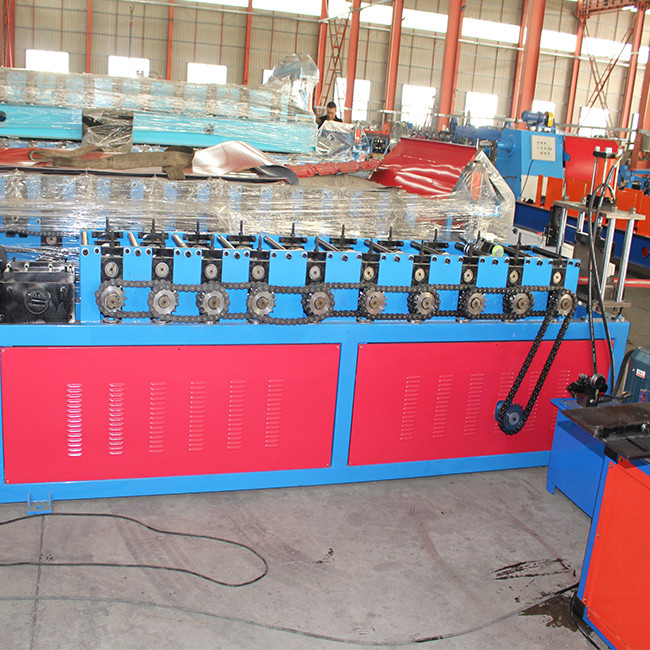

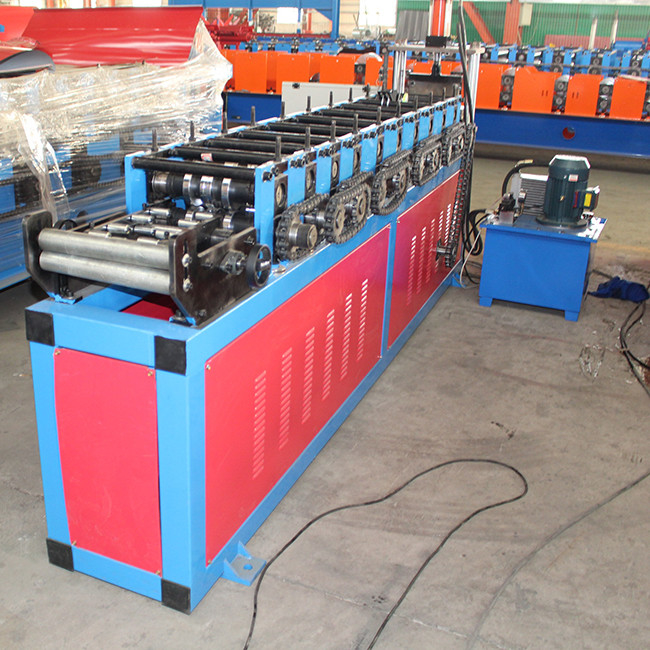

Metal Steel Picket Fence Garden Fence Cold Roll Forming Machine
Cangzhou famous cold roll forming machinery is a professional manufacturer and exporter that are concerned with the design, development and production of cold roll forming machines.
It is located in botou city. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on.
the Picket Fence roll forming machine is the perfect machine jointly designed by our company through various departments. the product produce by it Applying to decorative places such as courtyard fences ect
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.3-0.8mm |
| 3 | Working Speed | 20-30 m/min ( not including the cutting time) |
| 4 | Roller Station | 6 Row |
| 5 |
Dimension (L*W*H) |
3500 mm*1200 mm*1100 mm |
| 6 | Machine Weight | 2900 KG |
| 7 |
Electrical Control System |
Delta PLC (can be customized) |
| 8 |
Drive Motor Power |
3.5KW |
| 9 |
Hydraulic Station Power |
3.5KW |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
70 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
High Accuracy Hydraulic Post Cutting Picket Fence Roll Forming Machine is made side panel which is using for eps sandwich panel . due to it have good looking ,long service life ,high quality , it widely used in workshop wall and roofing , shopping mall wall and roofing , garage wall and roofing etc.
Advantage
The advantages of picket fence are good corrosion resistance, bright colors, beautiful appearance, convenient processing and forming, and have the advantages of the original strength of steel plates and low cost.
