उत्पत्ति के प्लेस:
चीन
ब्रांड नाम:
cangzhou fms
प्रमाणन:
CE,ISO
वीडियो
वीडियो

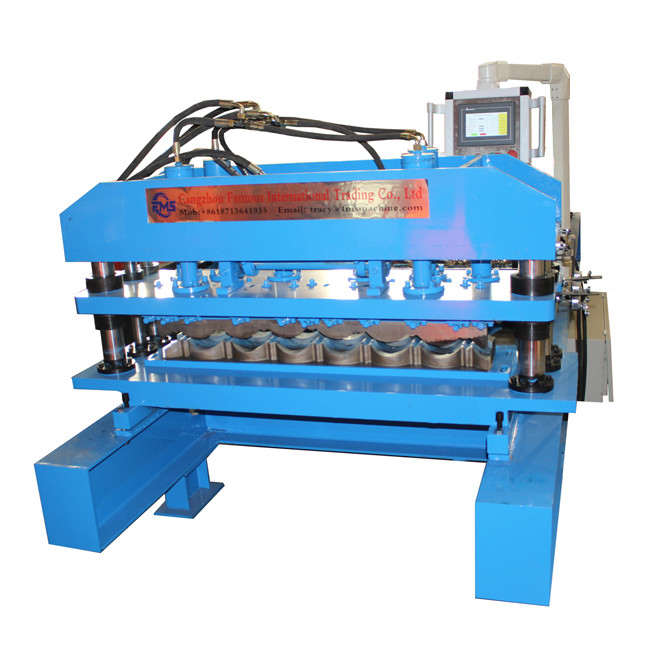

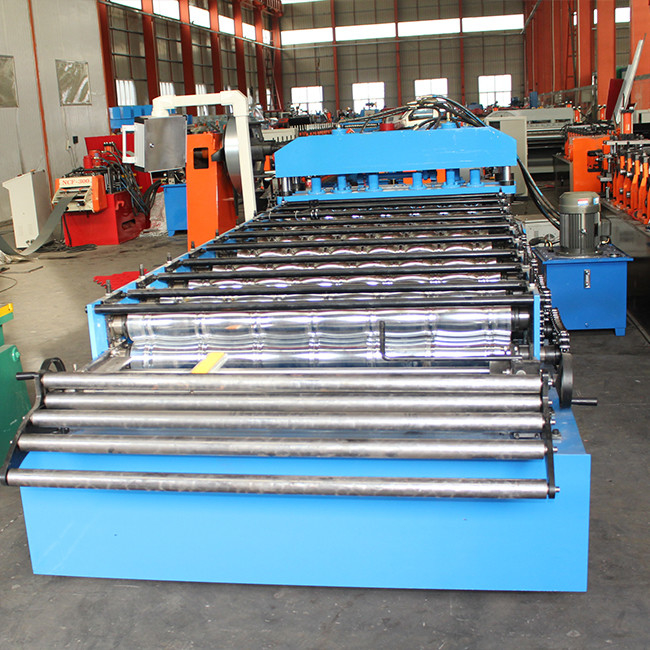

Glazed Tile Step Tile Roll Forming Machine Color Steel Roof Making Machine
Cangzhou Famous is a leading manufacturer of cold roll forming machines. We manufacture and supply roofing sheet forming machines, shutter door roll forming machines, C U Purlin roll forming machines and so on . We export our machines to countries such as South Africa, the Middle East, Europe, and so on.
the 3D Cutting Glazed roll forming machine suitable raw material thickness is 0.3mm-0.8mm, working speed can reach 5 meters per min,Due to the beautiful appearance and convenient installation, the machine has been selling well all around the world
|
Suitable material
|
Strip steel
|
|
Working speed
|
1- 3 m/min
|
|
Main motor power
|
7.5 kw
|
|
Hydraulic station power
|
4 kw
|
|
Thickness of material
|
0.3-0.8 mm
|
|
Roller station
|
16 stations
|
|
Driving mode
|
Chain
|
|
Electric tension
|
380 V /3 phase/ 50 HZ
|
|
Material of roller
|
45# forged steel
|
|
Material of cutting
|
Cr12
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
