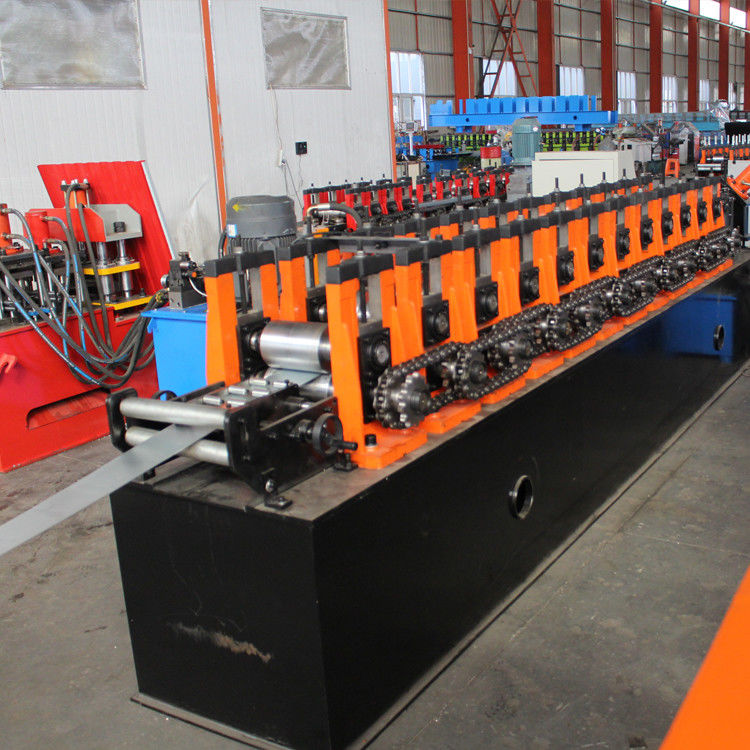

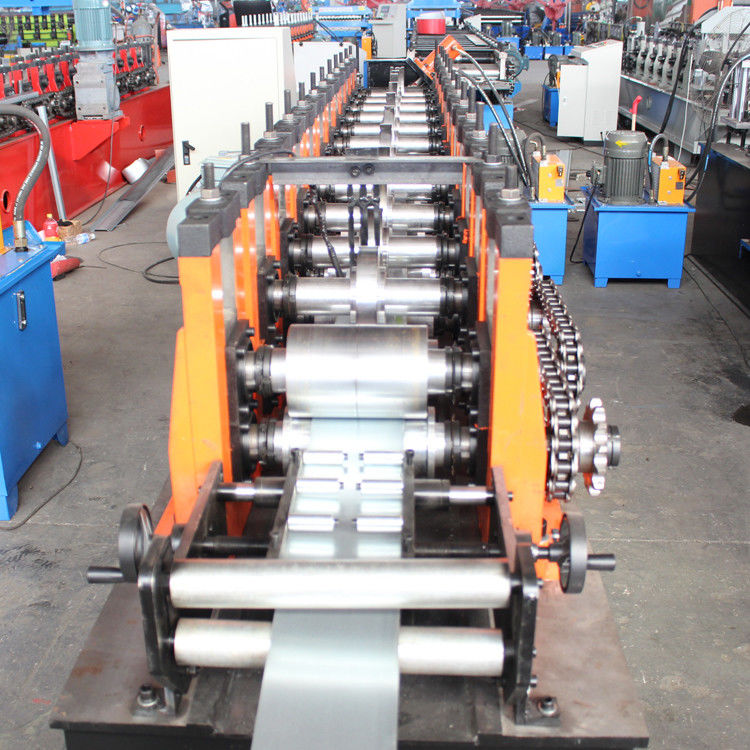

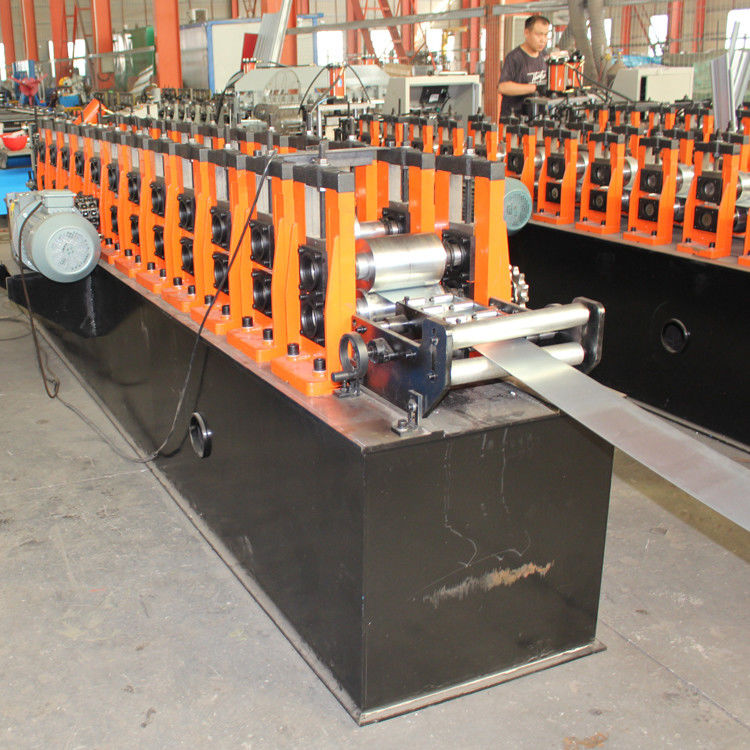

Roller shutter channel U shape channel roll forming machine
Specification
|
No
|
Item
|
Specification
|
||
|
|
Raw material
|
GI or PPGI
|
||
|
Material thickness
|
0.7-1.2MM
|
|||
|
|
Roller material
|
High grade 45# steel with Cr12 quenched
|
||
|
Shaft material
|
High grade 45# steel with Cr12 quenched
|
|||
|
Shaft diameter
|
50mm
|
|||
|
Roller stations
|
14
|
|||
|
Middle plate thickness
|
16mm
|
|||
|
Machine size
|
5*0.8*1.2m
|
|||
|
Productivity
|
8-15m/min
|
|||
|
|
Material
|
GCR12
|
||
|
Method
|

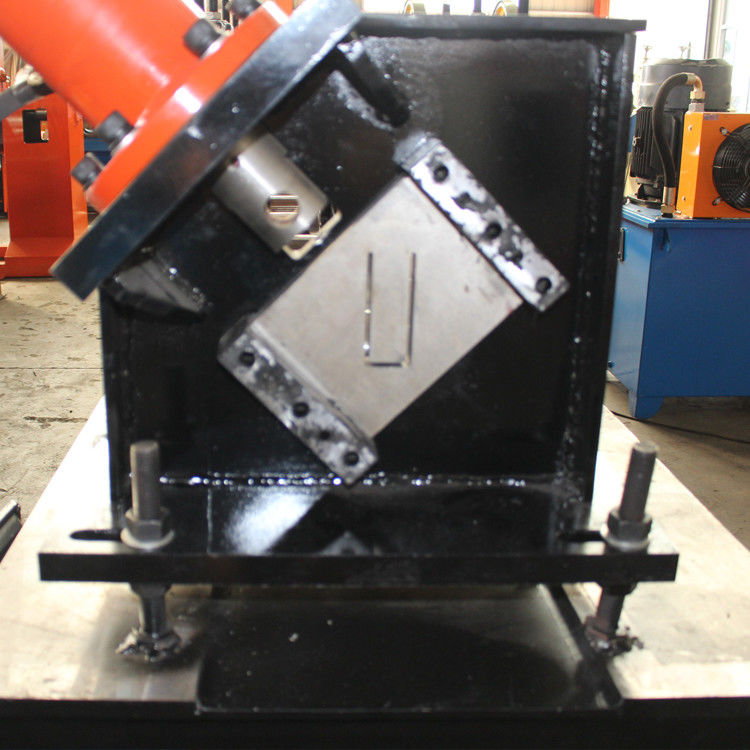

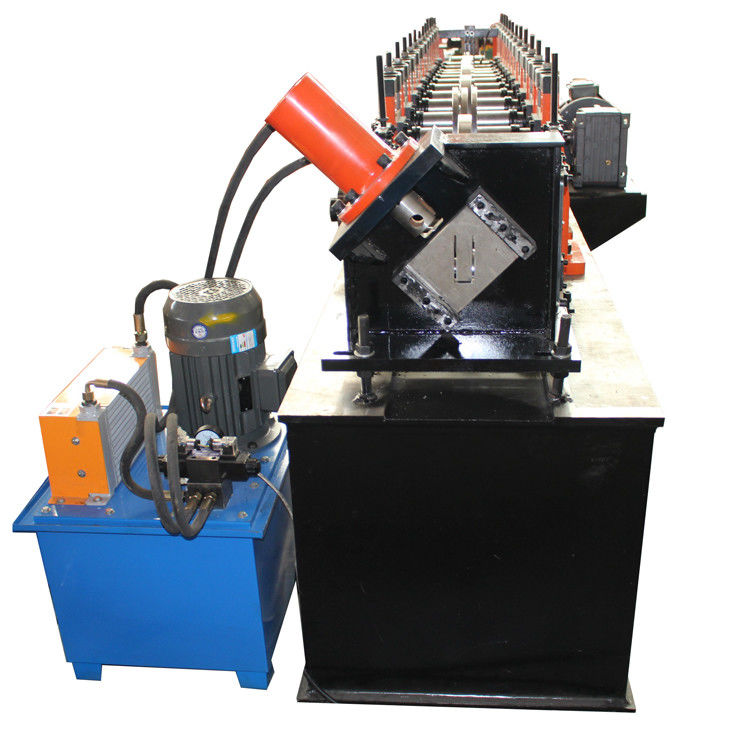

Hydraulic cutting
|
|||
|
|
Driving way
|
Chain 1.2 inch
|
||
|
Motor
|
4KW
|
|||
|
Hydraulic oil pump
|
3KW
|
|||
|
Voltage
|
380V,50HZ ,3 phase or customized as your need
|
|||
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
