उत्पत्ति के प्लेस:
चीन
ब्रांड नाम:
FMS
प्रमाणन:
CE,ISO
वीडियो
वीडियो

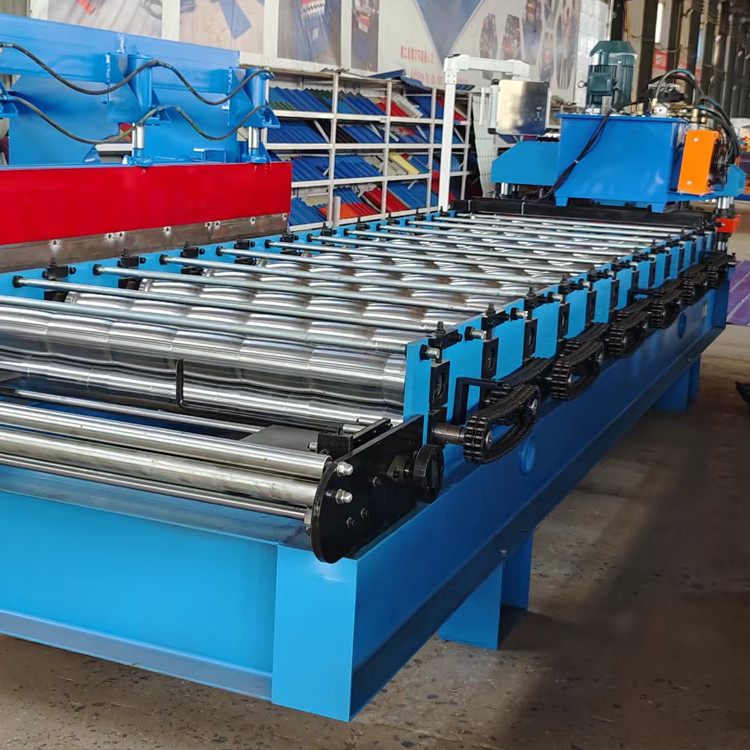

Glazed tile Eccentric arc roofing sheet roll forming machine
Cangzhou Famous is a leading manufacturer of cold roll forming machines. We manufacture and supply roofing sheet forming machines, shutter door roll forming machines, C U Purlin roll forming machines and so on . We export our machines to countries such as South Africa, the Middle East, Europe, and so on.
the 3D Cutting Glazed roll forming machine suitable raw material thickness is 0.3mm-0.8mm, working speed can reach 5 meters per min,Due to the beautiful appearance and convenient installation, the machine has been selling well all around the world
| Steel roofing tile glazed tile roll forming machine Step tile sheet machine | ||
| 1 | Main frame | 250mm H-sections |
| 2 | Side board thickness | 14mm |
| 3 | Main motor power | 4kw |
| 4 | Power supply | 380V 50Hz 3phases |
| 5 | Shaft number | 3 rows |
| 6 | Shaft material | Carbon steel 45# |
| 7 | Shaft diameter | 70mm |
| 8 | Rolling wheel material | Carbon steel 45# with chrome plated |
| 9 | Hydraulic pump motor power | 4kw |
| 10 | Chain size | 33mm |
| 11 | Control system | PLC Delta inverter |
| 12 | Production rate | 4-8m/min |
| 13 | Feeding tiles | Formed tiles |
| 14 | Finished specification | According to the formed tiles |
| 15 | Overall size | 3000*1300*600mm |
| 16 | Total weight | About 0.5 Ton |
|
*Parameters above is the standard configuration *Parameters can be designed as per your special requests. |
||
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
