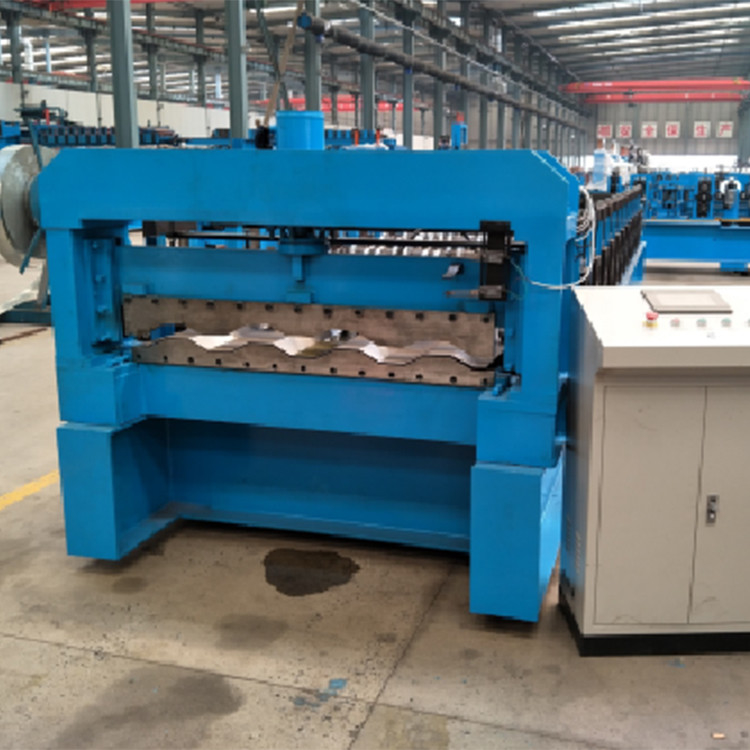

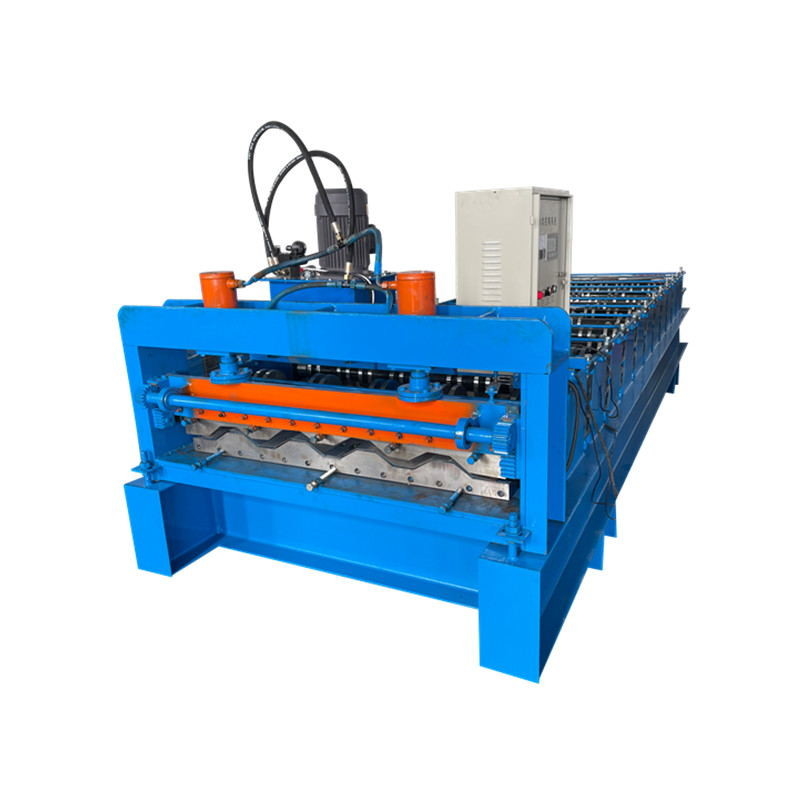

Thick Container Board roll forming machine with hydraulic cutting
cold roll forming machine can bend the roll formed pipe, and let the drainpipe and the bending connect to be the whole.The product after roll forming has long working time than the tranditional ppc pipe, and not aging. It can make the project more integrate,and help to enhance the image of the all project.
Due to the qualitative light, high strength, convenient construction, earthquake, fire prevention, waterproof, long life and free maintenance etc. just like high forming speed, low noise, stable transmission, easy operation, good appearance and so on.
Specification
|
No.
|
main parameter of car panel roll forming machine
|
||
|
1
|
Hydraulic Station Power
|
4KW | |
|
2
|
Hydraulic Oil Pump
|
CB-E310
|
|
|
3
|
Yield Strength
|
32MPa | |
|
4
|
Processing Speed
|
8-12m/min | |
|
5
|
Material of Blade
|
Cr12
|
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
|
7
|
Productivity
|
8-12m/min
|
|
|
8
|
Coil Width
|
1000/1200mm/1220mm/1250mm and so on.
|
|
|
9
|
Weight
|
About 5.8 T
|
|
|
10
|
Voltage
|
380V 50Hz 3phases
|
|
|
11
|
Cover Width
|
according to the drawing
|
|
|
12
|
Equipment Parts
|
forming machine, hydraulic cutter hydraulic station, PLC , equipment base and linear transducer .
|
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
