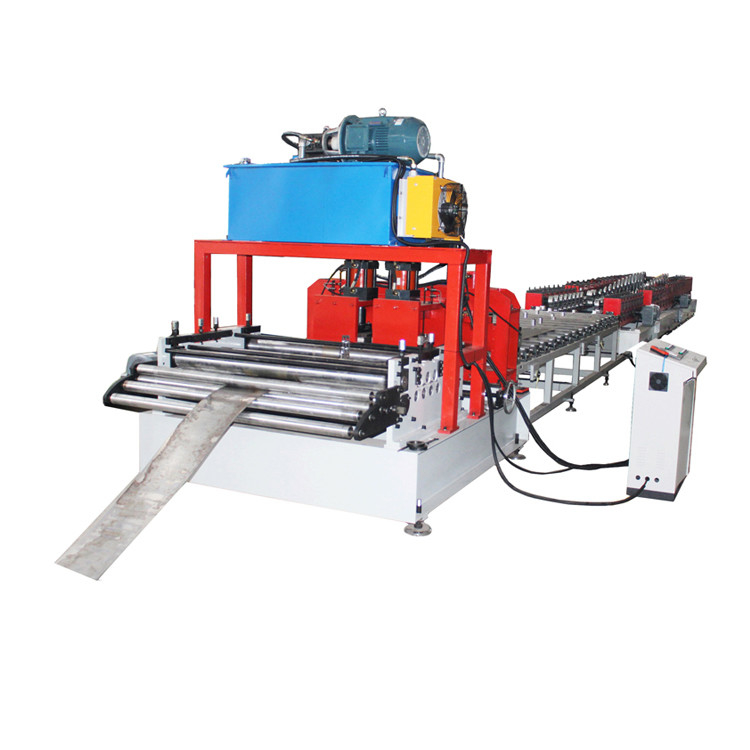

Size Changeable PLC Control CT100-600 Cable Tray Production Line
Cable tray roll former has light duty and heavy duty type. And it is also has linear sizes and fixed sizes, with punching and without punching. It is all depends on your requirements. Today i will introduce Cangzhou FMS heavy duty type for you. Heavy Duty cable tray roll former is a kind of equipment for making cable tray by various material. In the electrical wiring of buildings, a cable tray system is used to support insulated electric cables used for power distribution and communication. Cable trays are used as an alternative to open wiring or electrical conduit systems, and are commonly used for cable management in commercial and industrial construc
specifications
| Material Spec | colored steel sheet, galvanized steel sheet |
| main motor power | 7.5 kw |
| forming speed | 10-15m/min |
| Diameter of roller | 70 millimeter |
| Thickness of Coil Sheet |
0.3-0.8 millimeter |
| the width of the colored sheet | as per requested |
| the effective of steel sheet | as per requested. |
| Hydraulic station pressure | 3 kw |
| Hydraulic pressure | 10 - 12Mpa |
| Total Weight | about 5500 kg |
| Voltage | 380 volt/3PH as per requested |
| Roll stand | 22 Roller station |
| PLC | overseas Brand |
| Dimension | 11.4m*1.3m*1.2m |
| Roller material | #45 steel |
| Frequency converter | containing |
| Computer operating screen | touch screen |
| Material of cutter | Cr12 |
Application

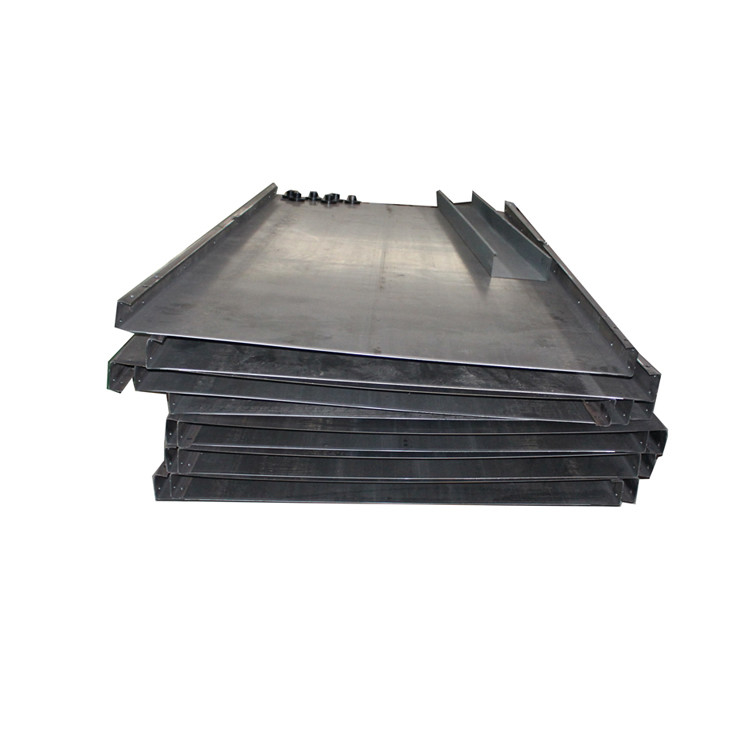

Cable tray is used to support and protect when wire electricity, electric power, communication control and instrumentation cable.
FMS compose this machinery as a cassette replacement type or automatic width control type in accordance with product.
And we supply equipment that is suitably designed for the use of product which can be formed after perforating a partition and other panels.
1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2) Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. AOFA is ALIBAB’s Gold supplier with BV assessment and CE certificate.
4) Q: What can you do if the machine broken?
A: Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
5) Q: Can you be responsible for transport?
A: Yes,please tell me the destination port or address.we have rich experience in transport.
6) Q: Can you supply the raw materials?
A: Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.
