उत्पत्ति के प्लेस:
चीन
ब्रांड नाम:
FMS
प्रमाणन:
CE
मॉडल संख्या:
केबल ट्रे
वीडियो
वीडियो
वीडियो
वीडियो

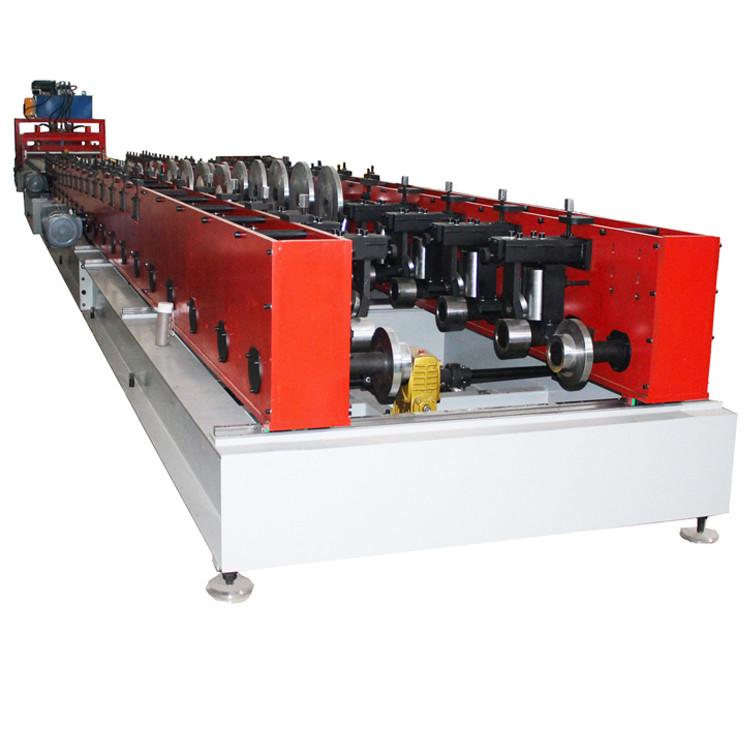

Full Automatic Production Line Perforated Type Cable Tray Roll Forming Machine
Ventilated tray is made of ladder side,bottom plate and cross arm.they are made of profiles materials. The length of the standard is 2m per session. Long-span distance is 6m per session.
Profile material are made of aluminium alloy& stainless steel& Galvanized steel.
Main cable ladders range are designed to be a cost effective cable support system for high volumes of heavy weight cables. they can support very high loads, over long spans and provide cable laying depths from 200 up to 800 mm.
specifications
| Material Spec | colored steel sheet, galvanized steel sheet |
| main motor power | 7.5 kw |
| forming speed | 10-15m/min |
| Diameter of roller | 70 millimeter |
| Thickness of Coil Sheet |
0.3-0.8 millimeter |
| the width of the colored sheet | as per requested |
| the effective of steel sheet | as per requested. |
| Hydraulic station pressure | 3 kw |
| Hydraulic pressure | 10 - 12Mpa |
| Total Weight | about 5500 kg |
| Voltage | 380 volt/3PH as per requested |
| Roll stand | 22 Roller station |
| PLC | overseas Brand |
| Dimension | 11.4m*1.3m*1.2m |
| Roller material | #45 steel |
| Frequency converter | containing |
| Computer operating screen | touch screen |
| Material of cutter | Cr12 |
Application
Cable tray is used to support and protect when wire electricity, electric power, communication control and instrumentation cable.
FMS compose this machinery as a cassette replacement type or automatic width control type in accordance with product.
And we supply equipment that is suitably designed for the use of product which can be formed after perforating a partition and other panels.
Advantage
1. Full automatic steel cable tray production line.
2. As a manufacturer, we could delivery more faster, 10days for a 20ft container.
3. Competitive price, comparing with the distributor and warehouse, we are more cheaper.
4. Faster and effective solution to problem.
5. Using PLC control system for cutting the sizing products.
