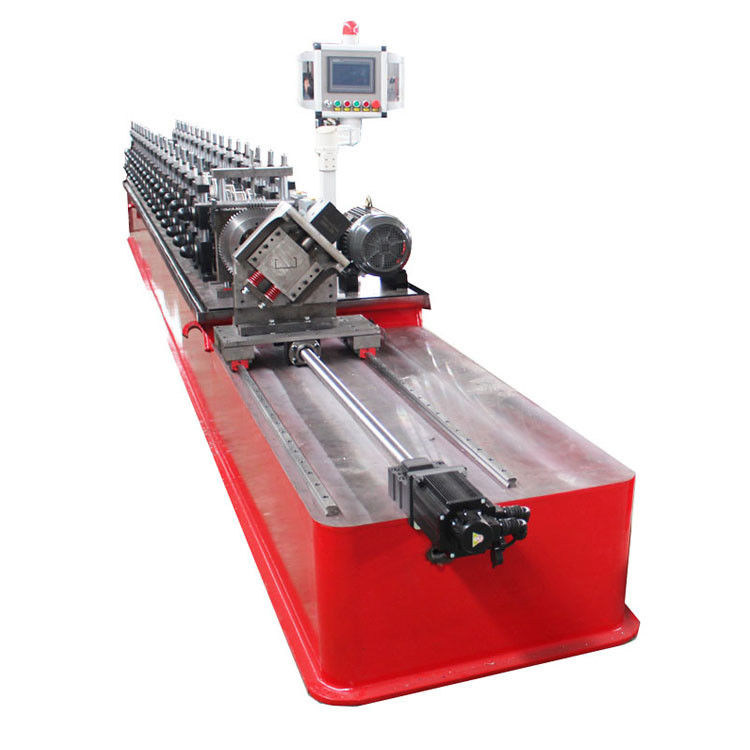

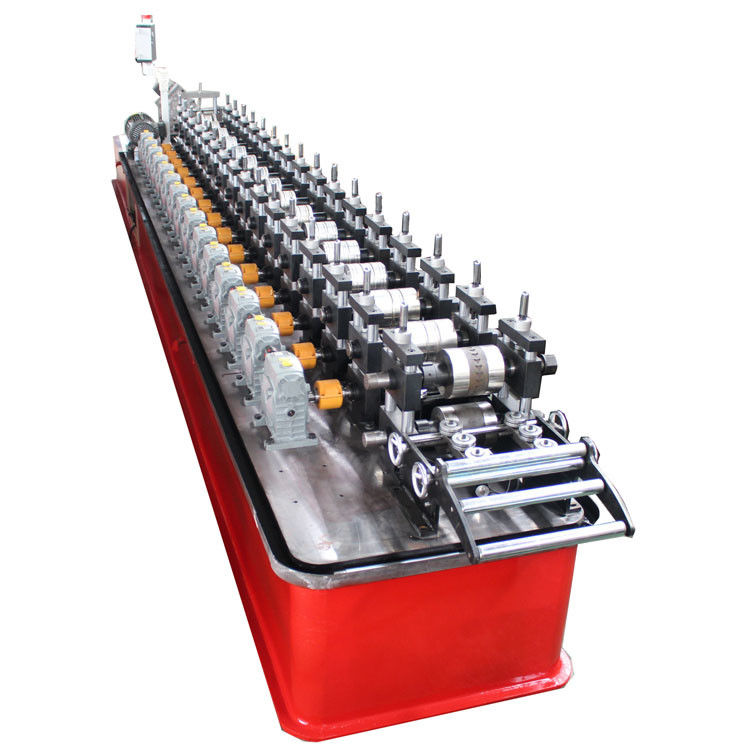

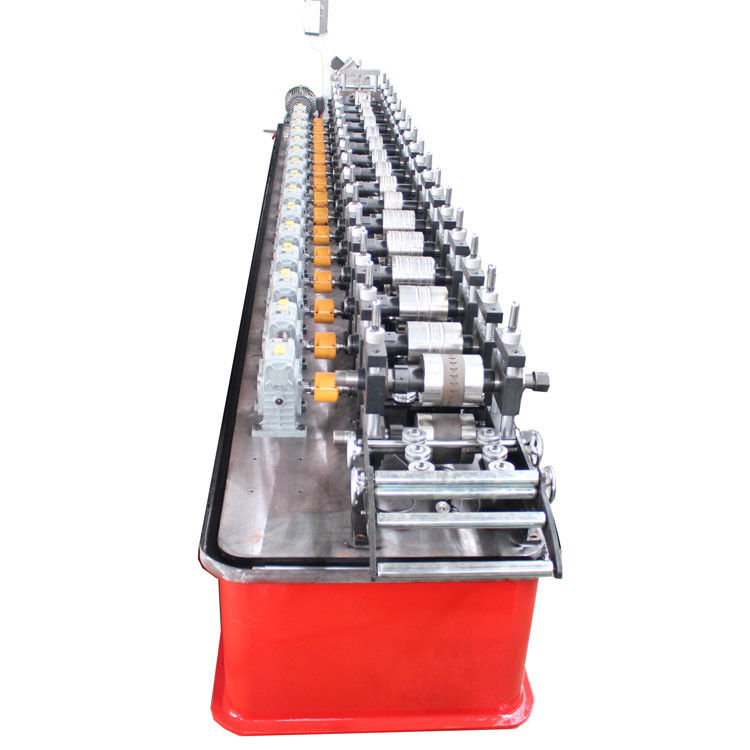

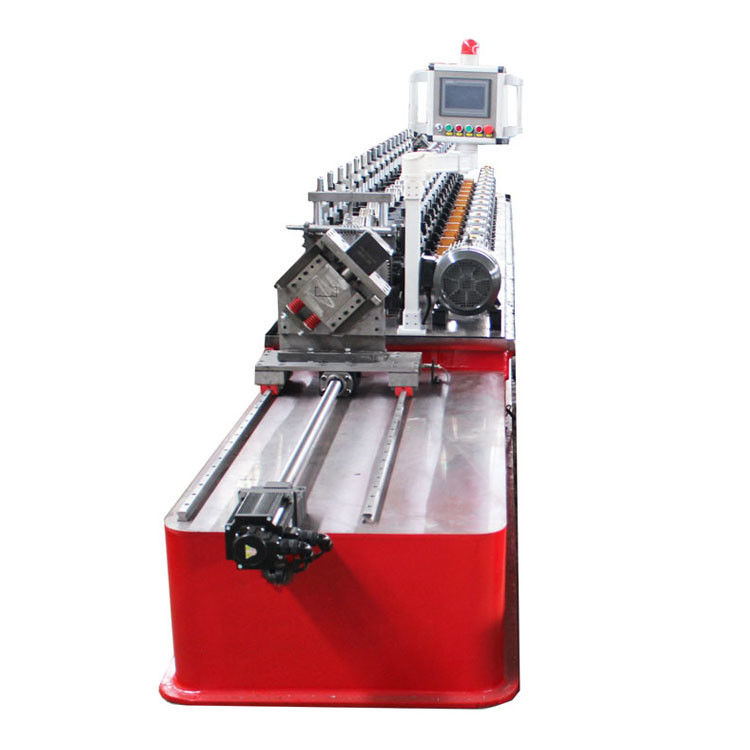

Flying Cut System High Speed C Channel Roll Forming Machine Ppgi
As a leading manufacturer of roll forming machines in China, Cangzhou Famous's shutter door channel machine has high quality, long service life, easy operation, and excellent after-sales service that has won the appreciation of customers around the world.
Combined with a decoiler and receiving table, it formed a complete production system. The production line is usually operated by one or two workers.
This machine can work at a speed of 30 meters per minute and the profile can be customized. Additionally, we manufacture other types of roll forming machines, such as roof tiles machines, floor deck machines, purlin machines, guardrail machines, gutter and downspout machines, etc.
Specification
| No. | Item | Description |
| 1 | Core Components | Motor, Engine, PLC |
| 2 | Shaft material | 45#steel hardening and tempering |
| 3 | Cutting Mode | Hydraulic Cutting |
| 4 | Material of shafts | 40Cr steel with tempering |
| 5 |
Cutting length tolerance |
±1.5 mm |
| 6 | Diameter of shafts | φ40mm |
| 7 |
Number of rollers for omega |
11 rollers |
| 8 |
Main power |
3kw |
| 9 |
Power Supply |
380V, 50HZ, 3 PHASES |
| 10 |
Cutting Accuracy |
±2 mm |
| 11 |
Driving Mode |
Single Chain 1 inch |
Application
The light steel keel is a building metal skeleton that is rolled by a cooling process by high-quality continuous hot-dip aluminum zinc strip. The shape decoration of the finished non-loaded wall made of paper gypsum boards, decorative gypsum boards. Suitable for modeling decorations of a variety of building roofs, internal and external walls of the building and the base materials of the hooded ceiling
Advantage
This C Channel Roll Forming Machine is very easy to operate . Customer just need set up the length and piece of C channel that you need on the PLC , then it will start to work . Our C channel machine has two operate way , manual and automatic .
