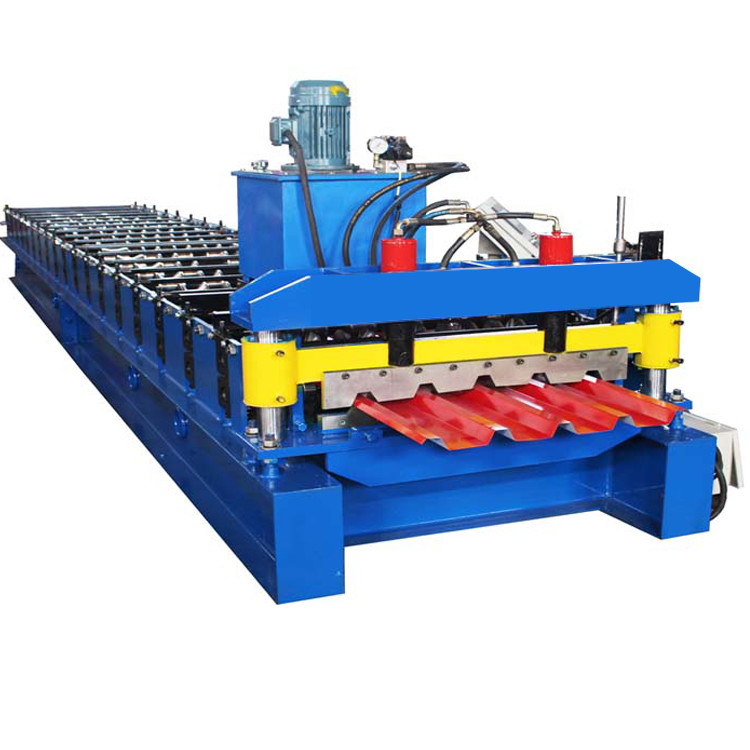

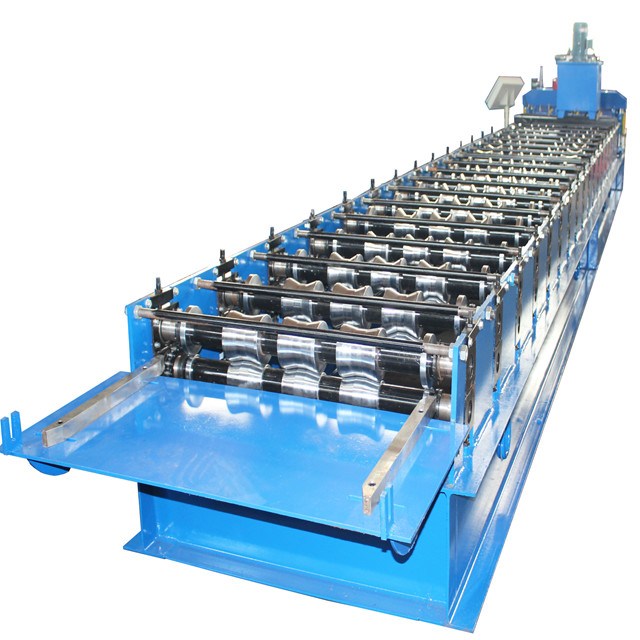

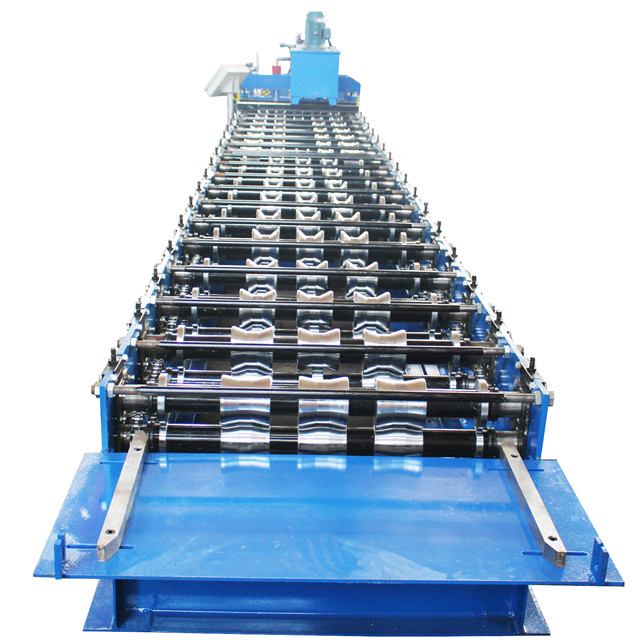

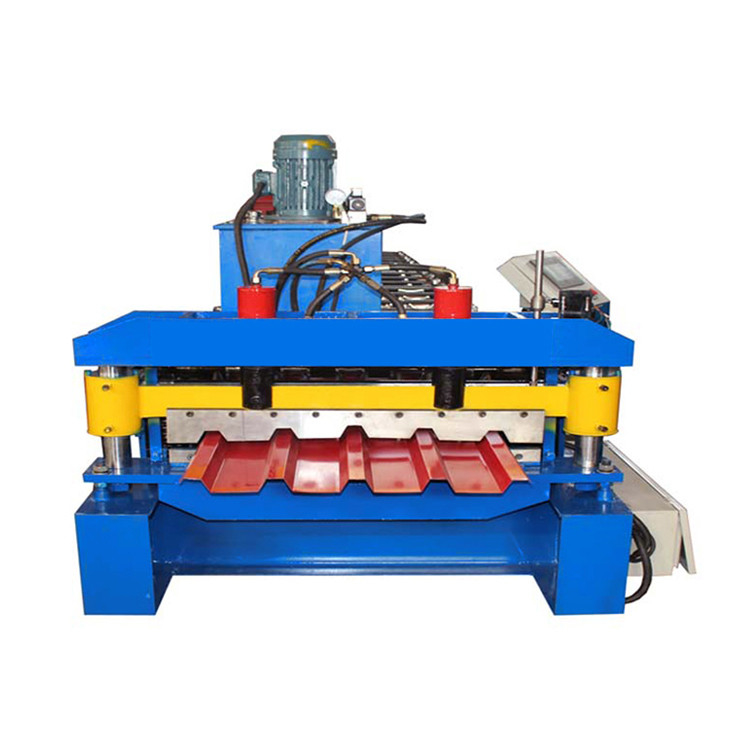

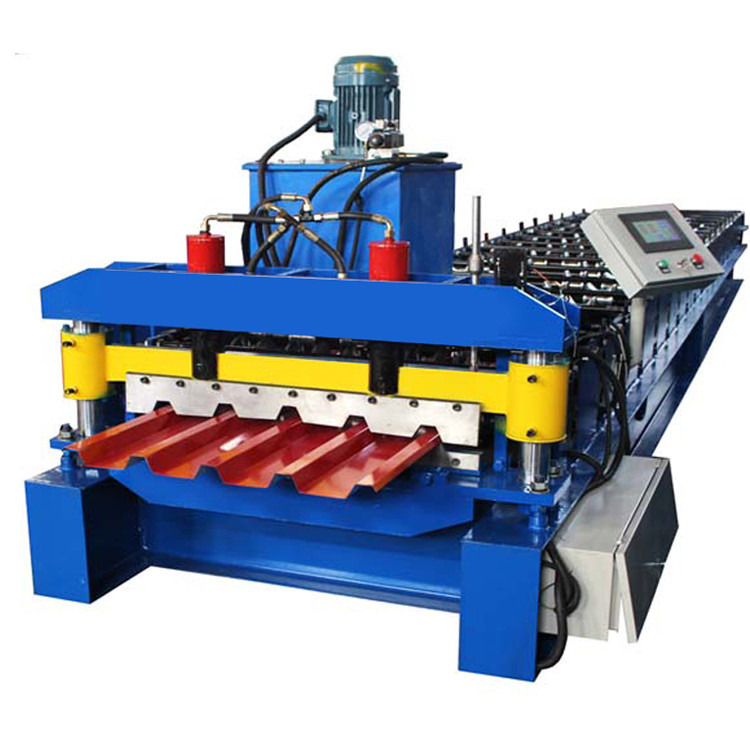

PLC Control 686 IBR Profile Single Layer Roll Forming Machine
Cangzhou famous is a professional manufacturer of cold roll forming machines in China. Under steady guarantee of strong technical resources, the machines produced by our company are widely appreciated around the world.
686 roll forming machine is high-tech product. From profile drawings to assembly drawings to installation drawings. Every link is designed by our technical department.
Due to the high accuracy of cutting and low range tolerance, the product can be perfectly overlapped without any inconsistencies.
In our company, we have a mature after-sale service network, In case of need, we can send technicians to train you on installation and operation
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.3-0.8mm |
| 3 | Working Speed | 15-20/min |
| 4 | Roller Station | 16 Rows |
| 5 |
Dimension (L*W*H) |
8500 mm*1200 mm*1200 mm |
| 6 | Machine Weight | 4800 KG |
| 7 |
Electrical Control System |
Panasonic PLC |
| 8 |
Drive Motor Power |
3 KW |
| 9 |
Hydraulic Station Power |
3 KW |
| 10 |
Power Supply |
380V/60HZ/3 PH |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
70 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
It is suitable for industrial and civil buildings, warehouses, special buildings, large -span steel structured roofs, wall surfaces, and inner and outer wall decoration, etc., with light, high -strength, rich color, convenient construction, earthquake resistance, fire prevention, rainfall, life span, life span The characteristics of long, exempt maintenance have been widely promoted.
Advantage
Light weight: 10-14 kg/square meter, equivalent to 1/30 of brick walls.
Thermal conductivity: λ <= 0.041W/mk.
High intensity: It can be used as a bearing structure of the ceiling enclosure structure, which is bending and pressure;
Bright color: no surface decoration, color-galvanized steel plate anti-corrosion layer is maintained in 10-15 years.
Flexible installation: The construction cycle can be shortened by more than 40%.
Oxygen index: (OI) 32.0 (Provincial Fire Product Quality Inspection Station).
