उत्पत्ति के प्लेस:
चीन
ब्रांड नाम:
cangzhou fms
प्रमाणन:
CE,ISO
मॉडल संख्या:
नालीदार
वीडियो
वीडियो

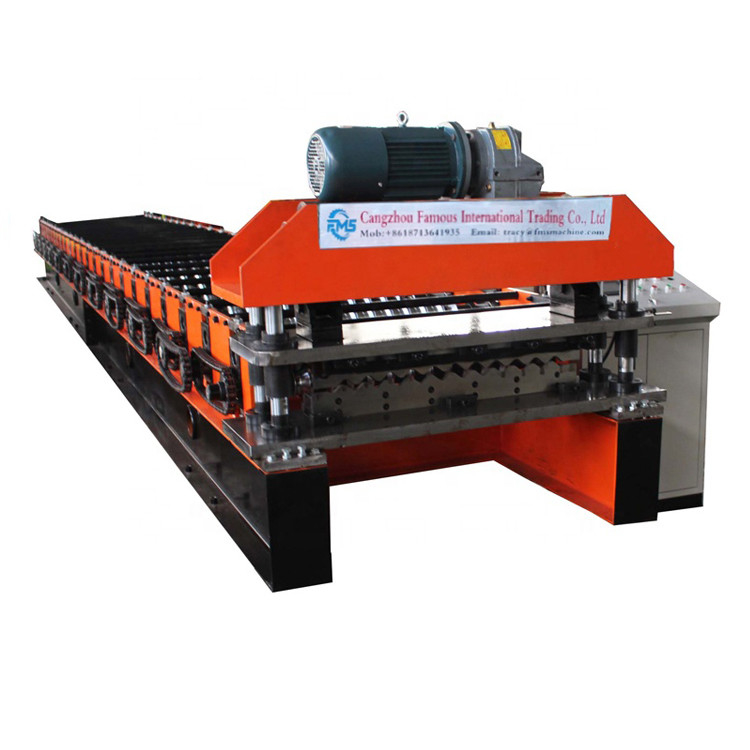

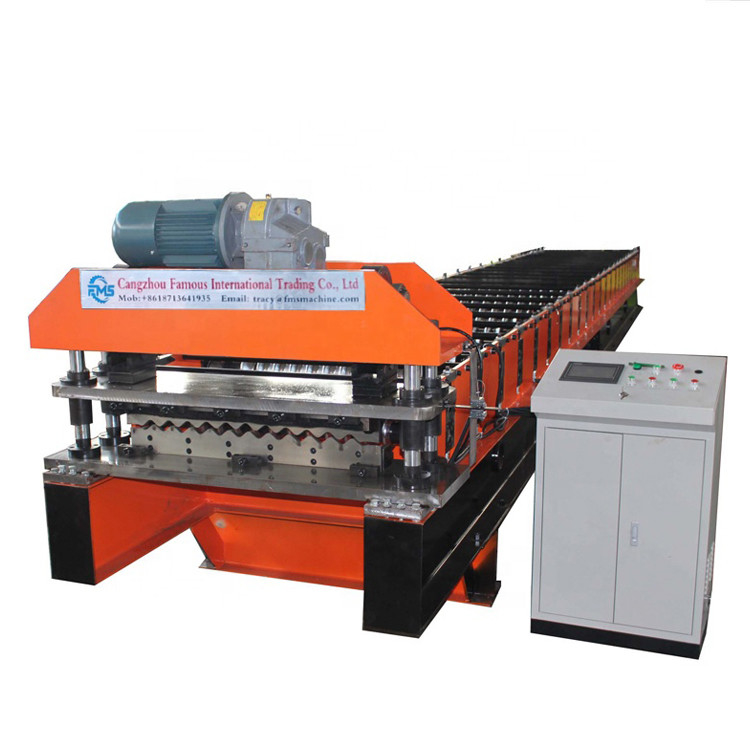

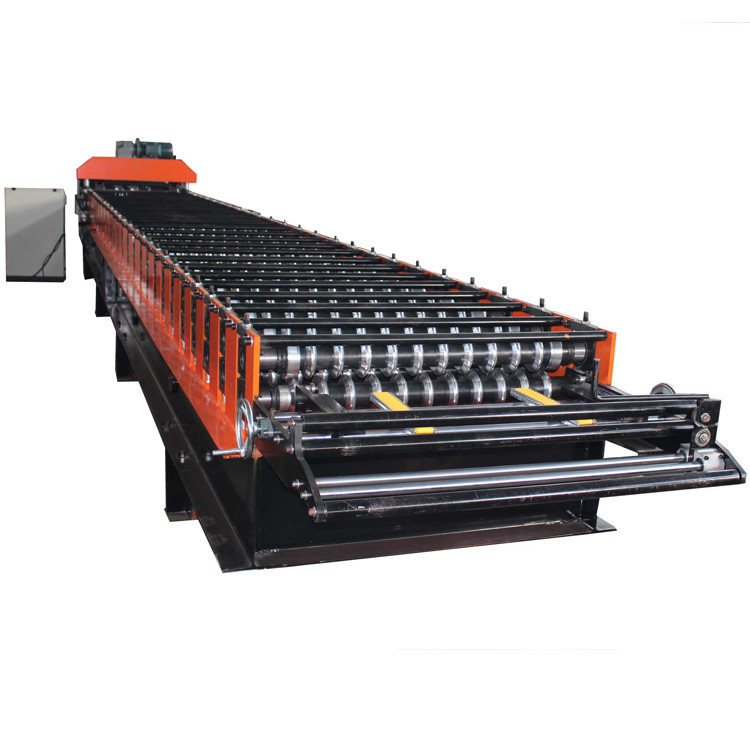

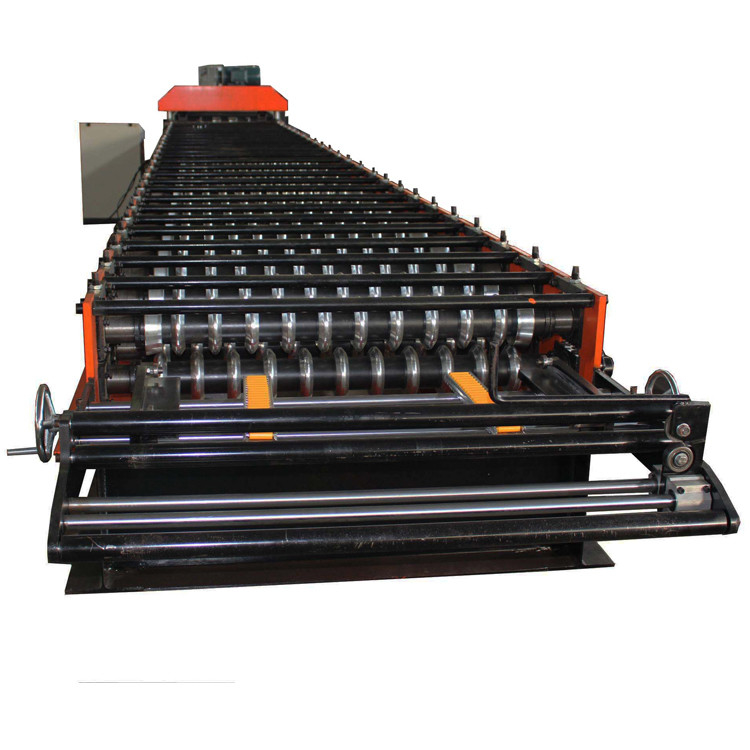

Corrugated Sheet Roll Forming Machine Wave type with high Accuracy cutting
Through a series of steps, this type of corrugated machine produces metal roofing sheets from GI/PPGI. As the motor speed , the length and quantity are controlled by the PLC system, resulting in continuous automatic production, which is ideal for cold roll forming.
| ding host | Model | roof tile making machine |
| Forming machine size | 6500mm*1500mm*1300mm | |
| weight | 3.5T | |
| frame structure | Frame welded | |
| Roll station | 13 row | |
| Shaft materials | 45# steel | |
| Out diameter of shaft | Φ75mm | |
| Roller materials | 45# steel hard chromium plating | |
| Drive | By chain | |
| Sprocket chain | 1 inch | |
| Main power | 5.5 + 4 kw | |
| Working speed | 8-12 m/min | |
| Material thickness | 0.3-0.8mm | |
| Made board | 18mm |
