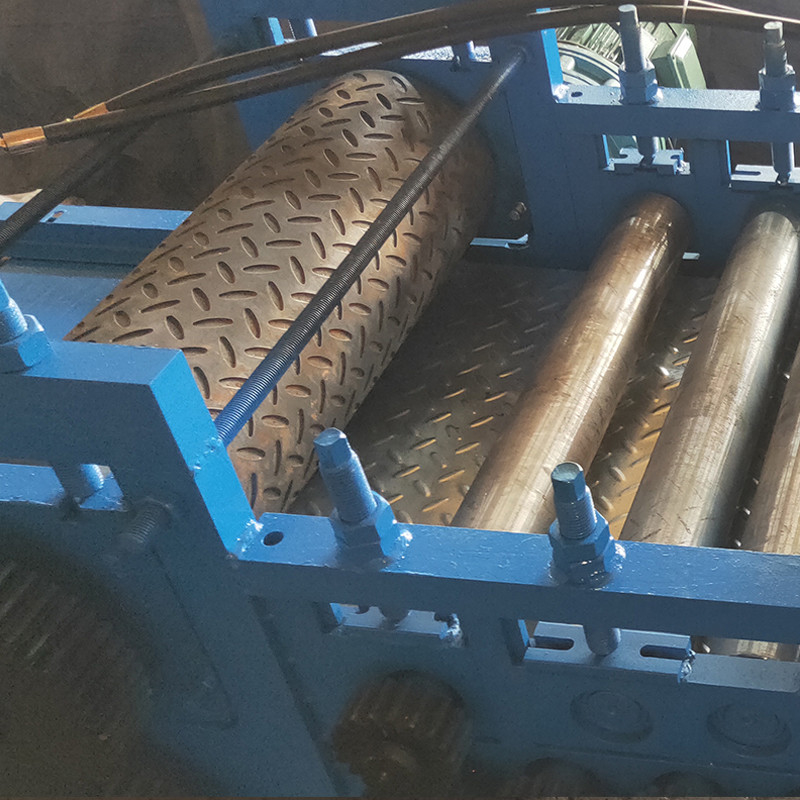

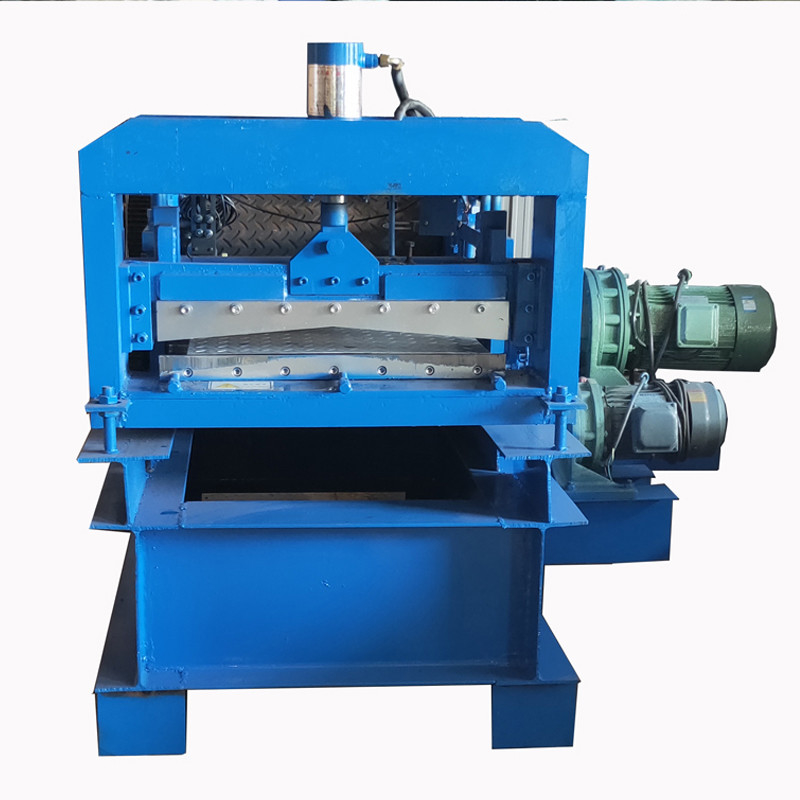

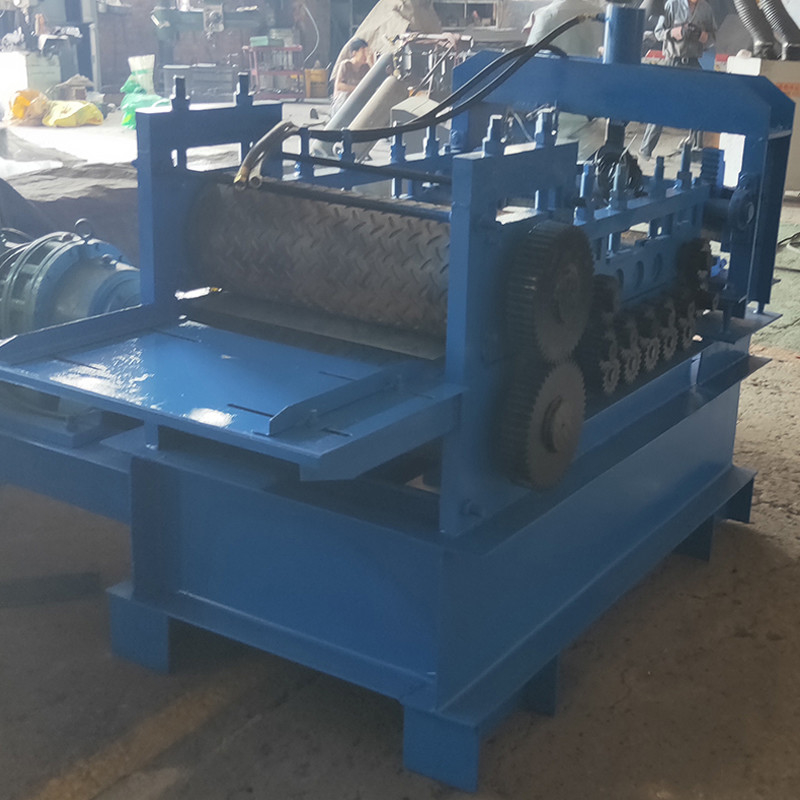

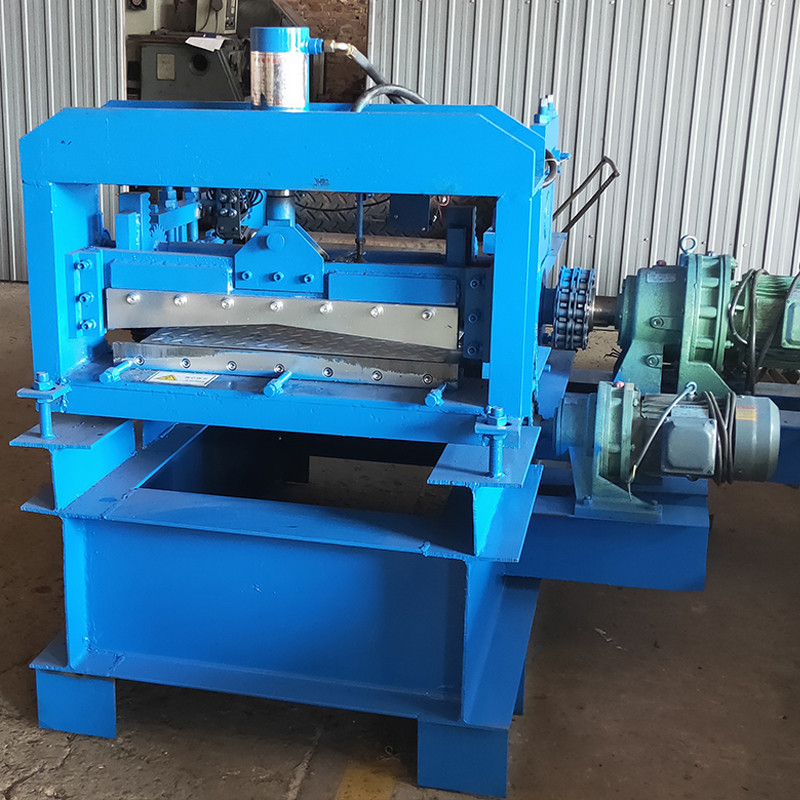

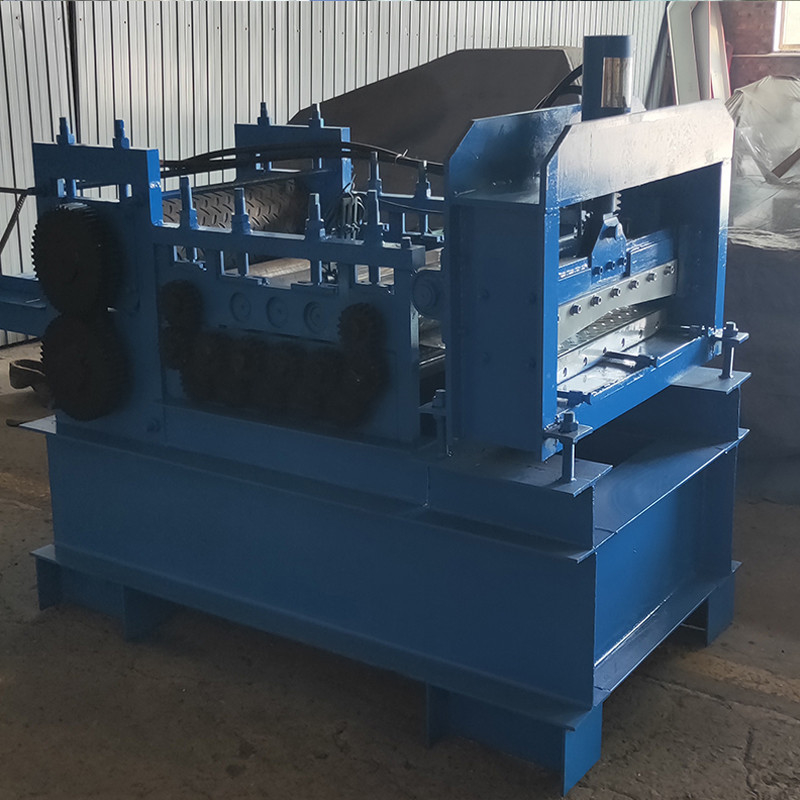

Metal Sheets Steel Plate Diamond Checker Sheet Embossing Machine
embossing machines are mainly for producing embossed aluminum and stainless metal sheets. metal embossing production line is suitable for metal sheet, particle board, decorated materials, and so on. The pattern is clear and has strong third-dimension. It can be assorted with the embossing production line
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 20-30 GA |
| 3 | Working Speed | 3-5 m/min ( not including the cutting time) |
| 4 | Roller Station | 16 Raws |
| 5 |
Dimension (L*W*H) |
7500 mm*1500 mm*1500 mm |
| 6 | Machine Weight | 5800 KG |
| 7 |
Electrical Control System |
Panasonic PLC (can be customized) |
| 8 |
Drive Motor Power |
7 KW |
| 9 |
Hydraulic Station Power |
5 KW |
| 10 |
Power Supply |
240V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
70 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
Small embossing machine, rolling floor deck with lightweight, heavy-duty bearings, beautiful appearance, seamless, good and convenient installation. It has been widely used in power plants, power equipment companies, automobile exhibition halls and steel structure seminars, cement warehouses, steel structure offices, airport docks, train stations, sports stadiums, music halls, music halls, large theaters, large supermarkets, logistics centers, Olympic Games venues, sports stadiums, and many other steel structure buildings
Advantage
1. Stable performance: The steel plate decoiler has uniform feeding speed and high stability.
2. Work: hydraulic synchronization and hydraulic punching system, improve work efficiency, precision and quality of finished products.
3. Good quality of the finished product: the floor deck produced by it is light in weight, heavy in load, and good in performance.
