Galvanized Steel Metal Fence Panel Palisade Fencing Machine Dura Fence Metal For 3 In 1 Machine

Galvanized Steel Metal Fence Panel Palisade Fencing Machine Dura Fence Metal For 3 In 1 Machine

Galvanized Steel Palisade Fencing Machine

Dura Fence Metal Palisade Fencing Machine

3 In 1 Palisade Fencing Machine

उत्पत्ति के प्लेस:

चीन

ब्रांड नाम:

fms

प्रमाणन:

ce

मॉडल संख्या:

बाड़ पैनल

हमसे संपर्क करें
उद्धरण मांगें
उत्पाद विवरण
संचालित तरीका:
जंजीर
मोटाई:
अधिकतम. 1.2 मिमी
नमूना:
XYZ-1000
प्रपत्र गति:
10-15
परिवहन पैकेज:
प्लास्टिक फिल्म, कंटेनर
प्रकार:
टाइल बनाने की मशीन
कटिंग ब्लेड सामग्री:
सीआर 12 मूव
रोलर स्टेशन:
15 स्टेशन
ड्राइव तंत्र:
चेन और गियर
हाइड्रोलिक स्टेशन शक्ति:
5.5 kw
नियंत्रण सिस्टमपीएलसीएम:
पीएलसी
कच्चा माल:
पीपीजीआई / गैल्वेनाइज्ड शीट
मूल:
बोटौ चीन
स्वनिर्धारित:
हाँ
निर्यात बंदरगाह:
तियानजिन पोर्ट
प्रमुखता देना:

Galvanized Steel Palisade Fencing Machine

,

Dura Fence Metal Palisade Fencing Machine

,

3 In 1 Palisade Fencing Machine

भुगतान और शिपिंग शर्तें
न्यूनतम आदेश मात्रा
1
मूल्य
6000-8000
पैकेजिंग विवरण
नंगा
प्रसव के समय
45 दिन
भुगतान शर्तें
टी/टी
आपूर्ति की क्षमता
1000
संबंधित उत्पाद
अच्छा दाम Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line ऑनलाइन वीडियो

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine ऑनलाइन वीडियो

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw ऑनलाइन वीडियो

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine ऑनलाइन वीडियो

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

सबसे अच्छी कीमत प्राप्त करें
हमसे संपर्क करें
86-317-2016816
अब संपर्क करें
उत्पाद वर्णन
Product Description

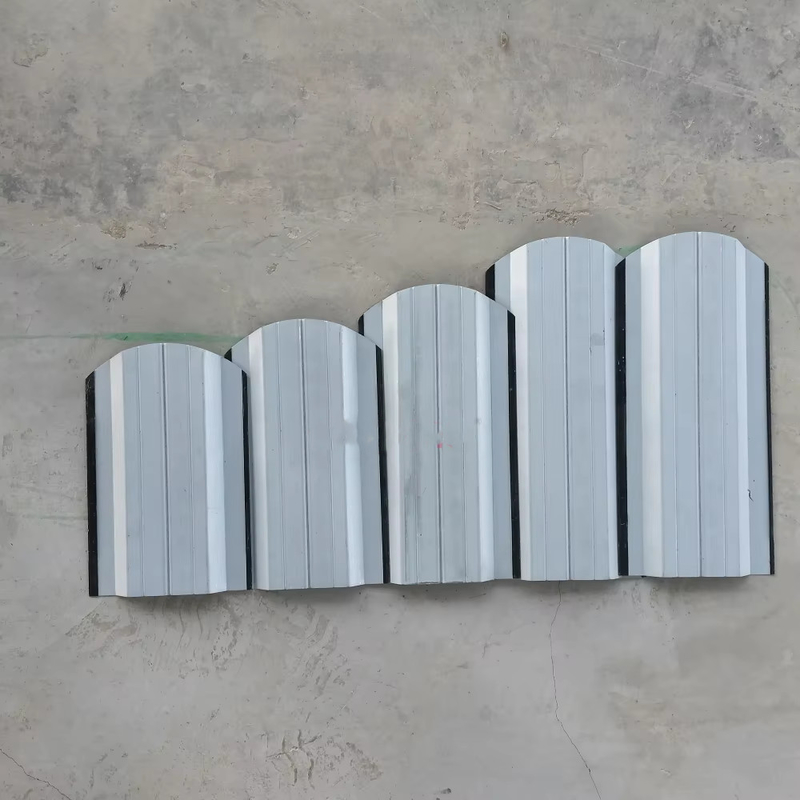

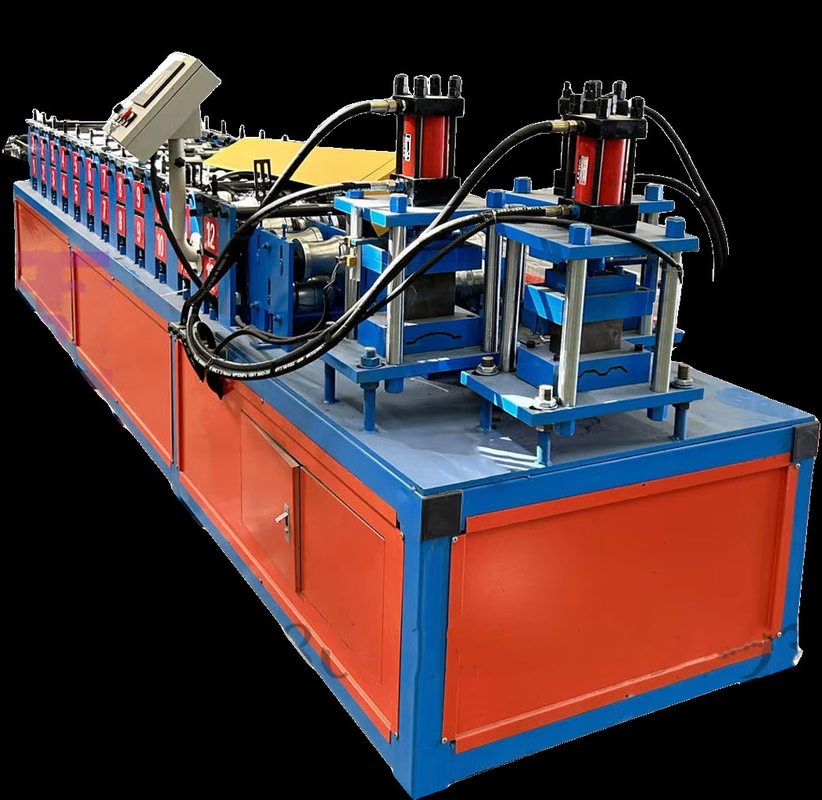

Metal Fence Column Product rolling forming machine is designed to make the peach Shape Post, metal fence post in batch fully automatically.Peach shaped column fence is a new product. It is popular in developed countries such as the US, Japan and Korea, and has big features. It is beautiful, generous, limited by terrain and easy to install. It adopts high quality processing technology, and the surface of galvanized steel is treated with high adhesion and spray. At any height of the column, inserting the mesh into the predesigned grooves is a while that can not be disassembled by the fence. Fast propulsion installation, no need for any accessories for various types.

Specification
item
value
Type
Metal Fence Roll Forming Machine
Use
Metal Fence
Production Capacity
20M/MIN
Voltage
380v/220V/415V
Rolling thinckness
0.3-0.8mm
Feeding width
100-330
Raw material
Steel Coil GI PPGI
Cutting
Hydraulic Guide Pillar
Roller material
Cr12Mov
Shaft material
45# steel
Shaft diameter
80MM
Motor
7.5KW
Machine frame
350H beam
Frame thickness
16mm, middle plate frame
Forming Speed
10-15m/min
Dimension(L*W*H)
5800x900X1500
Weight
1800kg

Galvanized Steel Metal Fence Panel Palisade Fencing Machine Dura Fence Metal For 3 In 1 Machine 0
2.Workflow



Decoiler--Roll Forming--PLC System--Hydraulic System--Cutting--Output Table



WHY CHOOSE US:


♥ Over 20 years of experience. ♥ Customized according to customer requirements with OEM ODE Services.
♥ Favorable price and easy operation.
♥ For many years, we have always adhered to quality first and service foremost, and have developed high-quality agents in Chile,
Brazil, the Philippines, Malaysia, India, and other countries
♥ Professional technical team strictly controls every step of production to ensure the quality of each equipment. ♥ Provide
technical guidance, production, installation, commissioning and maintenance services for our customers.


We are online 24 hours a day, and welcome friends from all over the world to consult at any time to obtain more discounts.



Galvanized Steel Metal Fence Panel Palisade Fencing Machine Dura Fence Metal For 3 In 1 Machine 1
