high speed Roofing Sheets crimping bending Roll Forming Machine

high speed Roofing Sheets crimping bending Roll Forming Machine

उत्पत्ति के प्लेस:

चीन (महाद्वीप

ब्रांड नाम:

CANGZHOU FMS

प्रमाणन:

ISO CE

मॉडल संख्या:

घुमावदार मेहराबदार छत

हमसे संपर्क करें
उद्धरण मांगें
उत्पाद विवरण
प्रोडक्ट का नाम:
छत शीट आर्क केम्बर कर्विंग रोल बनाने की मशीन हाइड्रोलिक
कच्चा माल:
पीपीजीएल, जीएल, पीपीजीआई, जीआई,
आयाम(एल*डब्ल्यू*एच):
2050*1500*1300
वज़न:
4 टन
शाफ्ट सामग्री:
45# स्टील बाहरी व्यास: 70 मिमी
खिला चौड़ाई:
925 मिमी
नियंत्रण प्रणाली:
पीएलसी
वोल्टेज:
220V/380V/440V
भुगतान और शिपिंग शर्तें
न्यूनतम आदेश मात्रा
1 सेट
मूल्य
negotiable
पैकेजिंग विवरण
20' एफएलसी
प्रसव के समय
30 कार्य दिवस
भुगतान शर्तें
एल/सी, टी/टी, डी/ए, डी/पी
आपूर्ति की क्षमता
प्रति माह 40 सेट
संबंधित उत्पाद
अच्छा दाम Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line ऑनलाइन वीडियो

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine ऑनलाइन वीडियो

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw ऑनलाइन वीडियो

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine ऑनलाइन वीडियो

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

सबसे अच्छी कीमत प्राप्त करें
हमसे संपर्क करें
86-317-2016816
अब संपर्क करें
उत्पाद वर्णन

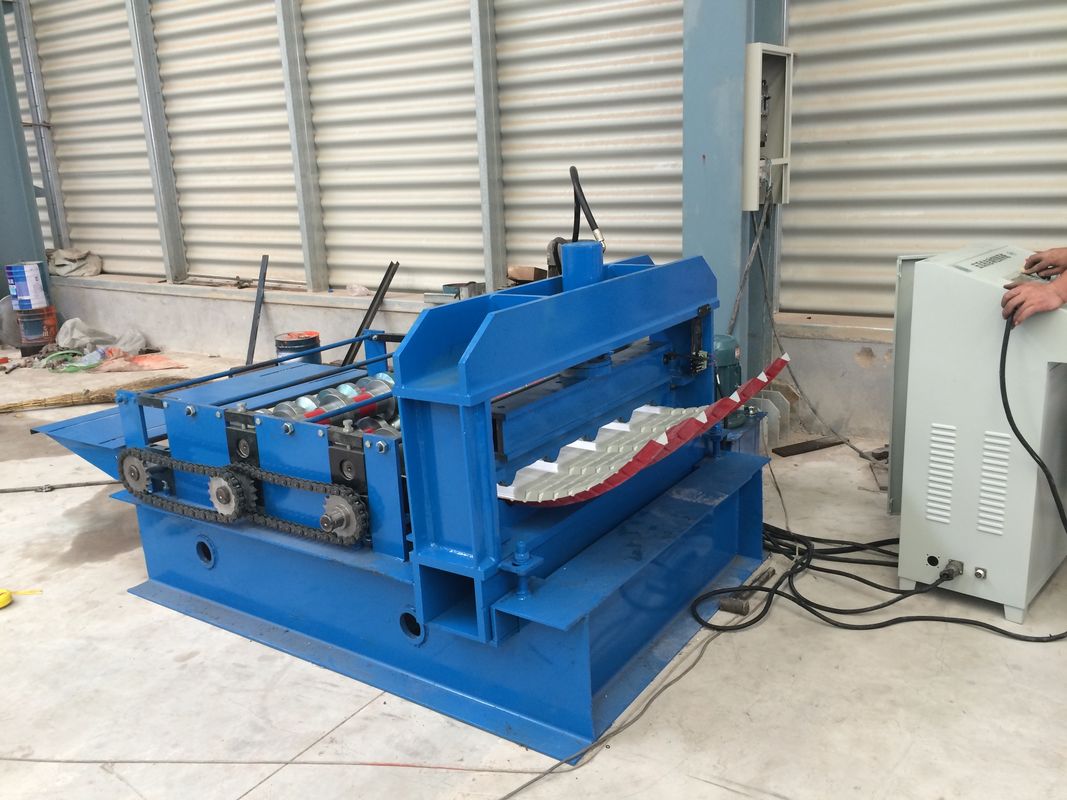

Roofing Sheets Arch Camber Curving Roll Forming Machine Hydraulic



1. Famous Brand, quality is guaranteed.

2. Full Automatic Computer Control make easy to operation.

3. Machine roller and shaft is produced by exact demands and control . The roller material processing method is by CR12 MOV heat treatment 58℃-62 . The product quality is durable and long service life .

Specification


Weight 4Tons
Frame Material 350H Steel
Side Panel Of Machine 16mm

Color



All colors(standard international color)or (Customized)

Rollers



5 rollers
Roller material 45# steel Cr12 Mov HRC 58-62

Diameter Of The Shaft

Φ70mm
Drive Mode Chain Wheel and Cycle Chain Length:1 Inch
Productivity 10-15m/min
Voltage 380V 50Hz 3phases(Can be customized according to local voltage)



Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received
