उत्पत्ति के प्लेस:
चीन (महाद्वीप
ब्रांड नाम:

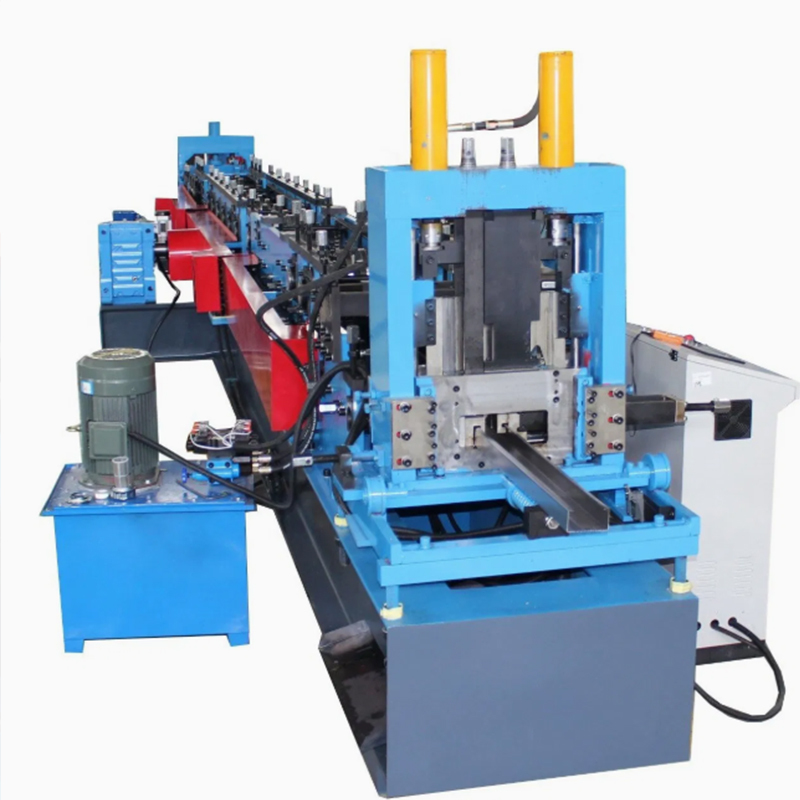

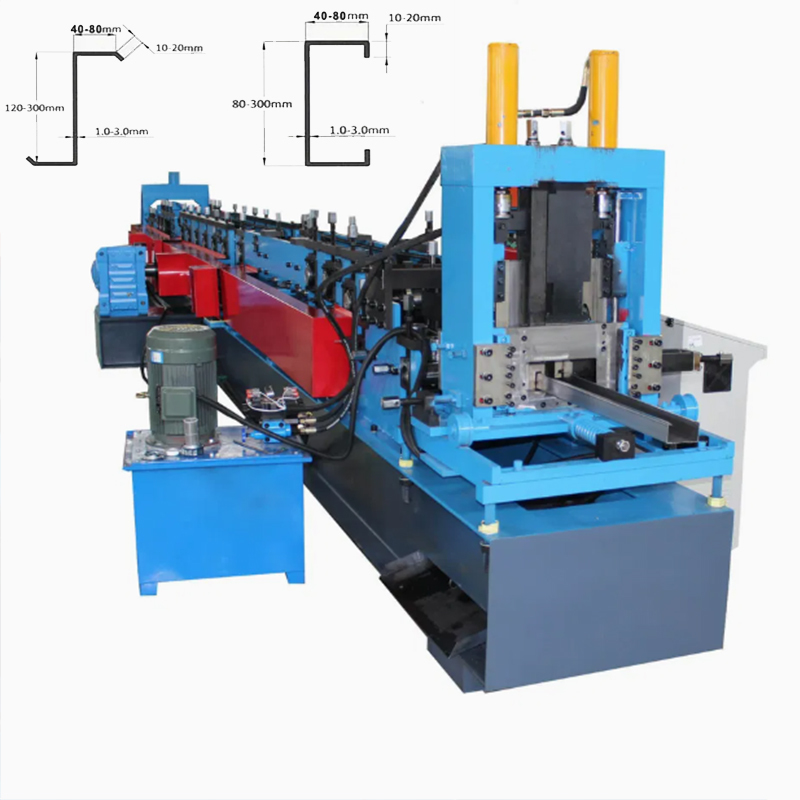

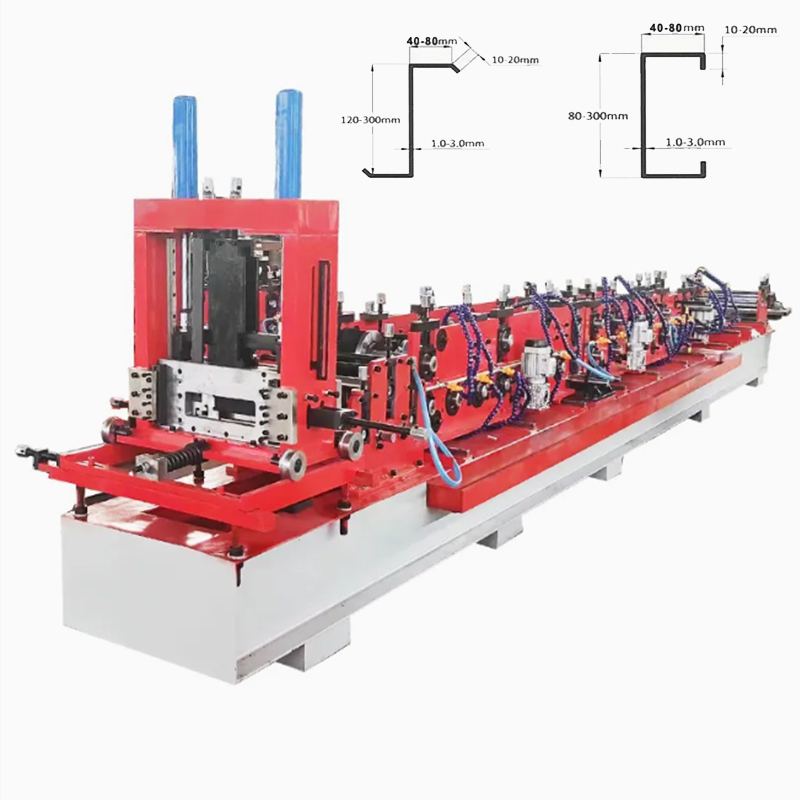

CZ Channel Manual Adjustable Purlin Roll Forming Machine
प्रमाणन:
ISO CE
मॉडल संख्या:
सीजेड
वीडियो
वीडियो
वीडियो
वीडियो
| No. | Item | Description |
|---|---|---|
| 1 | Coil | Galvanized |
| 2 | Material Thickness | 1 mm - 3.5 mm |
| 3 | Working Speed | 15-20 m/min (not including the cutting time) |
| 4 | Roller Station | 12-16 Raws |
| 5 | Dimension (L*W*H) | 7000 mm*1000 mm*1300 mm |
| 6 | Machine Weight | 4000 KG |
| 7 | Electrical Control System | Panasonic PLC |
| 8 | Drive Motor Power | 15KW |
| 9 | Hydraulic Station Power | 15 KW |
| 10 | Power Supply | 360V/60HZ/3PH |
| 11 | Cutting Accuracy | ±2 mm |
| 12 | Driving Mode | Single Chain 2 inch |
| 13 | Material of Shaft | 80 mm 45#steel forged |
| 14 | Material of Roller | 45# Steel Finish Machining, Plated Hard |
