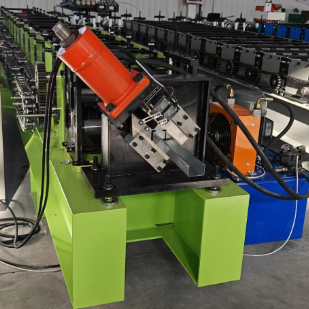

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

High Straight Level CZ Purlin Roll Forming Machine

Crush Resistance Automatic Purlin Roll Forming Machine

1.5-3MM Thickness Steel Purlin Roll Forming Machine

उत्पत्ति के प्लेस:

चीन

ब्रांड नाम:

FMS

प्रमाणन:

CE,ISO

हमसे संपर्क करें

उद्धरण मांगें

उत्पाद विवरण

वोल्टेज:

380V 50Hz 3Phase

वज़न:

8500 किग्रा

रोलर सामग्री:

45# स्टील क्रोम

मोटाई:

1.5-3 मिमी

कटिंग प्रकार:

हाइड्रोलिक कटिंग

नियंत्रण प्रणाली:

पीएलसी

प्रमुख विक्रय बिंदु:

स्वचालित

उत्पादन क्षमता:

30 मीटर/मिनट

मुख्य मोटर शक्ति:

7.5kW

प्रमुखता देना:

High Straight Level CZ Purlin Roll Forming Machine

Crush Resistance Automatic Purlin Roll Forming Machine

1.5-3MM Thickness Steel Purlin Roll Forming Machine

भुगतान और शिपिंग शर्तें

न्यूनतम आदेश मात्रा

1 सेट

मूल्य

negotiable

पैकेजिंग विवरण

मुख्य मशीन नग्न है, कंप्यूटर नियंत्रण बॉक्स प्लास्टिक से पैक किया गया है।

प्रसव के समय

30 दिन

भुगतान शर्तें

टी/टी, वेस्टर्न यूनियन, एल/सी

आपूर्ति की क्षमता

प्रति माह 20 सेट

संबंधित उत्पाद

वीडियो

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

सबसे अच्छी कीमत प्राप्त करें

वीडियो

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

सबसे अच्छी कीमत प्राप्त करें

वीडियो

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

सबसे अच्छी कीमत प्राप्त करें

वीडियो

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

सबसे अच्छी कीमत प्राप्त करें

हमसे संपर्क करें

86-317-2016816

अब संपर्क करें

उत्पाद वर्णन

Full Automatic Strip Steel C/Z/U Purlin Roll Forming Machine

Product Advantages

Our C/Z purlin interchangeable roll forming machine offers superior performance compared to competitors:

Produces purlins with exceptional straightness and crush resistance
Enables reverse lap capability for Z purlins, enhancing connection strength
Precision control via reduced motor and frequency regulation for speed, length, and positioning
Quick and easy interchangeability between C and Z profiles

Purlins are essential structural components in roofing systems, supporting rafters and roof beams. Our machine produces lightweight steel purlins that perfectly meet roof structure requirements while maintaining strength and durability.

Applications: Ideal for medium-sized industrial and civil construction projects including factories, warehouses, aircraft hangars, exhibition halls, theaters, stadiums, and commercial buildings as primary load-bearing structures.

Technical Specifications

Main motor power	7.5kw
Hydraulic motor power	4kw
Hydraulic Pressure	10-12MPa
Voltage	380V/50HZ/3Phase
Control System	PLC (Delta brand)
Feeding Material	Galvanized steel
Feeding Thickness	1.5-4.0mm
Speed	30-50m/min
Roller station	18 rows
Shaft diameter	80mm
Shaft material	45# steel
Roller material	45# steel
Cutter material	Cr12 quenched
Dimension	1100012001500mm
Weight	about 6700 kg

Warranty & Guarantee

1-year guarantee against manufacturing defects (excluding electrical components)
Warranty void in cases of:
- Damage from natural disasters
- User error or improper operation
- Unauthorized modifications
- Damage during relocation after installation

Payment Terms

40% advance payment required
60% balance payment before shipment

Delivery Information

FOB: Tianjin Xingang Port
Delivery Time: 30 days after receiving down payment
