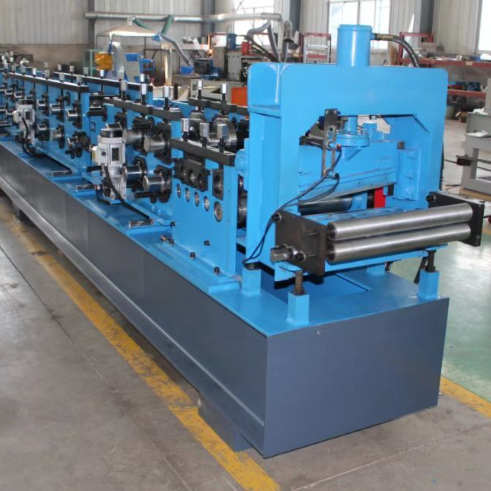

CZ Purlin Roll Forming Machine with 16 Roller Stations Automatic Fixed-Length Cutting and Hydraulic Station for High Efficiency

16 Roller Stations CZ Purlin Roll Forming Machine

Automatic Fixed-Length Cutting Omega Hat-Shaped Purlin Machine

Hydraulic Station C Panel Forming Machine

उत्पत्ति के प्लेस:

चीन (महाद्वीप

ब्रांड नाम:

FMS

प्रमाणन:

ISO CE

हमसे संपर्क करें

उद्धरण मांगें

उत्पाद विवरण

प्रोडक्ट का नाम:

दीन रेल रोल बनाने की मशीन ओमेगा प्रोफ़ाइल स्टड बनाने की मशीन

कच्चा माल:

पीपीजीआई，जस्ती

रफ़्तार:

8-15 मी/मिनट

द्रव्य का गाढ़ापन:

1 मिमी - 3 मिमी

वज़न:

9 टन

गारंटी:

1 वर्ष

शक्ति:

15kw

नियंत्रण प्रणाली:

पीएलसी

प्रमुखता देना:

16 Roller Stations CZ Purlin Roll Forming Machine

Automatic Fixed-Length Cutting Omega Hat-Shaped Purlin Machine

Hydraulic Station C Panel Forming Machine

भुगतान और शिपिंग शर्तें

न्यूनतम आदेश मात्रा

1 सेट

मूल्य

negotiable

पैकेजिंग विवरण

40' एफएलसी

प्रसव के समय

30 कार्य दिवस

भुगतान शर्तें

एल/सी, टी/टी, डी/ए, डी/पी

आपूर्ति की क्षमता

प्रति माह 20 सेट

संबंधित उत्पाद

वीडियो

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

सबसे अच्छी कीमत प्राप्त करें

वीडियो

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

सबसे अच्छी कीमत प्राप्त करें

वीडियो

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

सबसे अच्छी कीमत प्राप्त करें

वीडियो

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

सबसे अच्छी कीमत प्राप्त करें

हमसे संपर्क करें

86-317-2016816

अब संपर्क करें

उत्पाद वर्णन

Steel C/Z Purlins Machine - C/Z Purlin Forming Machine - C Panel Forming Machine

The Omega hat-shaped steel purlin forming machine is a complete system consisting of passive unwinding rack, unwinding rack base, feed introduction platform, leveling device, forming host, punching device, forming and cutting device, hydraulic station, and computer control cabinet.

The machine produces hat-shaped purlins with excellent bending and compression resistance, superior flatness, and features automatic fixed-length cutting and punching. Its high automation level ensures quick and convenient installation.

Technical Specifications

No.	Item	Description
1	Coil	Galvanized
2	Material Thickness	1 mm - 3 mm
3	Working Speed	8-15m/min (excluding cutting time)
4	Roller Station	16 Rows
5	Dimension	650013001200 mm
6	Machine Weight	8000 KG
7	Electrical Control System	PLC
8	Drive Motor Power	15KW
9	Hydraulic Station Power	15 KW
10	Power Supply	380V, 60HZ, 3 PHASES (customizable)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 2 inch
13	Material of Shaft	80 mm 45# steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Applications

The hat-shaped steel purlin forming machine serves as the primary stress structure for large and medium-sized industrial and civil buildings. It's used for:

Creating non-load-bearing walls and roof decorations with plasterboard, gypsum board, and other lightweight materials
Constructing various decorative building roof shapes
Forming interior and exterior building walls and ceiling scaffolding base materials

The products are ideal for hotels, theaters, shopping malls, factories, office buildings, renovation projects, interior decoration settings, and various roof applications.

Key Advantages

Automatic control software for production information management
Simple operation and easy maintenance
Quick mechanical debugging and mold replacement
Highly integrated network automation system for superior performance
