Name: EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: सैंडविच पैनल रोल बनाने की मशीन
Price: 40,500.00 USD
Availability: InStock

घर > उत्पादों > सैंडविच पैनल रोल बनाने की मशीन >

EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine

EPS rock wool sandwich panel machine

roof sheet roll forming machine

sandwich panel roll forming machine with warranty

उत्पत्ति के प्लेस:

चीन

ब्रांड नाम:

FMS

प्रमाणन:

मॉडल संख्या:

सैंडविच पैनल रोल बनाने की मशीन

हमसे संपर्क करें

उद्धरण मांगें

उत्पाद विवरण

दस्ता का व्यास:

70 मिमी या आपकी आवश्यकता के अनुसार

शाफ्ट की सामग्री:

उच्च ग्रेड 45# जाली स्टील

काटने का ब्लेड:

शमन उपचार के साथ CR12 मोल्ड स्टील

गठन की गति:

8-15 मी/मिनट

ब्लेड सामग्री काटना:

Cr12MOV, हीट ट्रीटमेंट

बिजली की आपूर्ति:

380V, 3 चरण, 50Hz

दस्ता सामग्री:

उच्च ग्रेड 45# स्टील, व्यास 70 मिमी

मोटाई:

0.3-0.8 मिमी

कदम बनाना:

11 स्टेशन

शक्ति:

5.5 kw

सामग्री की चौड़ाई:

1200 मिमी

प्रमुखता देना:

EPS rock wool sandwich panel machine

roof sheet roll forming machine

sandwich panel roll forming machine with warranty

भुगतान और शिपिंग शर्तें

न्यूनतम आदेश मात्रा

1 सेट

मूल्य

negotiable

पैकेजिंग विवरण

प्लास्टिक फिल्म से नग्न.

प्रसव के समय

45 विश्व दिवस

भुगतान शर्तें

टी/टी, एल/सी

आपूर्ति की क्षमता

प्रति माह 20 सेट

संबंधित उत्पाद

वीडियो

Auto Sandwich Panel Production Line/PU Foam Sandwich Wall Panel Making Machine

सबसे अच्छी कीमत प्राप्त करें

वीडियो

EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine

सबसे अच्छी कीमत प्राप्त करें

50-300 Thickness Sandwich Panel Roll Forming Machine with Lichao Motor and 32KW Hydraulic Motor Power

सबसे अच्छी कीमत प्राप्त करें

Mode EPS Sandwich Panel Line for 50-300 Thickness Production Customization

सबसे अच्छी कीमत प्राप्त करें

हमसे संपर्क करें

अब संपर्क करें

उत्पाद वर्णन

EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine

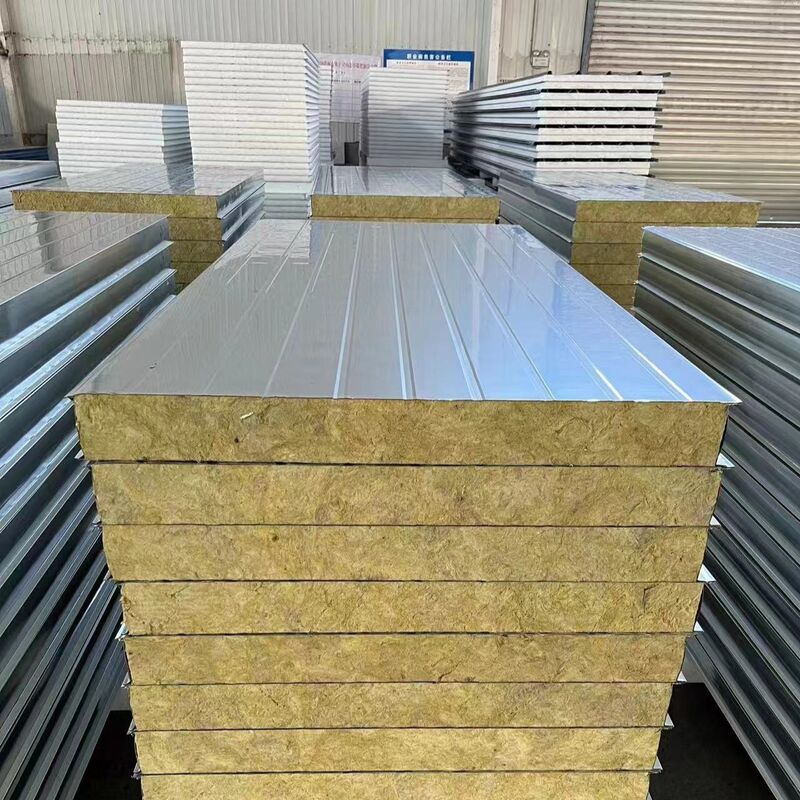

The Sandwich Panel Roll Forming Machine Production Line is specialized equipment designed for manufacturing EPS rock wool composite boards. These composite boards are widely used as building insulation materials for walls, roofs, and floors, providing excellent thermal insulation properties.

Main Functions

EPS board processing: cutting and trimming operations
Rock wool processing: cutting and precise paving
Composite bonding: hot pressing or cold pressing to bond EPS board and rock wool
Final molding: forming composite boards to meet required specifications

Equipment Composition

EPS board processing unit: handles cutting and trimming of EPS boards
Rock wool processing unit: manages cutting and paving of rock wool
Composite unit: bonds EPS board and rock wool together
Molding unit: ensures composite boards meet dimensional specifications
Control system: automated control of the entire production process

Technical Specifications

Material of Shaft	70 mm 45# steel forged
Material Thickness	0.3-0.8 mm
Working Speed	8-15 m/min
Main Motor Power	7.5 KW
Electrical Hydraulic Station Power	4 KW
Hydraulic Station Pressure	12.0 Mpa
Roller Station	11/17 Rows

Warranty & Guarantee

Guaranteed against malfunctions due to manufacturing defects for 1 year after date of purchase (excluding electrical parts).

Repairs will not be performed during the guarantee period in the following circumstances:

Damage occurs due to natural disaster
Malfunction occurs due to user error
Malfunction occurs due to modifications
Malfunction occurs due to movement or shipment after installation

Payment Terms

40% in advance as down payment
60% paid before shipment processing

Delivery Information

FOB: Tianjin Xingang Port
Delivery Time: 65 days after down payment receipt

Frequently Asked Questions

Does one machine produce only one style panel profile?

Not exactly. For wider and double layer making machines, they can produce more than 6 different types of panels.

What support do you provide if the machine breaks down?

Our machines include a 12-month warranty period. If broken parts cannot be repaired, we will send replacement parts (customer pays express costs). After warranty period, we provide technical support for the equipment's entire lifespan through negotiated solutions.

Can you handle transportation?

Yes, please provide your destination port or address. We have extensive experience in transportation logistics.

Are you a manufacturer or trading company?

We operate as both manufacturer and trading company.

Do you provide custom solutions?

Yes, we can design machines according to your specific requirements and profile drawings. Our engineers provide professional solutions for worldwide clients.

How can I verify machine testing before shipping?

We provide recorded testing videos for your reference, or we welcome you to visit our factory and test the machine personally.
